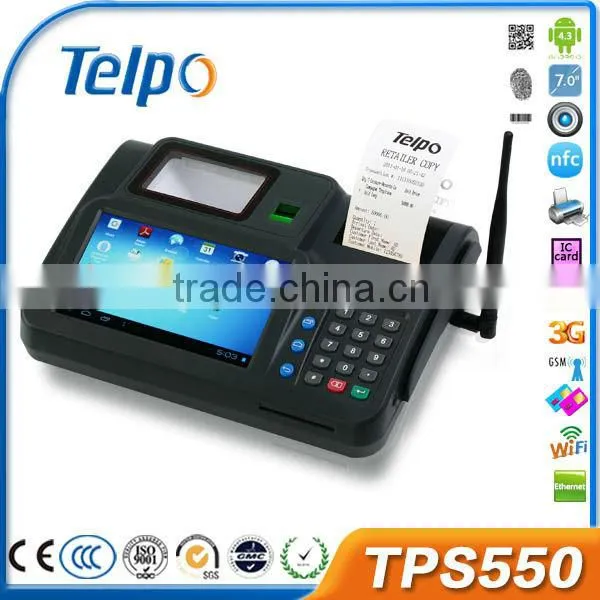

TPS550 with camera, 1D/2D Barcode Scanner, Finger Print Scanner android wifi android pos device for lottery

Processor

A9,  CPU1.2GHz    android pos

Memory

1GB RAM, 8GB FLASH, Ext. TF(micro SD) card   android pos

OS

Android 4.2

Display

7’, TFT 800*480    android pos

TFT1024*600(Optional)

Keypad

12 alphanumeric keys, 7 function keys

Battery

Lithium Polymer rechargeable battery    android pos
7.4V, 2200mA, Li-ion.

7.4V, 2500mA, Li-ion(Optional)   android pos

Power Supply

Input:100-240VAC, 50Hz/60Hz,1.0A;output:12VDC, 2A

Dimensions(mm)

290(L)×219(W)×85(H)

Weight

1500g

Certification

CE

Card Reader

Magnetic card reader, Track 1/2/3, bi-directional swipe, ISO7810, ISO7811, ISO7812(Optional)

Smart card reader, ISO 7816(Optional)   android pos

Contactless card reader, ISO14443 Type A/B, Mifare®(Optional)

SAM Slots: 2 SAM Slots, ISO7816

(Optional)

SIM Slots

Single SIM

Dual SIM(Optional)

Communications

GPRS/ Ethernet
WiFi/3G/4G/CDMA1x/Dial-Up(Optional)   android pos

Peripheral Ports

2 USB Host, 1 mini USB(OTG) , 1 RJ45

Optional: RJ11,  PS2, DB9(Optional)

Buzzer single tone beeper

Support

Digital Audiosynthesizer with built-in speaker

Support   android pos

Built-in Fingerprint Module

(Optional)

Built-in Camera (5 MP, Barcode reader 1D/2D)

(Optional)   android pos

Certificate camera(5MP, Take certificate photo for person)

(Optional)

Printer

Thermal graphic printer   android pos

Speed

18 lines/sec   android pos

Print paper width

58mm    android pos

Working Environment:

Temperature:0°C~50°C; R.H.:  10%~90% (non-condensing)

Storage Environment:

Temperature:-20°C~70°C;  R.H.:  5%~95% (non-condensing)

Q1. How to check the software version

  A: Turn on the device, it will show the software version  number on the screen during startup.

Q2. How to enter factory test mode

  A: (1) For some old version, when the device is under standby state, click keys *#55#, it will enter factory test mode

      (2) For new version, after press power on key, when the device is in startup, click the key “Cancel”.

      It will show “Factory Mode”, then input keys *#55#, and click key “Menu”, then it will enter factory test mode.

      In factory test mode, you can test lots of hardware function such as test printing, test keypad, test LCD, test GPRS connection, test SMS and so on.

Q3. Can not Turn On

  A: Check the power adapter, or try to change another workable power adapter.

      Check the battery, or try to change another normal battery.

Remove the battery, and only connect the power adapter. Or only use battery, and do not connect power adapter to test it. Then check the Power Supply Circuit and switch on/off the circuit according the test result.

      If the circuit has no problem, and it still can not turn on, please try to discharge.

Q4. Can not detect the SIM CARD

  A: Please check whether the SIM card is installed well.

      Install the SIM CARD again.

      Change another SIM card

      Scrape the surface of the metal spring in the SIM CARD slot with knife.

      Check whether all the weld point of the SIM CARD slot is welded well or not.. If not, please weld it again.

      Replace the part of the SIM CARD slot.
