CZ9300 acceleration sensor calibration
Overview

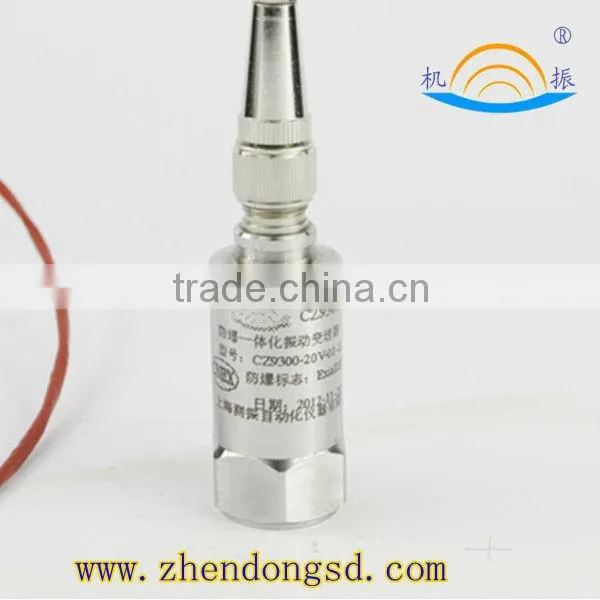

CZ9300 is our latest developed micro-transmitter with a small and exquisite appearance. The integrated chassis vibration transmitter consists of piezoelectric
sensing element with measurement, conversion, integral, amplification, transmission and other major circuits, all the indicators accord with standards of “ISO2954-1975" and " GB13824-1992".
1.Measuring range: 0--100mm/s
2.Output current: 4--20mA
3.Response frequency: 2HZ-4000HZ
4.Speed direction:from the bottom up the sensor ( forward direction)
5.Ambient temperature:-10°C--+70°C
6. Service voltage:12V--36V
7.Shell material:stainless steel
8.Weight: 110g
9.Mounting thread: M5, M10*1.5 thread or customized
10.Piezoelectric material :PZT-5
11.Output way: two wire
12.Accessories:
B. Temperature Curve

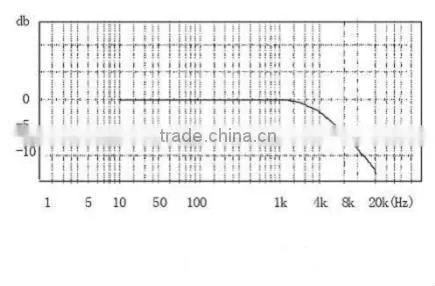

C. Frequency Response Curve
D. Dimension Parameters
Model selection
CZ9300-A()-B()-C()-D()-E()
A.Measurement type
01: vibration velocity
02: vibration acceleration
03: vibration displacement
B.Measuring range
01: 0-10mm/s
0-10g
0-100um
02:0-20mm/s
0-20g
0-200um
... ...
C. Mounting thread
01:M10*1.5
02:M10*1
03:M81.25
04: magnetic basis
05:special required
D.Cable length
01:1m
02:2m
03:3m
... ...
10:10m
E .Connection form

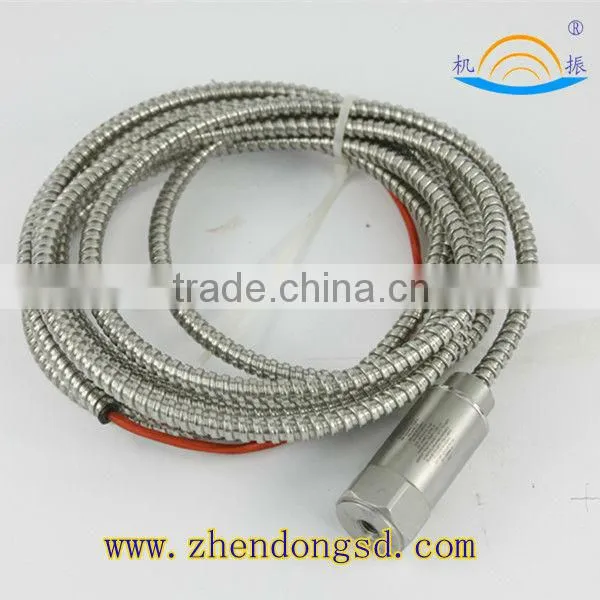

00(K): directly lead wire, K means armored
01: aviation plug,
