Full Hydraulic Piling Rig HF856A

Name: Full Hydraulic Piling Rig HF856A
Brand: HANF856A rotary drilling rig
SKU: 101808633
Availability: InStock

US$ 273,000 - 277,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Henan, China

Brand Name:

HANF856A rotary drilling rig

Zhengzhou Hanfa Imp & Exp Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Shanghai Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Henan, China

Brand Name HANF856A rotary drilling rig

Model Number HF856A rotary drilling rig

Weight 38000kg

Dimension(L*W*H) 18050mm*3200mm*7297mm

Certification CE Certificate

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Latest Excellent Quality Piling Rig

Application:

1.Adopting telescopic mast structrre which owns simple structure.

2.The shape axle bed structure is used to fax boom and link arm(+-shape).

3.Triangular structure between link arm and amplitude cylinder increases the machine stability.

Technology date:

Parameter Type		HF856A
Drilling diameter		600-1000mm
Max drilling depth		56mm
Overall measurement	Working dimentions	18050mm×3200mm×7297mm
Overall measurement	Transport dimentions	14727mm×3200mm×3325mm
Machine Weight		38000kg
Engine	Model	B5.9-C Cummins(USA)
	Rated power	112kw
	Type	Turbocharged direct-injection
Rotary drive	Max.torque	80kn·m
Rotary drive	Rotation speed	1-22rpm
Crowd cylinder	Max.push	150kn
	Max.pull	100kn
	Max.stroke	2000mm
Main winch	Max.line pull	120kn
	Max.line speed	70m/min
	Rope diameter	24mm
Auxiliary winch	Max.line pull	60kn
	Max.line speed	50m/min
	Rope diameter	18mm
Mast inclination	Free adjustment farwards/back wards	0-93°
Mast inclination	Free adjustment left/right	±3°
Electronic Management System	Long distance monitor system	Available
	Drilling record system	Available
	On car printer	Available
Chassis	Chassis modality	Customizable
	Max travel speed	2.0km/h
	Min ground clearance	500mm
	Track width	800mm
Hydraulic system pressure	300bar

Same series for your choice:

Model	Drilling diameter	Max drilling depth	Rotary drive torque, rotation speed	Engin type/rated power
HF850A	600-1600mm	46m	80kn·m,1-22rpm	B5.9-C Cummins/ 112KW
HF128A	600-1500mm	42m	50/102kn·m, 38/20rpm	B5.9-C Cummins/ 113KW

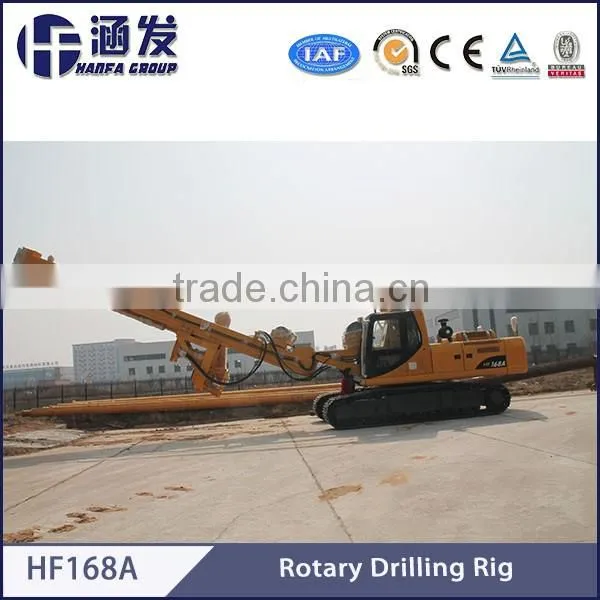

HF168A	600-1800mm	44/56m	80/165kn·m, 24/12rpm	B5.9-C Cummins/ 133KW
HF525	1400mm	25m	50kn·m,1-20rpm	B5.9-C Cummins/ 86KW
HF530	0-1200mm	30m	50/60kn·m,1-22rmp	B5.9-C Cummins/ 86KW,112KW
HF630A	300-1200mm	30m	55kn·m,0-22rpm	B5.9-C Cummins/ 86KW
HF320A	300-1200mm	20m	30kn·m,0-22rpm	B5.9-C Cummins/ 86KW
