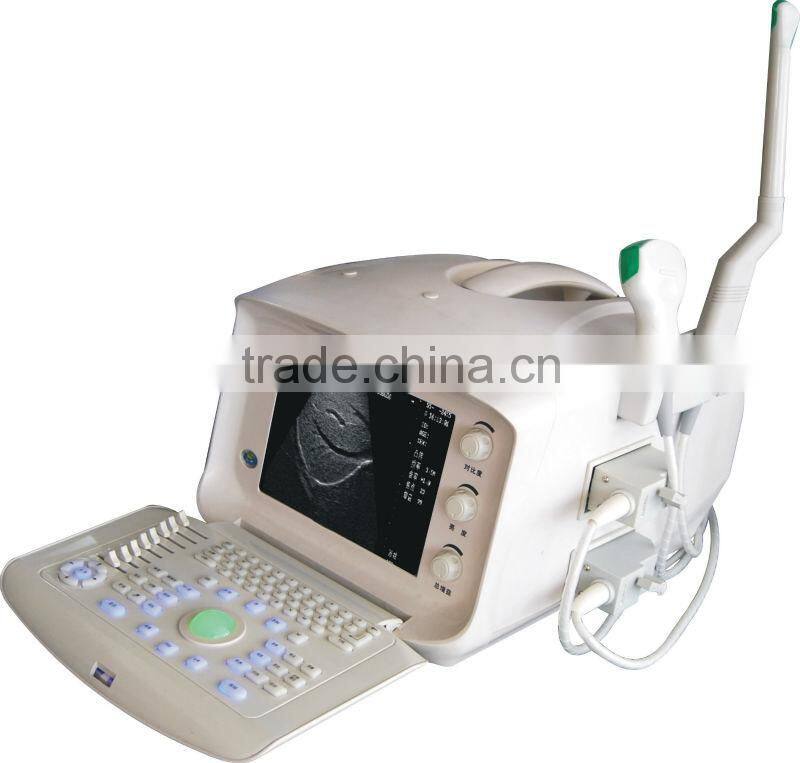

Digital Veterinary Scanner AJ-600VET

Specifications

1.Veterinary scanner
2.Display Format: B,B+B,4B,B+M,M
3.Image grey scale: 256 Stages
4.Size of monitor: 10 inches SVGA

Digital Veterinary Scanner AJ-600VET





General Description --- Veterinary Scanner

Scope of application: Canine, Equine, Bovine, Ovine and Swine

Display Format: B,B+B,4B,B+M,M

Image grey scale: 256 Stages

TGC adjustment: 8 stage TGC adjustment

Frequency Conversion: 2.5MHz ,3.5MHz ,4.5MHz ,5.0MHz, 5.5MHz, 6. 5MHz

7.5MHz, 8.5MHz,10.0MHz

Image magnification: ×1.0,×1.2,×1.5,×2.0

Measurement: distance, perimeter, area, volume, pregnant weeks etc. heart rate and slope under M mode

Cine Loop: uninterrupted replay or step forward/backward replay for 256 images

Focus: Electron focusing, free combination of focus

Detective depth: ≥190mm

Resolution: (vertical direction): ≤1mm (depth ≤130mm) ≤2mm(130mm<depth ≤160mm)

(cross direction) ≤3mm (depth ≤130mm) ≤4mm(130mm<depth ≤160mm)

Blind Zone: ≤4mm

Probes: Convex Array Probe, Linear Probe, Intra-cavity Probe

Image: Freezing, real time, selective enlargement, upwards/downwards and left/right turnover

Size of monitor: 10 inches SVGA Monitor

G/W:14KG





Standard Configuration	Options
Main unit with 10 inches SVGA Monitor	6.5MHz Intra-cavity probe
2.5/3.5/4.0/5.0MHz multi-frequency Convex Probe	7.5MHz linear superficial probe
8 TGC control	USB 2.0 port & 2Gb flash memory disk for image transfer
256 frames Cine loop memory
Pseudo Color Image output port (PAL-style)
B,2B, 4B, B/M, M display mode
Image zoom in & Partial Zoom
