ICU Bed / Electric Bed Multi Function Bed Nursing equipments hospital beds

Specifications

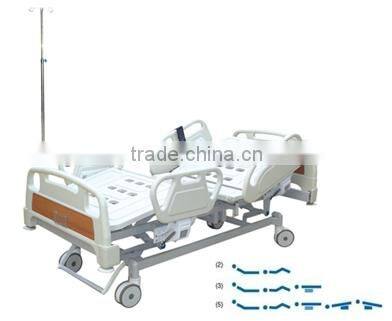

ICU Bed / Electric Bed Multi Function AJ001:
*with soft connection
*Material:ABS plastic
*2, 3, 5 functions for your choice

ICU Bed / Electric Bed Multi Function AJ001

*with soft connection
*Material:ABS plastic
*2, 3, 5 functions for your choice



The similar pictures:





Specifications



1. Electric bed with soft connection



2. The removable head and foot boards are made of ABS plastic



3. Integrated stamping Bed-Tops and frame are steel made with epoxy polyester powder coated and baked finish, resistant to chipping and scratching



4. Tuck-away guardrails protect patient even back and keen rest have been raised



5. Mounted on four 150mm diameter with central lockable system



6. The back rest can be lifted up from 0° to 80° (±5°), the leg rest can be lifted up from 0° to 45° (±5°), height adjustment 250mm, trendelenburg and reversed trendelenburg 12°, 2120*1020*500-750mm



7. Matched with I.V. Pole



8. 2, 3, 5 functions for your choice



2 Function: Back-rest lifting, Leg-rest lifting;



3 Function: Back-rest lifting, Leg-rest lifting, Height adjustment;



5 Function: Back-rest lifting, Leg-rest lifting, Height adjustment, Trendelenburg and Reversed Trendelenburg.

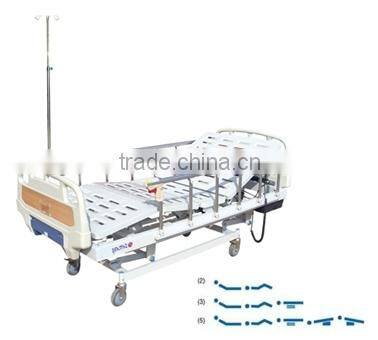

ICU Bed / Electric Bed Multi Function AJ004





Specifications



1. Electric bed with I.V. Pole, powder coated steel frame



2. The removable headboards are made of ABS plastic



3. Integrated stamping Bed-Tops and frame are steel made with epoxy polyester powder coated & baked finish, resistant to chipping and scratching



4. 6-stuff aluminum alloy guardrail protect patient even back and keen rest have been raised



5. Mounted on four 125mm diameter with brake



6. The back panel can be lifted up from 0° to 80° (±5°), the foot panel can be lifted up from 0° to 45° (±5°), height adjustment 250mm, trendelenburg and reversed trendelenburg 12°, 2120*980*500-750mm



7. Matched with I.V. Pole



8. 2, 3, 5 functions for your choice



2 Function: Back-rest lifting, Leg-rest lifting;



3 Function: Back-rest lifting, Leg-rest lifting, Height adjustment;



5 Function: Back-rest lifting, Leg-rest lifting, Height adjustment, Trendelenburg and Reversed Trendelenburg.

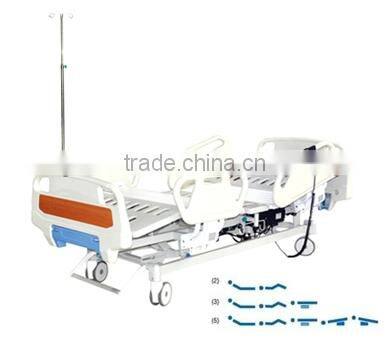

ICU Bed / Electric Bed Multi Function AJ006





Specifications



1. Electric bed with I.V. Pole and urine hook



2. The removable head and foot boards are made of ABS



3. Integrated stamping Bed frame is steel made with epoxy polyester powder coated and baked finish, resistant to chipping and scratching; Bed surface is ABS material



4. ABS 4-piece tuck-away guardrails protect patient even back and keen rest have been raised



5. Mounted on 4*150mm castors, with central lockable system



6. Functions:



   The back rest can be lifted up from 0° to 80° (±5°);



   The leg rest can be lifted up from 0° to 45° (±5°);



   Height adjustment 250mm;



   Trendelenburg and reversed trendelenburg 12°.



   Dimension: 2080*1020*500-750mm



7. Matched with I.V. Pole



8. 2, 3, 5 functions for your choice



2 Function: Back-rest lifting, Leg-rest lifting;



3 Function: Back-rest lifting, Leg-rest lifting, Height adjustment;



5 Function: Back-rest lifting, Leg-rest lifting, Height adjustment, Trendelenburg and Reversed Trendelenburg.
