Dental endo motor root canal unit with CE

China Supplier Endo With Apex Locator

Endo motor with big screen and foot pedal

Endo motor or rotary machine
9 program (you can save 9 program than no need you adjust the information when you use it  , Auto reverse  , reverse function (forward & reward) , and gear function
Speed from 100 to 650
Torque from 0.6 to 5.2
Gear function, for HP program, 1  to 1 , 4  to 1  , 10  to 1 , 16  to 1 , 20  to 1

Component Srructure

1.Main Unit

2.Motor Handpiece

3.Foot pedal (Options)

4.Charger

5.Holder for Motor handpiece

Details of  Display on the main unit.

1FWD/REV: The rotation state: Forward or Reverse.

2.Auto recerse mode: Including three mode: automatic stop, automatic reverse,

automatic forward after Peverse.

3.Beeping suond: It will be activate when the file reverse to avoid the resistance.

4.Battery status: prompted the state of battery.

5.SPEED: Showes the rotate of battery., ranging from 100-650rpm

6.TORQUE: Showes the torque at present working condition, ranging from 10.6-5.2 Ncm

7.PRIGRAM:The function working at present.

8.GEAR:showes the gear ratio.

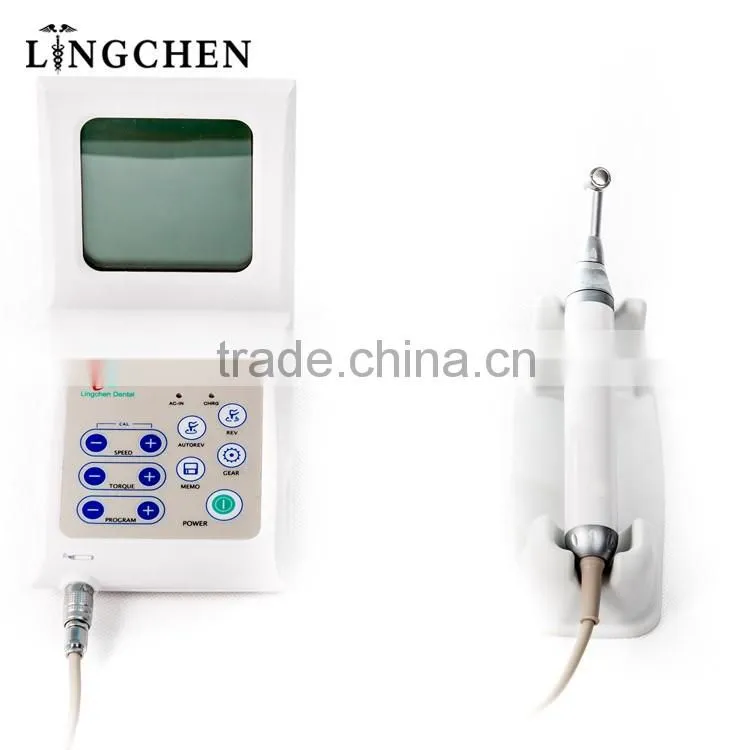

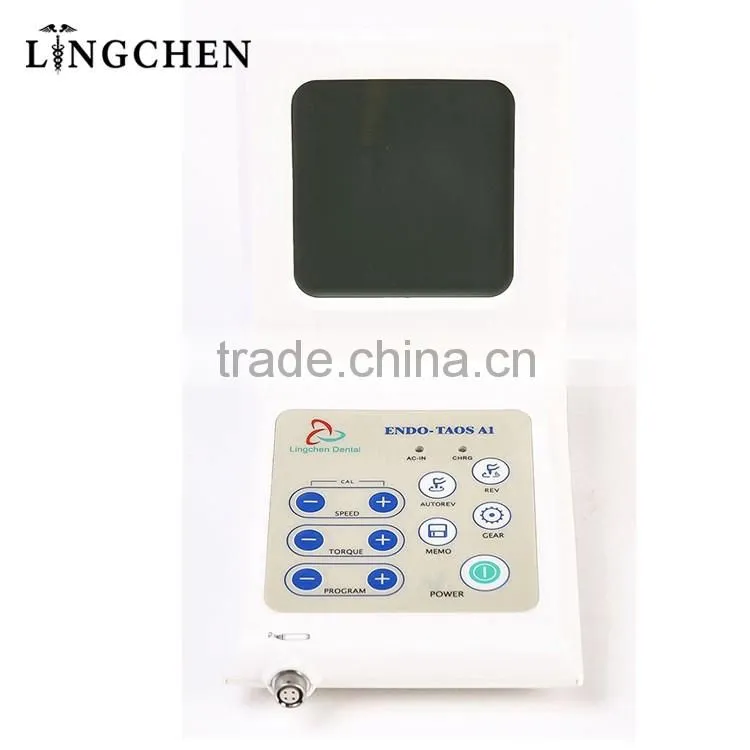

Details of control panel

1.CHRG: The charger indicator. When it is charging, the light is yellow.  When finished, it

turns to green.

2.AC-In: The Indicator of A.C input . When the equipment is working at the condition of A.C,

the light turns green.

3.Autorev:Auto reverse function for choosing. three modes: automatic stop, automatic

reverse, automatic forward after reverse.

4.POWER Button.

5.REV: Press for reverse, press once again forward.

6.GEAR: the best is 16:1

7.MEMO: Fuctions for memory, to save the 9 fuctions.

8.SPEED: Rotate Speed adjust.

9.TORQUE: Torque adjust. Attention, each file has its own suitable range of torque.

Press Tprque”+”key once, speed will increase 0.1 Ncm every time

Press Torque “-” key once, speed will increase 0.1 Ncm EVERY TIME

10.PROGRAM: Total 9 functions, please press”+” and “-” to choose

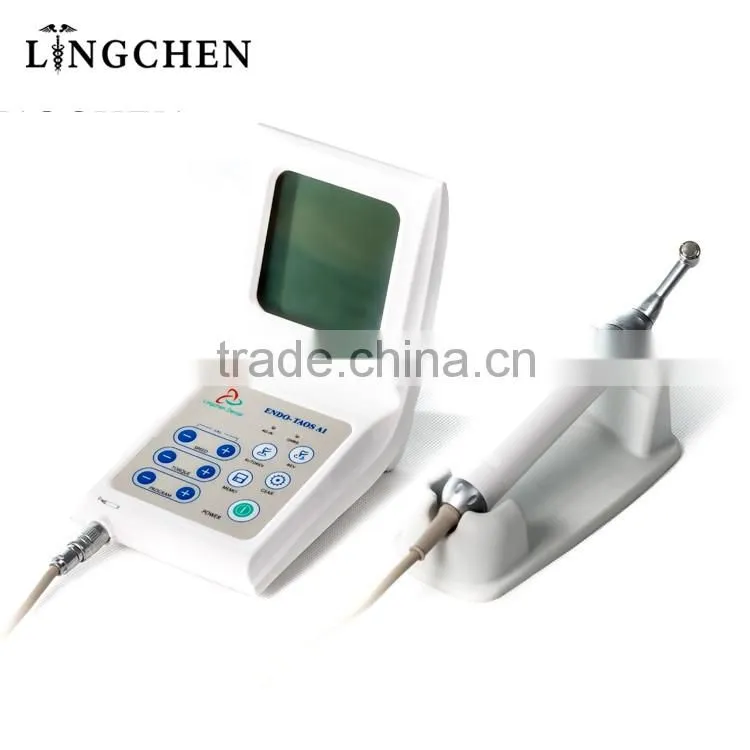

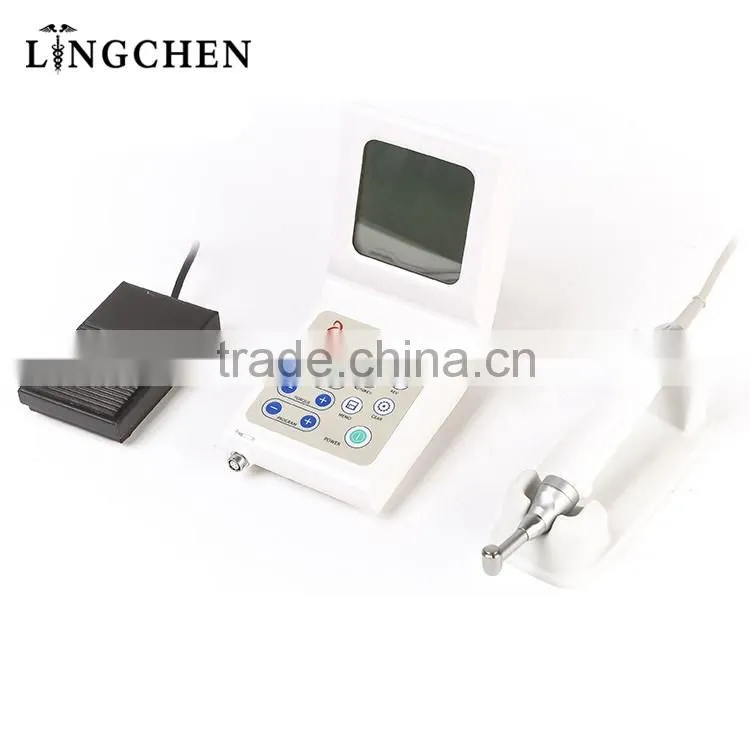

Product show:
