Home > Products > FG Series Freon Pressure Gauge > Freon Pressure Gauge With Rubber
Freon Pressure Gauge With Rubber
- Ningbo/shanghai
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Jiuzhou | |
| Model Number | FG63BP1 |
Product Description

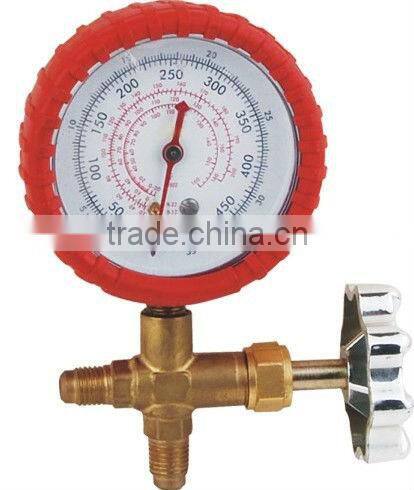

freon pressure gauge with rubber
BRIEF INTRODUCTION
Freon pressure gauge are used in refrigeration systems for testing. Oour dial features R-12, R-22 and R-502 or R-304 scale. Suitable for use on all freon service application, for example: refrigeration,refrigerant recovery and recycling,etc. Filled with damping liquid inside,the stainless stee freon prare suitabe for locations where the working environment shock largely.
DESCRIPTION
| 1).Nominal Size : | 63mm |
| 2).Pressure Range : | -1~0bar to 0~400bar |
| 3).Accuracy : | ±1%, ±1.6%, ±2.5% |
| 4).Working Temperature: | -20°c~60°c |
| 5). Case: | Blue or blue steel case |
| 6). Window: | Screw plastic window |
| 7). Bourdon tube : | Phosphor bronze , ≤ 60 bar: C-type > 60 bar: Helical type |
| 8). Connection: | Brass |
| 9).Movement: | Steel,Brass |
| 10).Dial: | Aluminium |
| 11). Pointer: | Aluminium ,black |
ORDERING INFORMATION
Model / Nominal size / Scale range / Connection size / Options
Note: The requirements can be customized
