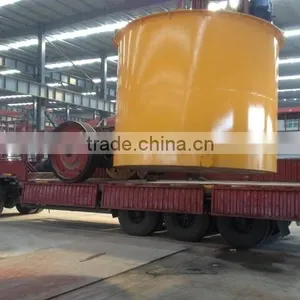

Chemical Mineral Mixer,concrete mixer

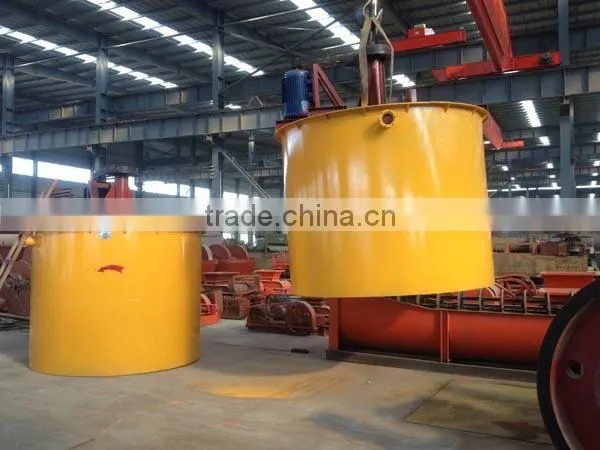

Introduction of Mineral Mixer
Mining mixer is used for mixing pulp before flotating separation work, which mixes the pulp with medicament sufficiently for mineral selection. The mixing tank can also used for mixing other non-metallic minerals. It is applied in the material with density not higher than 30% (calculated by weight) and fixed material size less than 1mm. It is flat-bottomed barrel with mechnical mixing method by radiant circular spiral impeller.
Application of Mineral Mixer
Mineral powder mixer is suitable to all kinds of metal ore, especially for the mixing before the ore dressing, which is just the full mixing of pharmaceutical and sufficiently slurry can also be the mixing of the other non metal material.
For the mineral powder mixer ,the using concentration cannot be greater than 30 %( by weight), and the particle size of the fixed component is less than 1mm. the form of it is the flat bottomed bucket radiation cycle with the spiral impeller mechanical agitation.
Features of Mineral Mixer :
1. Compact structure, good seal, and feed port settings the block gray board, to prevent the mist playing.
2. Stir mixing blades fanned when stirred media contact area.
3. In the mineral powder mixer , the nozzle row set, more water is uniform and can adjust.
4. Leftover ash and low settings box at the bottom of the watershed to ensure that the equipment no dead ends.
5. Mine mixing tube equipment advanced performance, the quality of the finished product is stable, stir rapid discharge.
Main technical parameters of Mineral Mixer :
he size of the internal groove |
Effective Volume
(m3)
|
Stirrer |
Motor |
Overall Diamension |
Weight
(Kg)
|
||||
|
Diameter
(mm)
|
Height
(mm)
|
Diameter
(mm)
|
Speed
(r/min)
|
Model |
Power
KW
|
The high
(mm)
|
Maximum length
(mm)
|
||
1000 |
1000 |
0.58 |
240 |
530 |
Y100L-6 |
1.5 |
1665 |
1300 |
685 |
1500 |
1500 |
2.2 |
400 |
320 |
Y132S-6 |
3 |
2386 |
1690 |
861 |
2000 |
2000 |
5.6 |
550 |
230 |
Y132ML-6 |
4 |
3046 |
2381 |
1240 |
2500 |
2500 |
11.2 |
625 |
230 |
Y160M-6 |
7.5 |
3546 |
2881 |
3462 |
3000 |
3000 |
19.1 |
700 |
210 |
Y200L2-8 |
22 |
4325 |
3266 |
4296 |

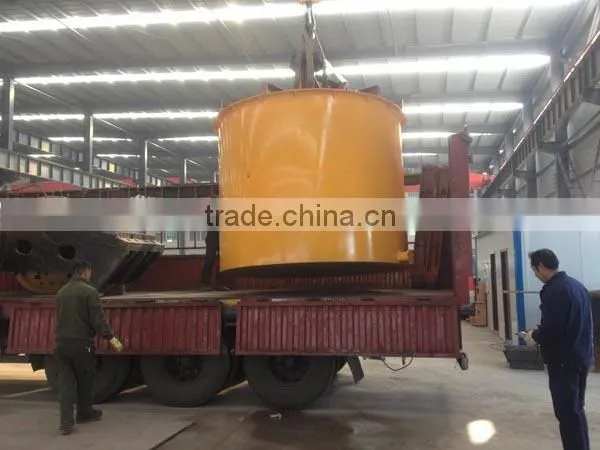

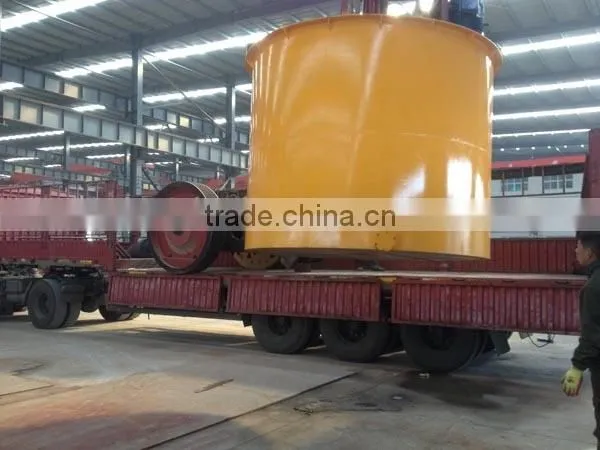

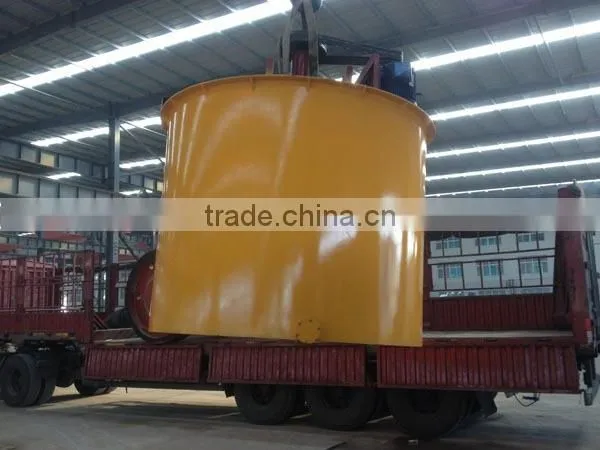

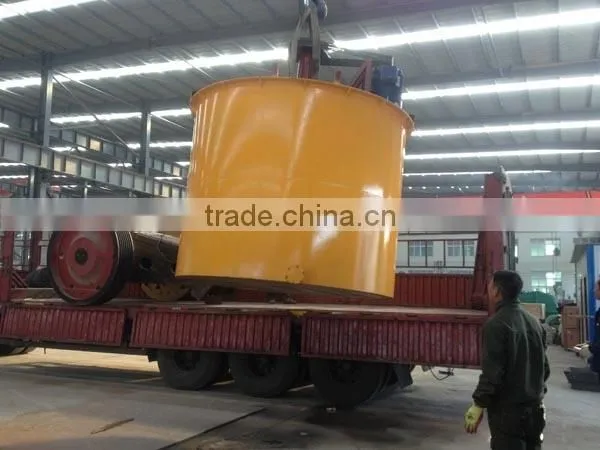

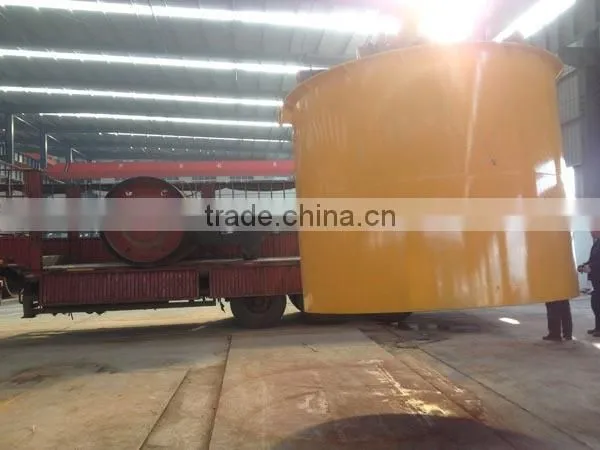

We have developed long and good relationship with many shipping agents. Ocean freight partners are: APL, COSCO, OOCL, CSCL, MSC, etc. and train shipping is also available. The perfect shipping way and best service with lowest price are always provided for customers.
(1) Installation and guidance When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client’s factory. Allowance is about 70USD per day
(2)Technical training We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
(3)Warranty
Three guarantees of our product quality, warranty for one year (not include man-made damaged). We will maintain the machine for free for the quality problem. If the damage is caused by your improperly operation, the cost of the maintenance burden by you. we also provide you the life-long follow-up service.
Zhengzhou Huahong Machinery Equipment Co., Ltd. is located in Zhengzhou National Hi-Tech Industrial Development Zone, Henan Province. Our company has passed ISO9001 international quality system certification. Our company has two industrial plants of 10,000 square meters and we have 200 sets of large and medium-sized processing, welding and assembly equipment, with the maximum lifting capacity of 150 tons.
Welcome to visit our factory anytime !!!
Please contact us for more details:
If you have any needs on our Mineral Mixer , please feel free to contact us by sending emails to us or through skype ! We will be very happy to provide our best prooduct and professional service for you! Thank you!
