Polyester Dryer Mesh-BW 03902

FOB Price

Negotiable / Square Meter

50 Square Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Supply Type	Make-to-Order	Material	polyester
Pattern	Plain Dyed	Style	Plain
Width	Other, order	Technics	Woven
Yarn Count	no	Weight	617g/㎡
Use	for dryer of paper making and nonwoven cloth forming	Place of Origin	Zhejiang, China
Brand Name	Huading	Model Number	BW 03902

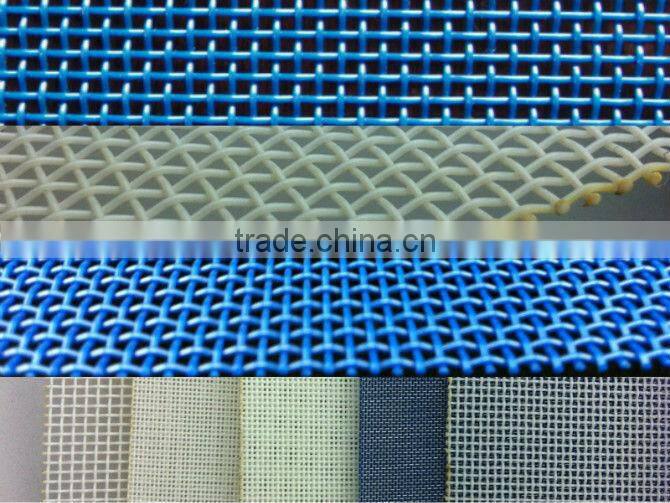

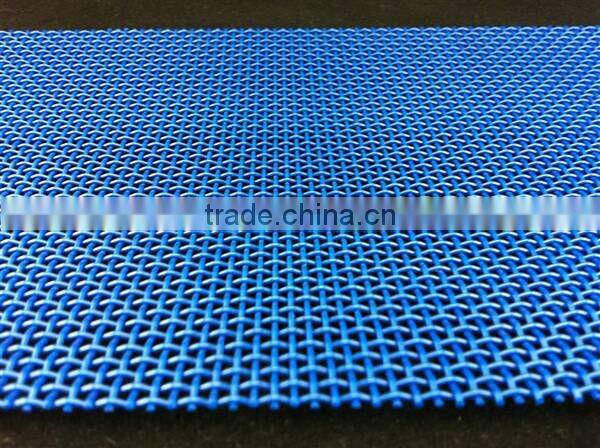

polyester mesh--BW 03902
High quality and competitive price
For dryer of paper-making

Polyester dryer fabics--BW 03902

Materials: Polyester

Diameter of warp:0.9mm

Diameter of weft:0.9mm

Density yarn/cm:warp:3±0.5

Density yarn/cm:weft:3±0.5

Opening(%):25

Mesh/inch:50

For dryer of paper-making, spunlaced nonwoven cloth forming, and sludge dewatering of environment protection.

type	Diameter(mm)		Density yarn(cm)		opening(%)	Mesh(inch)	aperture(mm)	usage
type	Warp	Weft	Warp	Weft	opening(%)	Mesh(inch)	aperture(mm)	usage
BW03902	0.90	0.90	3+0.5	3+0.5	49	8	2.00	For spunlaced nonwoven cloth forming,For dryer of paper making,For sludge dewatering of environment protection
HD006	1.00	1.00	2.5	2.5		6	3.00
BW03102	1.00	1.00	3+0.5	3+0.5	53	8	1.90
BW05902	0.90	0.90	5+0.5	5+0.5	20	14	0.80*0.90
BW04902	0.90	0.90	4.6 +0.1	4.6 +0.1		12	1.20
BW06702	0.70	0.70	7+0.5	7+0.5	27	18	0.75
BW07502	0.50	0.50	7.5+0.5	7.5+0.5	30	19	1.00
BW09502	0.50	0.50	10+0.5	10+0.5	25	25	0.50
BW0950402	0.50	0.40 (stainless)	9+0.5	10+0.5	34	25	0.75
BW20252	0.25	0.25	20+0.5	20+0.5	25	50	0.25
BW09603	0.50	0.60	9	8	29	25	0.30*0.55
30Mesh	0.40	0.40	12+0.5	12+0.5		30	0.50
76Mesh	0.20	0.25	29.5-30.5	21.5-22.5	18	76
103Mesh	0.15	0.20	40	30.7	15	103	thickness 0.3mm
