Ellis Canopy Shade Canopy

Specifications

Principle:

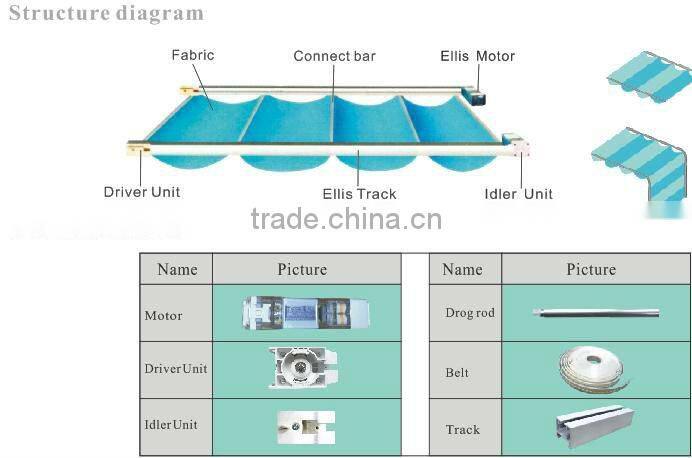

1. There are an automatic lead rail on each side for  the Ellis canopy. The number of the motor driver is altered by the size of the area. Usually we use  one, two or four 220V Elixs motors. The automatic lead rail adopts crawler-type transmission.
2. The motors keep the same speed,  as well as the track running speed, so that we can make sure the shade is opening or closing simutaneously.

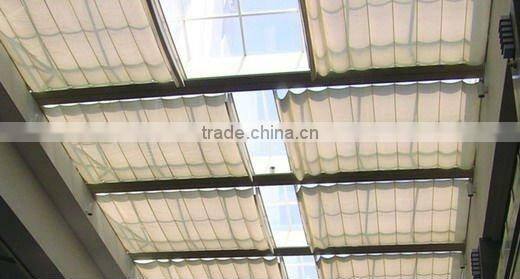

3. With good  flexibility, the connect bar between the fabrics supports the fabrics and makes sure that the fabric will not fall. After unfolding the canopy, the fabrics will appear well- proportioned flat or wavy effect.

4. The system can be designed to be either one-side opening or two-side mode.

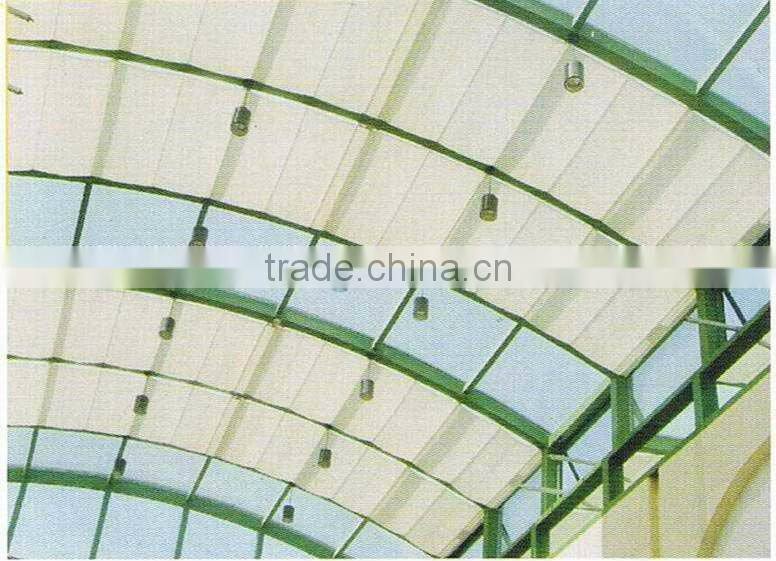

 The Maximum size of single canopy is 12M and  the maximum width is 3M.  Every 50cm there is a transverse connecting rod, which can be made  to be flat or arc canopy. The biggest driving area of double-motor or 4 motors respectively is 18 square meters and 30 square meters. Arc canopy driving area will be less, usually it’s only 70% of standard size. There is no tensile strength requirement for fabrics, so you can choose ordinary euphotic, diaphanous, lightproof roller blind fabric.

Control system

According to different occasions, manual switch control, infrared remote control,  wireless remote control and intelligent control are available. Both single control and group control are available.
