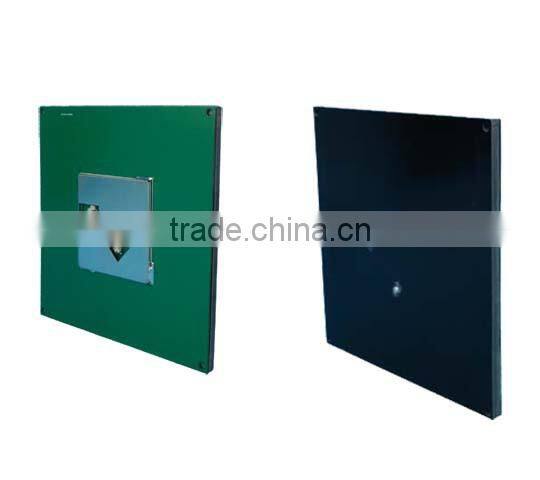

VANCH 7 meters Long Range UHF RFID Integrated Antennas Reader Module
Brief introduction
Integrated antenna character
1. Be sensitive and stable to the tags identify.
2. Stable reading distance 6-7meters.
3. Multi-tags identify, >50pcs tags.
4. Reading distance speed, >50pcs/sec.
Solve the exothermic problem completely.
1. No need for connecting any other outer radiating device. It can work without exothermic reaction in the normal indoor temperature.
2. Sustain electricity<200mA @ 3.5V (26 dBm Output). Pulse peak current<260mA.
Outstanding stability:
1. 24 hours x 365days work normally.
2. Appearance little influenced by cover, electromagnetic environment etc.
3. Wide temperature design and the temperature drift coefficient.
Good consistency:
1.the good design in consistency.
2. Choose the top level components to keep each parameters stable and consistence.
Brief and high efficient interface of hardware and software.
- 1. Peripheral circuit is very easy. The signal power, no need for extra connecting tantalum capacitor.
Installation method: support 5pin WAFER installation.
Specification
Specification |
|
Model No. | VM-5GD |
| |
Electrical parameters | |
Working Voltage | DC 3.5V – 5 V |
PCB size | Pcb size:50*50mm , Ceramic antenna size:40*40mm Overall height :8.5mm |
Standby current | <80mA (EN pin high level) |
Sleeping current | <100uA (EN pin low level) |
Operation current | 180mA @ 3.5V (26 dBm Output,25°C). 110mA @ 3.5V (18 dBm Output,25°C). |
Operating time | <100mS. |
Operation temp. | - 20 °C - + 70 °C |
Storage temp. | - 20 °C - + 85 °C |
Working humidity | < 95% ( + 25 °C) |
Protocol | EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
Frequency | 840-960MHZ |
Working area support | US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 Mainland China;Japan;Korea;Malaysia;Taiwan |
Output power | 18-26 dBm |
Read/write range | Read: 200-250cm;write: 10-50cm(adjusted) |
Output power accuracy | +/- 1dB |
Output power flatness | +/- 0.2dB |
Receive sensitivity | < -70dBm |
Store tag peak speed | > 50pcs/sec |
Tags storage capacity | 200pcs tags @ 96 bit EPC |
Tags RSSI | support |
Communication interface | TTL Uart interface |
Communication baud rate | 115200 bps(default and recommend) 38400bps |
Heat-dissipating method | Air cooling(no need for out install cooling fin) |
1, Supply different kinds of UHF RFID reades,antennas, tags(protocol of EPC C1G2 and ISO-18000/6C 902-928MHZ 865-868MHZ and 2.45GHZ active RFID Products
2, Have our own R&D Department to customize RFID Products for you.
3.Assist you to design different kinds of industry RFID solution
4.Products are CE and FCC certified
