Android Portable Reader for Warehouse Inventory Systems ERP Integration
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
VANCH
Model Number:
VH-70A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RFID Portable Reader With GSM/GPS/Silicone Protection Cover IP65NegotiableMOQ: 1 Unit -
UHF RFID Handheld Terminal With Asset/file Tracking SoftwareNegotiableMOQ: 1 Set
-
Android 4.2 Handheld Reader With Powerful Antenna Long DistanceNegotiableMOQ: 1 Set
-
Assets Tracking Android WIFI/GPRS/Bluetooth UHF Handheld RFID Reader Supplier's ChoiceNegotiableMOQ: 1 Unit
-
ISO18000-6C(EPC GEN2) Bluetooth RFID Handheld Reader for Asset TrackingUS$ 190 - 230MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
VANCH
Model Number
VH-70A

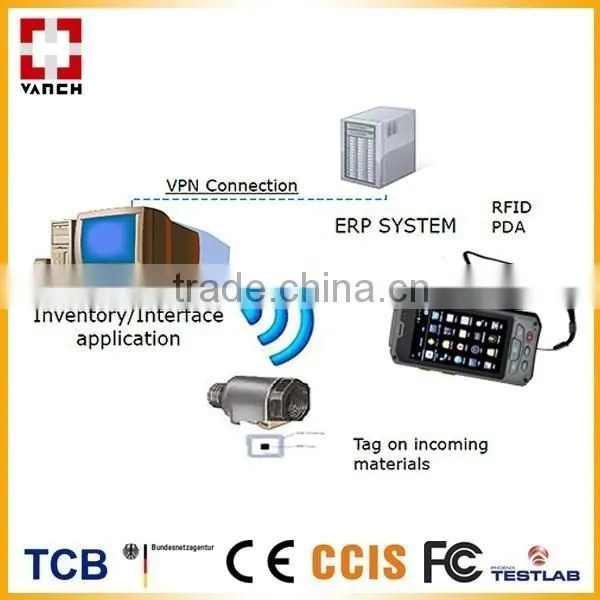

Android Portable Reader for warehouse inventory systems ERP Integration
Features
1. Support bluetooth, WIFI GPRS/WCDMA and other communication method
2.Support 1d barcode reading
3. Reading distance to EPC C1 GEN2/IS018000—6C 900MHZ Tag larger then 2 meters
4. Support 5 million pixel camera
5.Support infrared communication module
| Features | ||
| The processor | Cortex A9 1GHZ The processor; Cortex A9 1GHZ | |
| Memory capacity | ROM:EMMC 32Gb RAM: LPDDR2 4Gb | |
| The operating system | Android 4.03 | |
| Wireless communications | GPRS(option) | GPRS, EDGE , 4-band 900/1800,850/1900 |
| WCDMA(3G, option) | band 850/2100,Cat.8 HSDPA Cat.6 HSUPA | |
| WIFI(standard) | Conform to the IEEE 802.11b/g | |
| Bluetooth(option) | Conform to the Bluetooth 4.0 | |
| Display | 4.3”IPS display, The resolution of the 480*800, Gabo Lingual perspective, the sun is visible | |
| Touch screen | Support more capacitive touch; | |
| Indicator light | Network indicator light, charge indicator; | |
| audio | Support the speech; | |
| Micro SD card( Micro SD card) | Support 32 gb MICRO SD card; | |
| Data security | Product is the data security protection, in a completely off electricity (remove the battery and the power converter), data is not lost | |
| GPS indicators | Channel: channel 12 | |
| Receive types: L1, C/A code and carrier phase smoothing | ||
| Re-capture: < 1 s | ||
| The latest ASIC chip; A squadron of patent algorithms; EVEREST multipath suppression technology | ||
| Error range: < = 10 meters | ||
| Navigation map | Support navione, baidu, Google, gold and other navigation map; | |
| The input method | Full-screen handwriting, half screen handwriting, strokes and pinyin, Numbers, letters, symbols | |
| Physical interface | High-speed USB2.0 interface equipment end, 3.5 stick related plug-in interface | |
| camera(option) | The rear 5 million pixel camera with flash; | |
| The flashlight | Low power consumption LED lights lighting, emergency use; | |
| 1D barcode(SE4500/N431X) | ||
| Read code system | Can read all kinds of main one-dimensional bar code: Code 39,Code 93,Code 128,Codebar,EAN-13,EAN-8,UPC-A,UPC-E,ITF 14,UCC/EAN-128,ITF 25,Matrix 25,EAN-128,ISBN | |
| Read distance | 0 cm ~ 50 cm | |
| Read rate | First read rate of 99% or more, the error rate of 0.01% or less, false reject rate is 0.01% or less | |
| 2D barcode | ||
| Moto-SE4500 | Hardware decoding, the decoding speed and error rate of 0.01% or less; | |
| Honeywell-5180 | Hardware decoding, the decoding speed and error rate of 0.01% or less; | |
| RFID | ||
| UHF(915MHz) | More than 2m distance for EPC C1 GEN2 / ISO18000-6 - c protocol of 900 MHZ tag read operation (associated with tags and antenna) | |
| HF (13.56MHz) | 0 ~ 7 cm range for ISO15693, ISO14443 double deal 13.56 MHz tags for reading and writing (associated with tags and antenna) | |
| LF | 125 K / 134.2 K animal ear tag; | |
| PSAM | Support two PSAM card; | |
| HF (CPU card read) | Support the CPU card read and write, used with PSAM; | |
| Active in close communication | option) | |
| Active 2.45 G | Distance is 200 m, 200 m label can be read all at once; | |
| 433M | Read more than 200 m distance, distance is adjustable; | |
| Battery performance | ||
| The battery() | 4000 mah lithium polymer battery, standby time: more than 150 hours, working time: more than 8 hours, ac adapter charging (1 a) | |
| The battery standby time( | After a full charge, the wireless communication function on standby, after 360 hours, can run normally | |
| Battery charging time) | Charging time < 4.5 hour | |
| Charging time | More than 8 hours (once charging) | |
| The work environment | ||
| Operating temperature | -20°C ~50°C | |
| Storage temperature | -20°C ~70°C | |
| Relative humidity | 10%~90%RH,non indensity | |
| Protection grade | IP65 | |
| Physical parameters | ||
| The total weight | Less than 300g (including battery, charger are not included); | |
| The fuselage size | 148 (L) x 77.5 (W) x 27 (T) ± 2 mm | |
| The attachment | ||
| Standard | 1 1 lithium battery, charger, USB data line | |
