HUAWEI OptiX OSN 1800 Compact Multi-Service Edge Optical Transport Platform

HUAWEI OptiX OSN 1800 Compact Multi-Service Edge Optical Transport Platform thumbnail-1

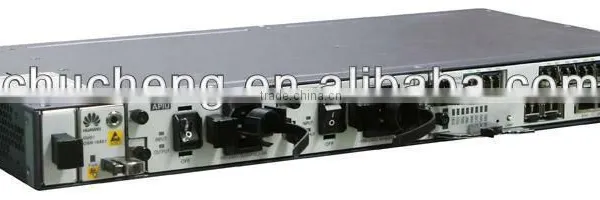

HUAWEI OptiX OSN 1800 Compact Multi-Service Edge Optical Transport Platform photo-1
US$ 1 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
HUAWEI
Model Number:
OptiX OSN 1800
Contact Supplier Request Quote Chat Now
Shanghai Chu Cheng Information Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name HUAWEI
Model Number OptiX OSN 1800

 Types of Access Services

Service Category

Service Type

Service Rate

Board

SDH

STM-1

 155.52 M bit/s

OTN: LQM2, ELOM

SDH: SL1Q, UXCL

STM-4

 622.08 M bit/s

OTN: LQM2, ELOM

SDH: SL4D, UXCL

STM-16

 2.5 Gbit/s

OTN: LQM2, ELOM

SDH: UXCL

STM-64

 9.95 Gbit/s OTN: LDX, ELOM

PDH

 E1 2.048 Mbit/s

PDH: SP3D

Packet: MD1
T1 1.544 Mbit/s PDH: SP3D
E3 34.368 Mbit/s PDH: PL3T
T3 44.736 Mbit/s PDH: PL3T

OTN

OTU1

 2.67 Gbit/s OTN: LQM2, ELOM

OTU2

 10.71 Gbit/s

OTN: LDX, ELOM

OTU2e

 11.10 Gbit/s

Ethernet

FE (electrical port)

 10/100 Mbit/s

Packet: EM6F, EF8F
FE (optical port) 125 Mbit/s

OTN: LQM2, ELOM

Packet: EF8F, EM6F, EG4C

GE (electrical port)

 1000 Mbit/s

Packet: EM6F, EG4C
GE (optical port) 1.25 Gbit/s

OTN: LQM2, ELOM

Packet: EM6F, EG4C

10 GE LAN

 10.31 Gbit/s

OTN: LDX, ELOM

Packet: UXCL

10 GE WAN

 9.95 Gbit/s

OTN: LDX, ELOM

Packet: UXCL
ATM/IMA ATM/IMA E1 2.048 Mbit/s Packet: MD1

SAN

FC100, FICON(Fiber Connection)

 800 M bit/s OTN: LQM2, ELOM

FC200, FICON Express

 1.6 Gbit/s OTN: LQM2, ELOM

ESCON(Enterprise Systems Connection)

 200 Mbit/s OTN: LQM2, ELOM

FC400, FINCON 4G

 3.2 Gbit/s OTN: ELOM

FC800, FINCON 8G

 6.4 Gbit/s OTN: LDX, ELOM

FC1200, FINCON 10G

 10.2 Gbit/s OTN: LDX, ELOM

CPRI

CPRI line bit rate option 2

 1.229 Gbit/s (2 x 614.4 Mbit/s) OTN: ELOM, TNF2LQM2a

CPRI line bit rate option 3

 2.458 Gbit/s (4 x 614.4 Mbit/s) OTN: ELOM, TNF2LQM2

CPRI line bit rate option 5

 4.915 Gbit/s (8 x 614.4 Mbit/s) OTN: ELOM

CPRI line bit rate option 6

 6.144 Gbit/s (10 x 614.4 Mbit/s) OTN: ELOM

Video service and others

DVB-ASI

 270 Mbit/s OTN: LQM2, ELOM

SDI

 270 Mbit/s OTN: LQM2, ELOM

HD-SDI

 1.485 Gbit/s OTN: LQM2, ELOM

3G-SDI

 2.97 Gbit/s OTN: ELOM



 Product Appearance and Highlights

This topic describes the appearance and highlights of the OptiX OSN 1800 II multi-service edge transport platform (OptiX OSN 1800 series for short). The OptiX OSN 1800 can transport multiple types of services.

Table 1-1  Product appearance and highlights for OptiX OSN 1800
Specifications Description

Dimensions (mm)

 88 (H) x 442 (W) x 220 (D)

Number of slots for service boards

 6

Cross-connect capability

 OTN
  • Optical layer: Implements the add/drop multiplexing of any two wavelengths or four and eight adjacent wavelengths on the OTM and the OADM boards.
  • Electrical layer: Supports intra-board cross-connections of ODU0/ODU1/ODUflex/ODU2 services.
Packet service

A packet switching capacity of 60 Gbit/s
SDH Higher order cross-connection: 20 Gbit; Lower order cross-connection: 5 Gbit/s.

Maximum number of wavelengths

 DWDM

  • On a network that contains only OptiX OSN 1800, a 16-channel DWDM system is supported.

  • On a hybrid network that contains OptiX OSN 1800 and OptiX OSN 8800, a 40-channel DWDM system is supported if OBU boards are used on the network.
CWDM

CWDM: 8-ch(max)

Wavelength range

DWDM: 192.1THz to 196.00THz (Band-C, ITU-T G.694.1)

CWDM: 1471nm to 1611nm (Band S+C+L, ITU-T G.694.2)

Max. rate per channel

 10 Gbit/s (OTU2)

Max. distance

 36 dB (10G) without electrical regenerator

Service types supported

 SDH service, PDH service, OTN service, Ethernet service, CPRI service, SAN service, video service, packet service and others

Line rate

  • OTN: 2.5 Gbit/s, 10 Gbit/s

  • Packet service: FE, GE, and 10GE
  • SDH: STM-1, STM-4, and STM-16

Topology

Point to point, chain, ring, ring-with-chain, intersecting rings, and tangent ring
Applications Pure OTN networks, pure packet networks, pure TDM networks, MS-OTN networks (OTN+packet+TDM), hybrid networks (packet+TDM)
Power supply port
  • -48 V/-60 V DC power input
  • 110 V/220 V AC power input
Mounting option
  • 19" rack
  • ETSI 300/600 mm rack
  • Outdoor cabinet (APM30H)
  • Wall- or Pole-mount
