HUAWEI OTN OptiX OSN 3800 Compact Intelligent Optical Transport Platform

HUAWEI OTN OptiX OSN 3800 Compact Intelligent Optical Transport Platform thumbnail-1
HUAWEI OTN OptiX OSN 3800 Compact Intelligent Optical Transport Platform photo-1
US$ 1 - 1 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
HUAWEI
Model Number:
OptiX OSN 3800
Contact Supplier Request Quote Chat Now
Shanghai Chu Cheng Information Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name HUAWEI
Model Number OptiX OSN 3800



 Product appearance and highlights for OptiX OSN 3800

Specifications

OptiX OSN 3800

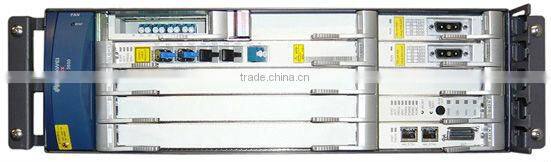

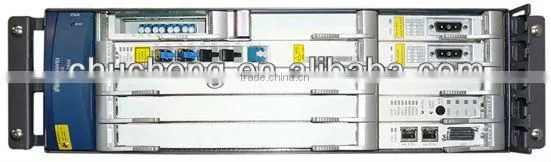

Product appearance

HUAWEI OTN OptiX OSN 3800 Compact Intelligent Optical Transport Platform

Dimensions (mm)

 436 (W) x 295 (D) x 134 (H)

Number of slots for service boards

 4

Wavelength (max)

 DWDM: 80-ch, CWDM: 8-ch

Wavelength range

DWDM: 1529.16 nm to 1560.61 nm (Band-C, ITU-T G.694.1)

CWDM: 1471 nm to 1611 nm (Band S+C+L, ITU-T G.694.2)

Max. rate per channel

 10 Gbit/s (OTU2)

Max. distance

Multi-span transmission: 32 span x 22 dB/span (10G), without electrical regeneration

Ultra-long single-span transmission: 1 span x 81 dB/span (10G)

Service types supported

SDH, SONET, Ethernet, SAN, OTN, Video

Line rate

2.5 Gbit/s, 10 Gbit/s

Topology

Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring and mesh

Redundancy and Protection

Network level protection

Optical line protection, intra-board 1+1 protection, client 1+1 protection, ODUk SNCP, tributary SNCP, SW SNCP, MS SNCP, OWSP, board-Level protection

DBPS, DLAG, ERPS, LAG, LPT, MSTP, STP and RSTP, VLAN SNCP

Equipment level protection

Power redundancy, fan redundancy, system control and communication board redundancy
Optical power management

ALS, AGC, ALC, IPA



 Service types and rates that the OptiX OSN 3800 supports

Service Category Service Type Service Rate Reference Standard
SDH STM-1 155.52 Mbit/s

ITU-T G.707

ITU-T G.691

ITU-T G.957

ITU-T G.783

ITU-T G.825
STM-4 622.08 Mbit/s
STM-16 2.5 Gbit/s
STM-64 9.95 Gbit/s
SONET OC-3 155.52 Mbit/s

GR-253-CORE

GR-1377-CORE

ANSI T1.105
OC-12 622.08 Mbit/s
OC-48 2.5 Gbit/s
OC-192 9.95 Gbit/s
Ethernet service FE (optical signal)

Interface rate: 125 Mbit/s

Service rate: 100 Mbit/s

IEEE 802.3u
FE (electrical signal)

Interface rate: 125 Mbit/s

Service rate: 100 Mbit/s
GE (optical signal)

Interface rate: 1.25 Gbit/s

Service rate: 1 Gbit/s

IEEE 802.3z
GE (electrical signal)

Interface rate: 1.25 Gbit/s

Service rate: 1 Gbit/s
10GE WAN 9.95 Gbit/s

IEEE 802.3ae
10GE LAN 10.31 Gbit/s
SAN service ETR 16 Mbit/s IBM GDPS( Geographically Dispersed Parallel Sysplex) Protocol
CLO 16 Mbit/s
FDDI 125 Mbit/s

ISO 9314
ESCON 200 Mbit/s

ANSI X3.296

ANSI X3.230

ANSI X3.303
FICON 1.06 Gbit/s
FICON Express 2.12 Gbit/s
FC100 1.06 Gbit/s
FC200 2.12 Gbit/s
FC400 4.25 Gbit/s
FC800 8.5 Gbit/s
FC1200 10.51 Gbit/s
FICON4G 4.25 Gbit/s
FICON8G 8.5 Gbit/s
ISC 1G 1.06 Gbit/s IBM GDPS( Geographically Dispersed Parallel Sysplex) Protocol
ISC 2G 2.12 Gbit/s
InfiniBand 2.5G 2.5 Gbit/s InfiniBand TM Architecture Release 1.2.1
InfiniBand 5G 5 Gbit/s
OTN service OTU1 2.67 Gbit/s

ITU-T G.709

ITU-T G.959.1
OTU2 10.71 Gbit/s
OTU2e 11.10 Gbit/s
Video service DVB-ASI 270 Mbit/s

EN 50083-9
SDI 270 Mbit/s

SMPTE 259M
HD-SDI 1.49 Gbit/s

SMPTE 292M
HD-SDIRBR 1.49/1.001 Gbit/s
3G-SDI 2.97 Gbit/s

SMPTE 424M
3G-SDIRBR 2.97/1.001 Gbit/s

FE: Fast Ethernet

GE: Gigabit Ethernet

ESCON: Enterprise System Connection

FICON: Fiber Connect

FC: Fiber Channel

DVB-ASI: Digital Video Broadcast-Asynchronous Serial Interface

SDI: Serial Digital Interface. As specified in the SMPTE-259M, SDI is also called SD-SDI.

HD-SDI: High Definition-Serial Digital Interface Signal

3G-SDI: 3G Serial Digital Interface
 Mapping between service types and OptiX OSN 3800 service boards
Service Category Service Type Board
SDH STM-1 LDM, LDMD, LDMS, LOA, LQM, LQMD, LQMS, LWXS, TOM, TQM
STM-4 LDM, LDMD, LDMS, LOA, LQM, LQMD, LQMS, LWXS, TOM, TQM
STM-16 LDM, LDMD, LDMS, LOA, LQM, LQMD, LQMS, LWXS, TMX, TOM, TQM, TQS
STM-64 LDX, LSX, TDX, TQX
SONET OC-3 LDM, LDMD, LDMS, LOA, LQM, LQMD, LQMS, LWXS, TOM, TQM
OC-12 LDM, LDMD, LDMS, LOA, LQM, LQMD, LQMS, LWXS, TOM, TQM
OC-48 LDM, LDMD, LDMS, LOA, LQM, LQMD, LQMS, LWXS, TMX, TOM, TQM, TQS
OC-192 LDX, LSX, TDX, TQX
Ethernet service FE (optical signal) ECOM, LDM, LDMD, LDMS, LEM24, LOA, LQM, LQMD, LQMS, LWXS, TBE, TOM, TQM,
FE (electrical signal) LEM24, TBE
GE (optical signal) L4G, LDGD, LDGS, LDM, LDMD, LDMS, LOA, LOG, LOM, LQM, LQMD, LQMS, LWXS, TBE, TDG, TOG, TOM, TQM
GE (electrical signal) LEM24, LOA, LOG, LOM, TBE, TOG, TOM
10GE WAN LDX, LEM24, LSX, TDX, TQX, TBE
10GE LAN LDX, LEM24, LSX, TDX, TQX, TBE
SAN service ETR LWXS
CLO LWXS
FDDI LDM, LDMD, LDMS, LOA, LQM, LQMD, LQMS, LWXS, TOM, TQM
ESCON LDM, LDMD, LDMS, LOA, LQM, LQMD, LQMS, LWXS, TOM, TQM
ISC 1G LOM
ISC 2G LOM
FICON LDM, LDMD, LDMS, LOA, LOM, LQM, LQMD, LQMS, LWXS, TOM, TQM
FICON Express LDM, LDMD, LDMS, LOA, LOM, LQM, LQMD, LQMS, LWXS, TOM, TQM
FICON4G LOA, LOM
FICON8G LOA
FC100 LDM, LDMD, LDMS, LOA, LOM, LQM, LQMD, LQMS, LWXS, TOM, TQM
FC200 LDM, LDMD, LDMS, LOA, LOM, LQM, LQMD, LQMS, LWXS, TOM, TQM
FC400 LOA, LOM
FC800 LOA, TDX, TQX
FC1200 LSX, TDX, TQX
InfiniBand 2.5G LOM
InfiniBand 5G LOM
OTN service OTU1 LDM, LDMD, LDMS, LOA, LQM, LQMD, LQMS, TMX, TQM, TQS
OTU2 LDX, LSX, LSXR, TDX, TQX
OTU2e LDX, LSX, LSXR, TDX, TQX
Video service DVB-ASI LDM, LDMD, LDMS, LOA, LQM, LQMD, LQMS, LWXS, TOM, TQM
SDI LOA, LQM, LQMD, LQMS, TOM, TQM
HD-SDI LDM, LDMD, LDMS, LOA, LQM, LQMD, LQMS, TOM, TQM
HD-SDIRBR LOA
3G-SDI LOA, LOM
3G-SDIRBR LOA



Product Features


  • Line Rate
    The OptiX OSN 3800 use dense wavelength division multiplexing (DWDM) technologies to achieve transparent transmission with multiple services and large capacity.
  • OTN Feature
    The optical transport network (OTN) technology ensures flexible service cross-connections in an end-to-end manner, and enables services of different types to share bandwidth. With the help of numerous OTN overheads and easy operations on the NMS, users can easily maintain networks and locate faults.
  • Ethernet Feature
    The OptiX OSN 3800 supports various Ethernet services and provides multiple solutions to carry them.
  • CWDM Feature
    The OptiX OSN 3800 provides an 8-wavelength CWDM transmission solution with a channel spacing of 20nm in the C band, which complies with ITU-T G.694.2, and can carry 2.5 Gbit/s or 5 Gbit/s services over a single wavelength.
  • DWDM over CWDM Feature
    DWDM wavelengths can be transported in the window of CWDM 1531 nm to 1551 nm to expand the CWDM system capacity.
  • Single-Fiber Bidirectional Transmission
  • Redundancy and Protection
    The OptiX OSN 3800 provides abundant equipment-level protection and network-level protection.

Automatic Optical Power Management AC Power consumption of an OptiX OSN 3800

Item Value
Maximum power consumption 350 W



Requirements on AC voltage and current of an OptiX OSN 3800

Item Requirement
Rated working current 1.7 A
Nominal working voltage 220 V AC
Working voltage range 90 V AC to 285 V AC



DC Power consumption of an OptiX OSN 3800

Item Value
Maximum power consumption 350 W



Requirements on DC voltage and current of an OptiX OSN 3800

Item Requirement
Rated working current 8 A
Nominal working voltage -48 V DC/-60 V DC
Working voltage range

-48V DC: -40V to -57.6V

-60V DC: -48V to -72V



Mechanical specifications of the OptiX OSN 3800

Item Specification
Dimensions 436 mm (W) x 295 mm (D) x 134 mm (H) or 17.17 in. (W) x 11.61 in. (D) x 5.28 in. (H)
Weight of an empty chassis (with backplane) 6 kg (13.23 lb.)







Typical Networking



The OptiX OSN 3800 Compact Intelligent Optical Transport Platform (OptiX OSN 3800 for short) is referred to as Huawei next generation intelligent optical transport platform.

The OptiX OSN 3800 is applicable to the metropolitan convergence layers and metropolitan access layers. The OptiX OSN 3800 uses dense wavelength division multiplexing (DWDM) or coarse wavelength division multiplexing (CWDM) technologies to achieve transparent transmission with multiple services and large capacity.

Based on network application requirements, the OptiX OSN 3800 provides the following typical networking application:



typical OTN networking

The OptiX OSN 3800 is applicable to the metropolitan convergence layers and metropolitan access layers.

The OptiX OSN 3800 is for metropolitan convergence layers and metropolitan access layers.

The OptiX OSN 3800 uses dense wavelength division multiplexing (DWDM) or coarse wavelength division multiplexing (CWDM) technologies to achieve transparent transmission with multiple services and large capacity.

The OptiX OSN 3800 supports the following networking modes:

  • Point-to-point network
  • Chain network
  • Ring network

It may also work with other WDM, SDH/SONET equipment to offer a complete Metro WDM solution.
