CCIT Optical Splitter 1x4/ 1x8/ 1x16/ 1x32/ 1x64/ and 2x4/ 2x8/ 2x16/ 2x32 Fiber Optic Splitter

Name: CCIT Optical Splitter 1x4/ 1x8/ 1x16/ 1x32/ 1x64/ and 2x4/ 2x8/ 2x16/ 2x32 Fiber Optic Splitter
Brand: CCIT
SKU: 101661707
Availability: InStock

CCIT Optical Splitter 1x4/ 1x8/ 1x16/ 1x32/ 1x64/ and 2x4/ 2x8/ 2x16/ 2x32 Fiber Optic Splitter thumbnail-1

CCIT Optical Splitter 1x4/ 1x8/ 1x16/ 1x32/ 1x64/ and 2x4/ 2x8/ 2x16/ 2x32 Fiber Optic Splitter photo-1

US$ 1 - 500 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

CCIT

Model Number:

Splitter

Contact Supplier Request Quote Chat Now

Shanghai Chu Cheng Information Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name CCIT

Model Number Splitter

Specifications

1.splitter
2.PLC Splitter:1x4, 1x8,1x16, 1x32, 1x64, and 2x4,2x8,2x16,2x32
3.FTTP, FTTH, FTTN, FTTC
4.Analog/Digital PON

CCIT optical splitter 1x4/ 1x8/ 1x16/ 1x32/ 1x64/ and 2x4/ 2x8/ 2x16/ 2x32 fiber optic splitter

Product Description

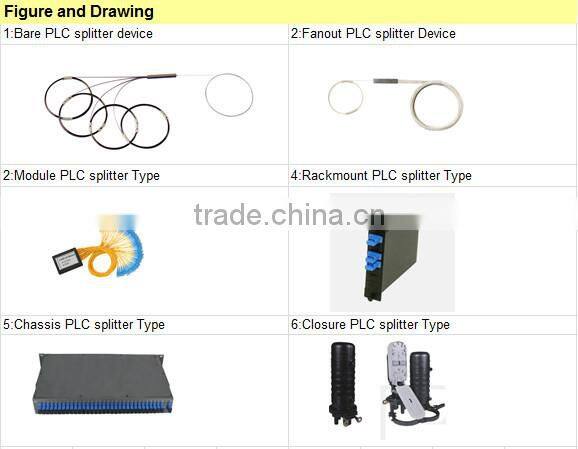

Planar Lightwave Circuit Splitter (PLC)
We offers different types of high-quality splitters. These products are designed for long-term reliability, superior performance, and a wide range of usage in fiber optics including optical transmission, long haul, subscriber loop, fiber to the home, telecommunications, CATV, test equipment, optical fiber sensors, data communications and wide-area network. Our optical splitters are designed for consistent performance, low optical Insertion loss, low polarization Dependent Loss, high reliability and stability , superior environmental and mechanical characteristics, and fast installation. They also enable more effective monitoring and management of fiber optical networks. The products we offer are: PLC Splitter:1x4, 1x8,1x16, 1x32, 1x64, and 2x4,2x8,2x16,2x32 Our PLC splitters are tested based on the strictest standards of the industry, and we guarantee quality, turnaround and competitive pricing.

Key Features
1. Low IL and PDL
2. High reliability
3. High channel counts
4. Wide wavelength range
5. Large operating temperature range
6. Excellent Environmental & Mechanical Stability

Applications
1. FTTX (FTTP, FTTH, FTTN, FTTC)
2. Local Area Networks (LAN)
3. Test Equipment
4. CATV
5. Analog/Digital Passive Optical Networks (PON)

Compliance
--Telcordia GR-1209
--Telcordia GR-1221

1×N PLC Splitter Specifications (Measured at room temperature and excludes connector loss)
Port Configuration		1x2	1x4	1x8	1x16	1x32	1x64
Fiber Type	SMF-28e or customer specified
Operating Wavelength (nm)	1260~1650
Insertion Loss (dB)	Typical	3.6	6.8	10.2	13.3	16.2	20.5
Insertion Loss (dB)	Max	4.0	7.4	10.5	13.5	16.9	21.0
Loss Uniformity (dB)	Max	0.5	0.7	1.0	1.4	1.8	2.0
Return Loss (dB)	Min	55	55	55	55	55	55
Polarization Dependent Loss(dB)	Max	0.2	0.2	0.3	0.3	0.3	0.4
Polarization Dependent Loss(dB)	Max	0.2	0.2	0.3	0.3	0.3	0.4
Wavelength Dependent Loss(dB)	Max	0.3	0.3	0.3	0.8	0.5	0.8
Wavelength Dependent Loss(dB)	Max	0.3	0.3	0.3	0.8	0.5	0.8
Operating Temperature (℃)	-40~+85
Storage Temperature (℃)	-40~+85

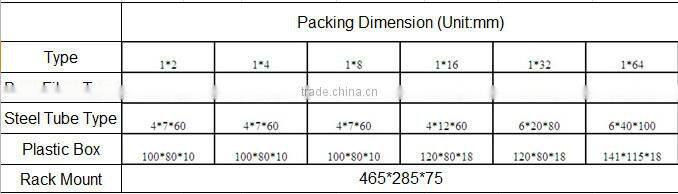

Packaging Size (mm)	Fan-Out	60x7x4	60x7x4	60x7x4	60x12x4	80x20x6	80x20x6

2×N PLC splitter Specifications (Measured at room temperature and excludes connector loss)
Port Configuration		2x2	2x4	2x8	2x16	2x32	2x64
Fiber Type	SMF-28e or customer specified
Operating Wavelength (nm)	1260~1650
Insertion Loss (dB)	Typical	3.8	7.4	10.8	14.2	17	21
Insertion Loss (dB)	Max	4.2	7.8	11.2	14.6	17.9	21.5
Loss Uniformity (dB)	Max	1.0	1.4	1.5	2	2.5	2.5
Return Loss (dB)	Min	50	50	50	50	50	50
Polarization Dependent Loss(dB)	Max	0.2	0.2	0.4	0.4	0.4	0.5
Directivity (dB)	Min	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	Max	0.8	0.8	0.8	0.8	0.8	1
Temperature Dependent Loss (-40~85 ℃) (dB)	Max		0.5	0.5	0.8	0.8	1
Operating Temperature (℃)	-40~+85
Storage Temperature (℃)	-40~+85

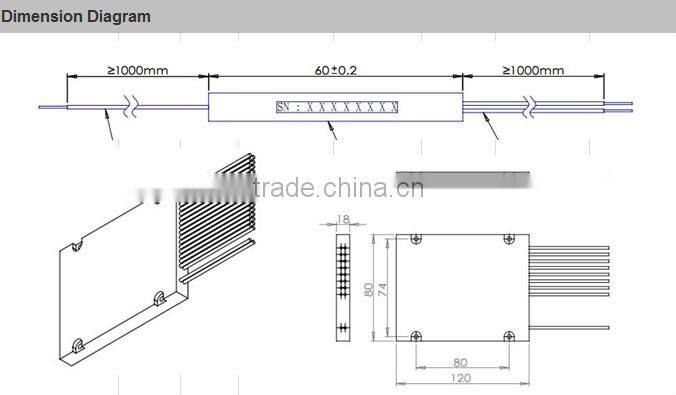

Packaging Size (mm)	Fan-Out		60x7x4	80x12x4	80x12x4	80x20x6
Remark:The above IL is for the PLC Splitter without connectors,for the PLC Splitter with connectors, the above IL should add 0.2dB each

Environmental Conditions
Operating Temperature	℃	-40~+85'
Storage Temperature	℃	-40~+85
Operating Humidity	%RH	≤93
Storage Humidity	%RH	≤93

Packaging & Shipping

Trade terms: FOB,CIF,CFR,etc
Price Terms: L/C,D/P,T/T,Western Union,PAYPAL
Payment Terms: T/T in advance
MOQ: 1 pcs
FOB Price:US $1 - 1,000 / Piece
Port: Shanghai
Lead time: Within 5 working days after receipt payment.
Shipment: Express, Air, Sea
Supply capability: 200 Piece/Pieces per Week
Sample availability: Yes( not free)
Package information: carton package with Huawei original package

Company Information

ChuCheng Information Technology Co., Ltd. , which provides main services in terms of broadband communications and information technology industries, is a research and development, production, sales, service integration, high-tech enterprises. Our products mainly cover the optical signal transmission and access, signal transmission and access, photoelectric signal conversion and photoelectric signal and so on.

We are now the agent of well-known international brands such as HUAWEI, ZTE, CISCO, ZYXEL,

Grandstream, etc. Our customer include major national telecom carriers, as well as radio and television, electricity, mining and other industry professional network users; We have already established a long-term friendly and cooperative relations with them. In addition, the company has been actively expanding into foreign markets. The products are exported to Europe, America, Southeast Asia, the Middle East as well as Japan, Korea and other neighboring countries.

We will constantly improve our service and quality to create a win-win situation.

Please contact us to know details.

ShangHai ChuCheng Information and Technology CO.,LTD

Address: Room 110,No.389 JinWan Road, ShangHai , China

Tel:0086-21-58718070 ext 8030

Fax: 0086-21-58714662-8888

Attn: Camille.gu

Skype: melody.li221

Our Services

We can provide detail documents and remote help for device installation and configuration.
Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it’s accessories are complete.
