Help CenterFactory Price Elcb
Related Products
Specifications
elcbrated voltage:230/400v
numbers of poles:2P,4P
rated frequency:50/60HZ
elcb
Product introduction
GSL7-63 elcb provide the function of isolation switching and earth leakage protection of electrical circuits.And also provide the indirect protection of the operator's body against the dangerous effects of electric currentof and provide the protection the fire caused by the electrical circuits fault.The rated voltage 230V/400V,and rated current from 16A to 63A.They compliance with IEC/EN1008-1.In order to adapt to the wider use of permises,they have bilateral busbar.
Product parametert
| Type | GSL7-63 |
| Number of poles | 2P 4P |
| Rated current | 16A 25A 40A 63A |
| Rated frequency | 50/60HZ |
| Rated voltage | 230/400V |
| Rated sensitvity lΔc | 0.03A 0.1A 0.3A |
| Rated residual making and breaking capacity lΔ | 500(ln=16-40A) 630(ln=63A) |
| Rated impulse witstand voltge(1.2/50)Uimp | 6000V |
| Dielectric test voltage at and ind.Freq.for 1min | 2.5KV |
| Pollution degree | 2 |
| Storage temperature | -25...+70°c |
| Electrical life and machanical life | 4000 |
| Terminal connection type | Cable/U-type busbar /Pin-type busbar |
| Mounting | OnDIN rail FN60715b(35mm) by means of fast clip device |
| Terminal size top/bottom for cable | 25 mm² |
| 18-3 AWG | |
| Connecting | From top |

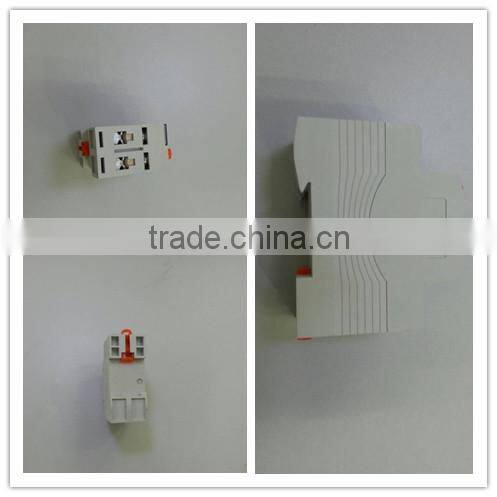

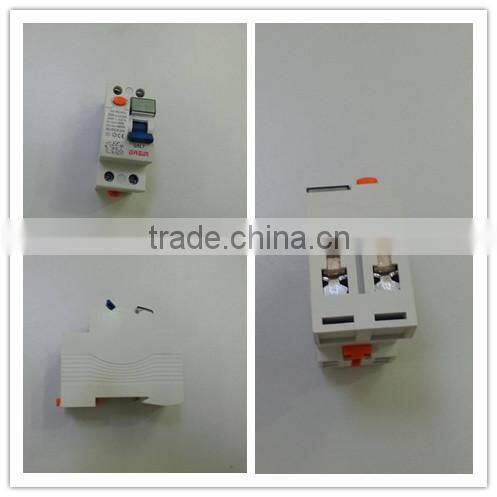

Product show
Product's advantage for GSL7- 63 elcb
1.Our products have the guarantee period of 24 calendar months,that is a high quality and reliability;
2. The deliveries exactly in accordance with customer orders;
3. The fast transportation;
4. our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality.
.
standard export packing for elcb
,
(1)Warranty ( 24 months warranty )
1. The warranty starts from the delivery date from our factory;
2. During the warranty, any defective product will get repaired or replaced for free ;
3. It is beyond the warranty as the products breaked by the violence , the carelessness or repaired , altered without authorization.
(2)Lead Time
1. Sample orders will be delivered from our factory within 7 working days.
2. General orders will be delivered from our factory within 7-15 working days.
3. Bulk orders will be delivered from our factory within 25 working days at most
(3)Shippment
1. By EMS, DHL, FedEx, TNT, UPS or other express.
2. By our forwarding agent (by air or by sea).
3. By your own forwarding agent.
4. By domestic forwarding agents to any city in China
we are a manufacturer & exporter , we are sure that we can best support our customers with high quality products and the most competitive products .
Our factory
Taking part in Canton fair
Our markets
| North America | No3 | Rated of buyer 12.5% |
| South America | No4 | Rated of buyer 7.5% |
| Europe | No2 | Rated of buyer 19.2% |
| Asia | No1 | Rated of buyer 35.5% |
| Africa | No5 | Rated of buyer 3.24% |
Certification :
| Certified Picture | Certification Name | Certified By | Product Name & Model No. |
|
ISO9001:2000 | EACC, ANAB | Scope: Sales of Sales of electric appliances .For example: sensors, relays, voltage stabilizers, AC contactors circuit breakers, distribution boxes, industrial plugs & sockets and others . |
|
|
CE |
EPRE |
Mini Circuit Breake&GSB6-63 |
|
|
ETL | ITS | Mini Circuit Breaker&GSL7-63 |
|
GS | TUV | PIR CEILING LAMP&GSL3002B |
|
SAA | SAA | Mini Circuit Breaker &N-7B |
|
CE | EPRE | STANDALOE SENSOR&GSA001 |
