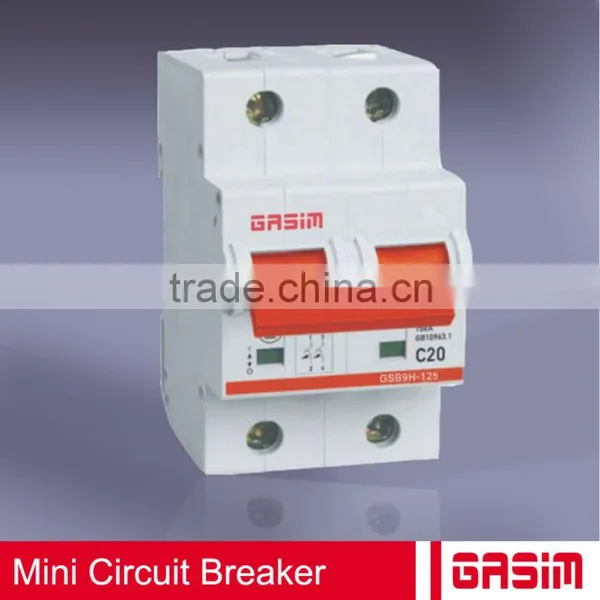

mini circuit breaker mcb 125a 400v
Product introduction
GSB9H-125 mini circuit breaker mcb 125a 400v is mainly used for protection against overload and short circuitunlder,rated voltage 230V/400V,and rated current from 20A to 125A.Their high current limitation capability to realize the high selection.The products have high breaking capablity ,can reach 25KA.Also having accurate current tripping and setting.Free incoming-line direction of power supply.Small dimension and one modular quantity width .
Product parametert
| Type | GSB9H-125 |
| Number of poles | 1P 2P 3P 4P |
| Rated current(A) | 20 25 32 40 50 63 80 100 125 |
| Rated frequency | 50/60HZ |
| Rated voltage(V) | 230V/400V |
| Rated breaking capcity(kA) | 25 |
| Max fuse than can be connectd to | 200A gl(>20KA) |
| Selection grade | 3 |
| Work enviromment temperature | -5 to +40°c |
| Case protection grade | IP40(Install after) |
| Electrical life | 8000 |
| The length of exposed plane | 45mm |
| Enclosure height | 90mm |
| Enclosure width | 27mm evey pole(monopole) |
| Moutily manner | The standard IEC 35mm rail |
| Terminal manner | Terminal connection of exaltation |
| Terminal block capacity | 2.5-50mm² |

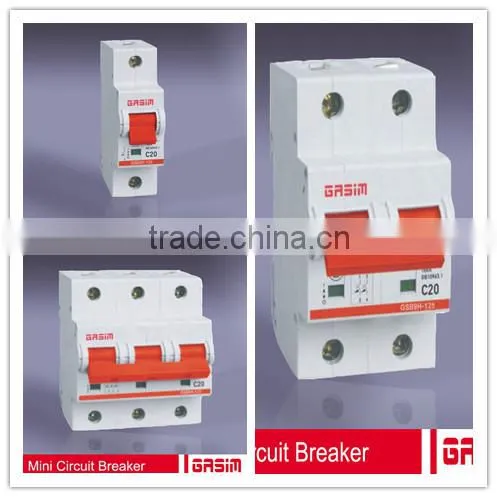

Product show
Product's advantage for GSB9H-125 mini circuit breaker mcb 125a 400v
1.Our products have the guarantee period of 24 calendar months,that is a high quality and reliability;
2. The deliveries exactly in accordance with customer orders;
3. The fast transportation;
4. our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality.
5.GSB9H -125mini circuit breaker has high short-circuit breaking capacity,even can reach 25KA .
standard export packing for mini circuit breaker mcb 125a 400v
(1)Warranty ( 24 months warranty )
1. The warranty starts from the delivery date from our factory;
2. During the warranty, any defective product will get repaired or replaced for free ;
3. It is beyond the warranty as the products breaked by the violence , the carelessness or repaired , altered without authorization.
(2)Lead Time
1. Sample orders will be delivered from our factory within 7 working days.
2. General orders will be delivered from our factory within 7-15 working days.
3. Bulk orders will be delivered from our factory within 25 working days at most earth leakage circuit breaker
(3)Shippment
1. By EMS, DHL, FedEx, TNT, UPS or other express.
2. By our forwarding agent (by air or by sea).
3. By your own forwarding agent.
4. By domestic forwarding agents to any city in China
Our factory
we are a manufacturer & exporter , we are sure that we can best support our customers with high quality products and perferential products.
Taking part in Canton fair
Our markets
| North America | No3 | Rated of buyer 12.5% |
| South America | No4 | Rated of buyer 7.5% |
| Europe | No2 | Rated of buyer 19.2% |
| Asia | No1 | Rated of buyer 35.5% |
| Africa | No5 | Rated of buyer 3.24% |
Certification :
| Certified Picture | Certification Name | Certified By | Product Name & Model No. |
|
ISO9001:2000 | EACC, ANAB | Scope: Sales of Sales of electric appliances .For example: sensors, relays, voltage stabilizers, AC contactors circuit breakers, distribution boxes, industrial plugs & sockets and others . |
|
|
CE |
EPRE |
Mini Circuit Breake&GSB6-63 |
|
|
ETL | ITS | Mini Circuit Breaker&GSL7-63 |
|
GS | TUV | PIR CEILING LAMP&GSL3002B |
|
SAA | SAA | Mini Circuit Breaker &N-7B |
|
CE | EPRE | STANDALOE SENSOR&GSA001 |
