Help CenterHot Sell Easy Mounting Timer Mini Circuit Breaker
Related Products
-
Hot Sell 2p Easy Mounting C20 Mcb Circuit BreakerUS$ 0.4 - 1MOQ: 1000 Pieces -
Hot Sell Easy Mounting 63a Water Circuit BreakerUS$ 0.4 - 1MOQ: 1000 Pieces
-
High Quality Blade Fuse Circuit BreakerUS$ 0.4 - 1MOQ: 1000 Pieces
-
High Quality Residual Current Circuit BreakerUS$ 0.4 - 1MOQ: 1000 Pieces
-
Fatory Prices Moulded Case Circuit BreakerUS$ 0.4 - 1MOQ: 1000 Pieces
Specifications
timer circuit breakerrated voltage:230/400v
numbers of poles:1P 2P 3P 4P
rated breaking capacity: 6000 10000A
timer circuit breaker
Product introduction

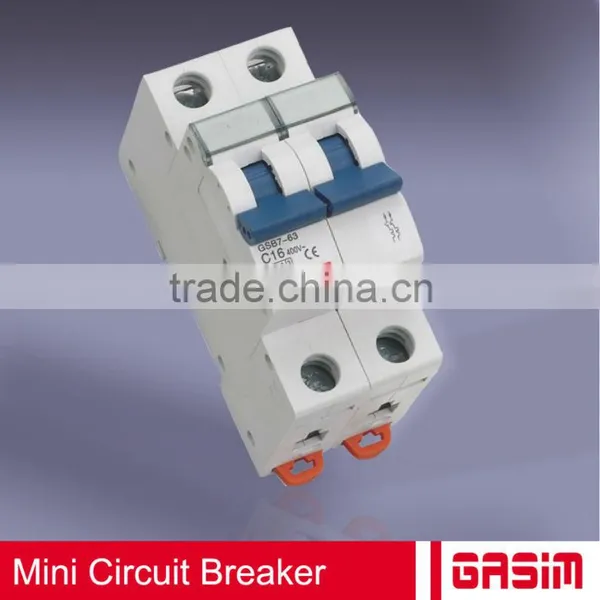

GSB7-63 timer circuit breaker is mainly used for protection against overload and short circuitunlder,they used as main switch in the industral ,business or civill electric circuit.The rated voltage 230V/400V,and rated current from 1A to 63A.Their high current limitation capability to realize the high selection.They compliance with IEC/EN60898-1.They also can in switch panels,railway and marine application.
Product parametert
| Type | GSB7-63 |
| Number of poles | 1P 2P 3P 4P |
| Rated current(A) | 1 2 3 4 6 10 20 25 32 40 50 63 |
| Rated frequency | 50/60HZ |
| Rated voltage(V) | 230V/400V |
| Rated breaking capacity(A) | 6000 10000 |
| Rated impulse witstand voltge | 8000v |
| Themo-magnetic release characteristic | B C D |
| Electrical life | 6000 |
| Terminal connection type(°c) | Cable/U-type busbar /Pin-type busbar |
| Terminal size top/bottom for cable mm² | 25 |
| AWG | 18-3 |
| Connecting | From top to bottom |
Product show
standard export packing for timer circuit breaker
(1)Warranty ( 24 months warranty )
1. The warranty starts from the delivery date from our factory;
2. During the warranty, any defective product will get repaired or replaced for free ;
3. It is beyond the warranty as the products breaked by the violence , the carelessness or repaired , altered without authorization.
(2)Lead Time
1. Sample orders will be delivered from our factory within 7 working days.
2. General orders will be delivered from our factory within 7-15 working days.
3. Bulk orders will be delivered from our factory within 25 working days at most
(3)Shippment
1. By EMS, DHL, FedEx, TNT, UPS or other express.
2. By our forwarding agent (by air or by sea).
3. By your own forwarding agent.
4. By domestic forwarding agents to any city in China.
Our factory
we are a manufacturer & exporter , we are sure that we can best support our customers with high quality products and perferential products.
Taking part in Canton fair
Our markets
| North America | No3 | Rated of buyer 12.5% |
| South America | No4 | Rated of buyer 7.5% |
| Europe | No2 | Rated of buyer 19.2% |
| Asia | No1 | Rated of buyer 35.5% |
| Africa | No5 | Rated of buyer 3.24% |
Certification :
| Certified Picture | Certification Name | Certified By | Product Name & Model No. |
|
ISO9001:2000 | EACC, ANAB | Scope: Sales of Sales of electric appliances .For example: sensors, relays, voltage stabilizers, AC contactors circuit breakers, distribution boxes, industrial plugs & sockets and others . |
|
|
CE |
EPRE |
Mini Circuit Breake&GSB6-63 |
|
|
ETL | ITS | Mini Circuit Breaker&GSL7-63 |
|
GS | TUV | PIR CEILING LAMP&GSL3002B |
|
SAA | SAA | Mini Circuit Breaker &N-7B |
|
CE | EPRE | STANDALOE SENSOR&GSA001 |
