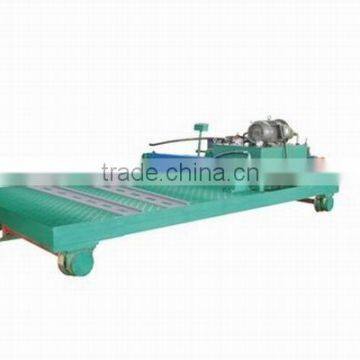

Hydraulic Kiln Car Pusher

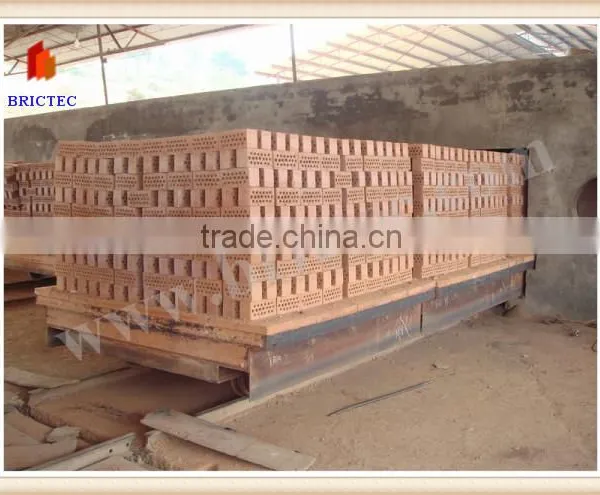

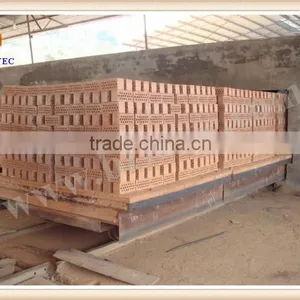

It is mainly used to push the kiln cars on the ferry push into the tunnel furnace and make it move forwards, and is one of key devices in furnace operation equipment in brick and tile factories.
Equipment Model |
YDS3.3-30 |
YDS4.6-30 |
YDS6.9-30 |
YDS3.3-60 |
YDS4.6-60 |
YDS6.9-60 |
Applicable Furnace Model |
3.3m Tunnel Drying Furnace |
4.6m Tunnel Drying Furnace |
6.9m Tunnel Drying Furnace |
3.3m Tunnel roasting kiln |
4.6m Tunnel roasting kiln |
6.9m Tunnel roasting kiln |
Power(KW) |
15 |
15 |
30 |
15 |
15 |
30 |
Maximum Jacking Force(KN) |
153×2 |
160×2 |
180×2 |
300×2 |
300×2 |
420×2 |
Tension(KN) |
70×2 |
84×2 |
90×2 |
40×2 |
29×2 |
60×2 |
Working Stroke(mm) |
1330 |
1600 |
1450 |
1330 |
1600 |
1450 |
Maximum Stroke(mm) |
1430 |
1700 |
1550 |
1430 |
1700 |
1550 |
Working Pressure(MPa) |
10 |
16 |
12 |
10 |
15 |
12 |
Maximum Pressure(MPa) |
12.5 |
20 |
16 |
12.5 |
20 |
16 |
Jacking Speed(m/s) |
0.05 |
0.03 |
0.04 |
0.05 |
0.02 |
0.04 |
Model of Hydraulic Oil |
N32# |
N32# |
N32# |
N32# |
N32# |
N32# |
Company information
We, Xi'an Brictec Engineering Co. Ltd., not only majors in sale of brick making machines, but also concentrates on the overseas and domestic fired brick designing, kiln designing, factory building designing and turn-key project. Our company provide solutions to brick & tile making industry by a group of professionals who have more than 25 years experience in the brick and tile making process industry. There are 6 professor-level engineers and 10 with an high title.
We cooperates with brick machinery factories to supply customers with the most suitable machines. Until now ,we have accomplished over 50 brick projects of engineering, trading, technical supporting in Asia, Africa, South American countries. We also have successfully constructed over 20 production lines in China.
Our Business Scope
I. Design and construction of a turn-key project for modern plant;
II. Design and installation of highly energy efficient and productive tunnel dryer and tunnel kiln system;
III. Retrofit and modernization.
The Service we provide
Before sale: Give some advices to customer on how to build a new-brand brick plant and choose the best and economic plant according to the local situation for recovering the investment within a short time; We are also responsible for the offer, flow chart, and detailed information of each machine.
In sale: We will send the technicians to coach brick making machines installation and debug machines. We also train the local operators till they can fully control them.
After sale: Regularly visit customers, solve all the problems with the machine and take advice from customers.
