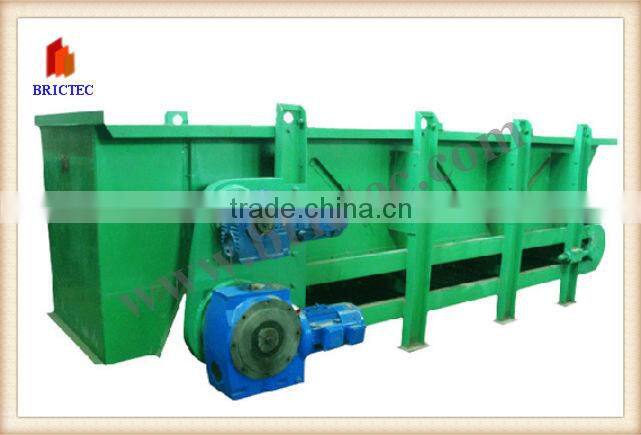

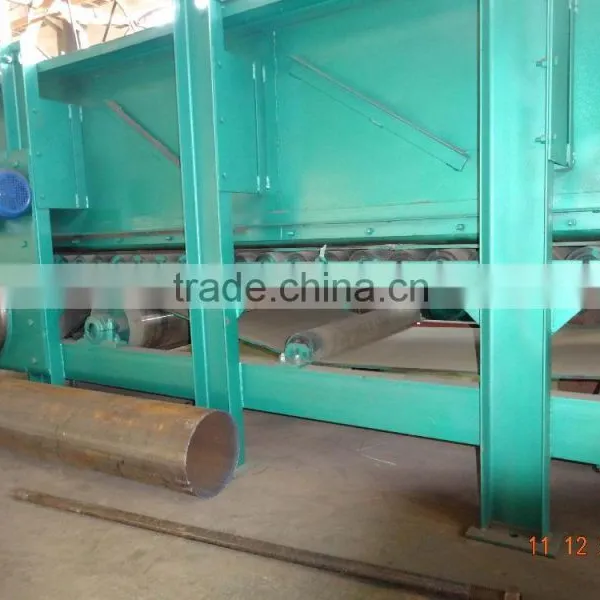

Its main application is to convey granulated solid materials i.e. quantitative feeding of granulated solid materials, and is able to make feeding uniform and improve quality and output of bricks and tiles products. Its models cover KBB650 and KBB800, wherein the numbers of 650 and 800 respectively denote the belt width of the feeder. By adopting the variable-frequency stepless speed regulation technology, it is available in stepless regulation of feeding quantity.
Technical Parameters of box feeder for brick production:
1) Economical options
No. |
Model |
Capacity (m3/h) |
Power(kw) |
W(ton) |
Size(mm) |
1 |
XGD80×450 |
10-45 |
7.5* |
2.3 |
5170×1700×1350 |
2 |
XGD70×450 |
10-40 |
7.5* |
2 |
5150×1500×1430 |
3 |
XGD60×400 |
10-35 |
5.5* |
1.8 |
4400×1490×1320 |
2) High- level Options
|
Belt Box-type Feeder |
Chain Plate Box-type Feeder |
||
Specification |
KBB650 |
KBB800 |
KB1000 |
KB1000A |
Width of Belt(Chain Plate) (mm) |
650 |
800 |
1000 |
1000 |
Movement Speed of Belt (Chain Plate)(m/min) |
0.4~2.8(Variable-frequency Speed Regulation) |
0.4~2.8(Variable-frequency Speed Regulation) |
0.4~2.8(Variable-frequency Speed Regulation) |
0.5~4.5(Variable-frequency Speed Regulation) |
Maximum Grain Size of Transport Material (mm) |
160 |
160 |
160 |
200 |
Production Capacity (m3/h) |
15~30 |
25~45 |
15~45 |
15~60 |
Distribution Power(kW) |
3+2.2 |
3+2.2 |
3+2.2 |
3+11 |

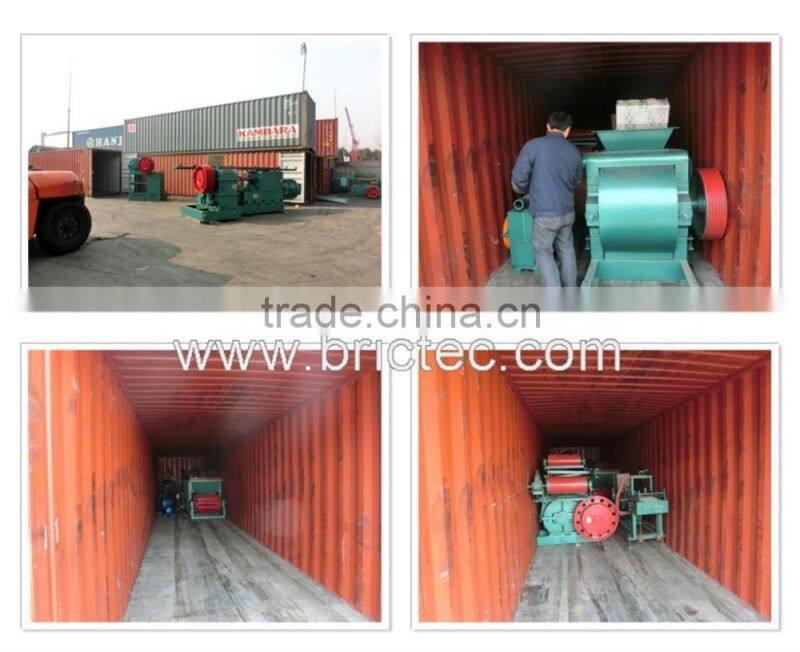

Wooden-packing for spare parts of brick making production line, such as aguers, mixing paddles, air compressor is easy damage, it necessary packed in wooden box. normally, we ship the goods by MAERSK,MSC,CMA-CGM etc. the big shipping company guarantee goods in safety.
Company Information & Service

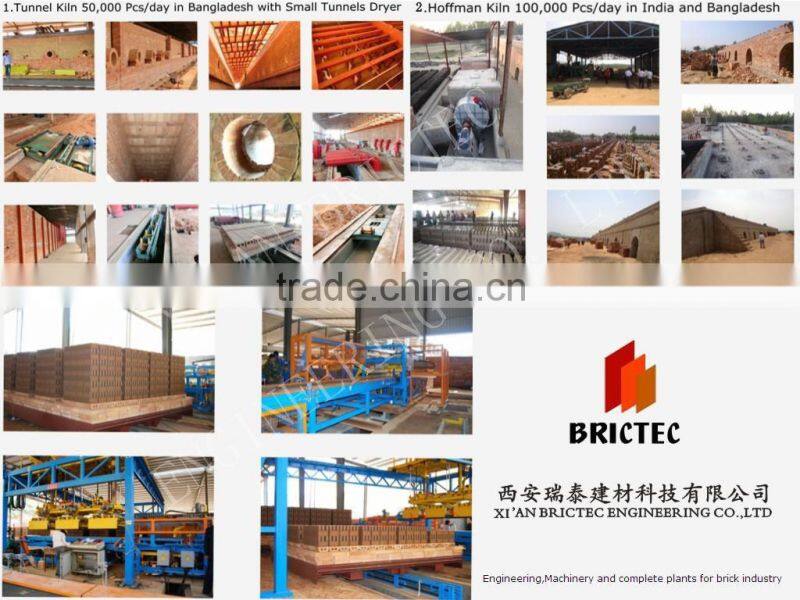

We ,Xi'an Brictec Engineering Co. Ltd., not only sales brick making machines ,but also provide customers with the overseas and domestic fired brick designing, kiln designing, factory building designing and turn-key project .
We provide solutions to brick making industry by a group of professionals who have more than 25 years of experience in this kind of industry .There are 6 professor- level engineers and 10 with a high title . We cooperates with main brick machinery factories to supply customers the most suitable machinery.
We also will provide project design and feasibility study, and suitable machinery for the design ,and help with kiln construction and supervision .Our professional technicians will be sent for project running and trial production. And our service is called one-stop service
1. what's the raw material for producing bricks?
Answer: clay, mud, gangue, shale etc.
2. how much land area for building a new brick plant?
Answer: it need above 20,000 square meters, the land area relate with capacity
3. when you need our proposal and quotation ,what you have to mention in your inquiry.
Answer: please provide daily capacity, the brick size and you want to build a new brick plant or brick making machinery only. so we can give the proposal and offer accordingly.
4. what's the Trade terms?
Answer: it can be EXW,FOB,CIF,CNF,FCA,CPT, CIP
5. how many countries exported this machinery.
Answer:Russia,Kazakhastan,Uzbekistan,Monglia,Iran,Iraq,Poland,Pakistan,India,Nepal,Bangladesh, Vietnam,Malaysia,Egypt,Argentina,SouthAfrica,Libya,Burundi,Uganda,Sudan,Venezuela, Colombia,Peru, Brazil, Center Africa, Mozambique, Bolivia, Turkmenistan, Romania
