Small Solar System DC 22-60V 500W On Grid Tie Inverter

Wenzhou Wosn Electron Technology Co., Ltd.
Small Solar System DC 22-60V 500W On Grid Tie Inverter thumbnail-1
Small Solar System DC 22-60V 500W On Grid Tie Inverter thumbnail-2
Small Solar System DC 22-60V 500W On Grid Tie Inverter thumbnail-3
Small Solar System DC 22-60V 500W On Grid Tie Inverter thumbnail-4
Small Solar System DC 22-60V 500W On Grid Tie Inverter thumbnail-5
Small Solar System DC 22-60V 500W On Grid Tie Inverter thumbnail-6
Small Solar System DC 22-60V 500W On Grid Tie Inverter photo-1
Small Solar System DC 22-60V 500W On Grid Tie Inverter photo-2
Small Solar System DC 22-60V 500W On Grid Tie Inverter photo-3
Small Solar System DC 22-60V 500W On Grid Tie Inverter photo-4
Small Solar System DC 22-60V 500W On Grid Tie Inverter photo-5
Small Solar System DC 22-60V 500W On Grid Tie Inverter photo-6
US$ 65.19 - 68.47 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WOSN
Model Number:
GWV-500W
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name WOSN
Model Number GWV-500W
Output Power 401 - 500W
Output Type Single
Size 21 x 16.5 x5.3CM
Weight 1.3KGS
Input Voltage 22V~60VDC
Output Voltage 120VAC(90-140VAC)or230VAC(190-260VAC)
Type DC/AC Inverters
Output Frequency 50Hz/60Hz
Output Current Less Than 30A Automatically Adjust
Product Features

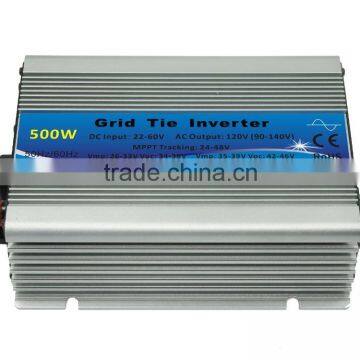

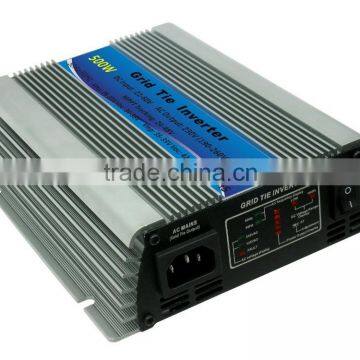

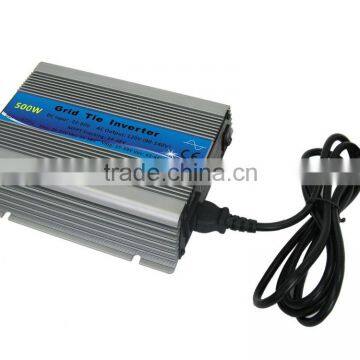

Small Solar System DC 22-60V 500W On Grid Tie Inverter

① Suitable for 36V/72 cells solar panels Vmp:35-39V,Voc:42-46V.


② Unique circuit design, choice of import industrial electronic components, higher efficiency, more stable performance.



③ Creative MPPT technology, efficiency more than 99%, faster and more sensitive reaction, more reliable.


④ Aluminum alloy housing, not rust, heat-resisting and cold-resistant as well as anti-corrosion.






⑤ Adopting high-frequency isolation transformer type,high efficiency,and high security.


⑥ Wide input voltage (22-60VDC), classification processing for different input voltages. It can work with different DC power supplies.

Product Parameters
Installation Tips
Applications Diagram

① Work with 36 cells solar panel (Vmp: 18-21V, Voc: 20-24V)

② Work with wind turbine, output DC voltage is fit in with the range as specified and a24V charge controller needed to be used if the wind turbine without build-in AC TO DC charge controller.

③ Work with battery, PV module and wind turbine charging the battery and battery discharging to inverter for converting AC power which will feed into power grid.

Packing & Delivery
Packing Accessory
Microinverter, AC Cord, User Manual,Warranty Card
Mechanical Size
21*16.5*5.3CM
Net Weight/PCS
1.3KGS/PCS
Inner Box (L x W x H)
31*21*11.5CM
Carton(L x W x H)
42*31.5*35.5CM,6PCS/CTN, 8/11KGS
Post Service
Carrier
Est. Delivery Time
Express
DHL,FedEx,UPS,TNT,EMS
6-13 Days
Special Line
Russian Air,Russia Express,Posti Finland
27-39 Days
Others
Our Cooperative Shipping Agents
7-30 Days
Related Products

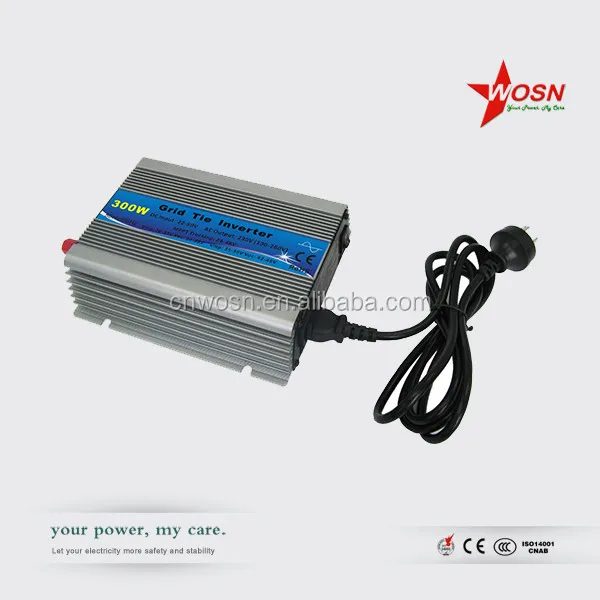

GWV-350W


MGI-800W


MGI-1000W


SMG-260W


WMVC-300W


WVC-1200W


Our Service

Our Power Inverters Include:

Off Grid:
①  Pure Sine Wave: 200W-8000W
②  Modified Sine Wave: 200W-5000W


On Grid:
①  Micro Gird Tie Solar Power: 200W-1000W
②  Wind Power: 250W-2000W
③  Solar Pump Inverter: 750W-100KW
