Help CenterEco Friendly New HB23W 100-300V Induction Lamp Electronic Ballast
Related Products
-
NEW LAMP Square Type Induction Range Electrodeless Low Comsumption 250W Dimming LVD Induction Energy Saving LampUS$ 102.85 - 120.27MOQ: 1 Set -
E27 E40 Energy Saving and Low Frequency Eco Friendly Induction LampUS$ 33.71 - 41.73MOQ: 10 Sets
-
New Model 40-100W Induction Ceiling Light(UL CUL CE CCC CB ROHS EMC)US$ 10 - 100MOQ: 1 Piece
-
IP43 100 to 300V 40W Induction Ceiling Light FixtureUS$ 10 - 100MOQ: 1 Piece
-
HB40w DC12v Low Frequency and High Stability Street LampUS$ 40.13 - 48.15MOQ: 10 Sets
Specifications
1,CE LVD EMC CCC UL ISO90012,Delivery Time:3-15 Days
3,Warranty:5 Years
4,Eco friendly
lamp ballast

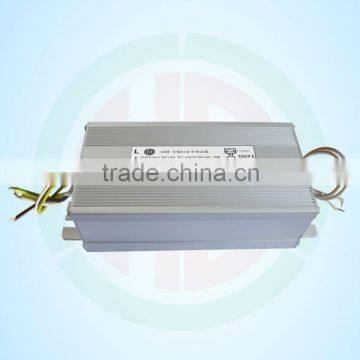

eco friendly new HB23W 100-300V induction lamp electronic ballast
Technical parameter- induction lamp electronic ballast
| photo | power | voltage | current | power factor | shape dimension |
|
|
23W | 120V AC | 0.32A | 0.6 | Φ 57.6MM |
| 23W | 220V AC | 0.12A | 0.9 | ||
| 23W | 277V AC | 0.09A | 0.9 | ||
|
|
23W | 100-300V AC | 0.24-0.08A | 0.98 | 175*70*50MM |
| 23W | 12V DC | 2A | ///// | ||
| 23W | 24V DC | 1A | ///// |
HB induction lamp -Technical specification- induction lamp ballast 12V 24V and AC 120V 220V 277V
1.The main frequency output is 210KHZ
2. Power frequency is 50/60HZ
3. Passed the standard of EMC Eectromagnetic Radiation test and EMI Conduction Test
4.Passed one million times switch on-off test
5.The distance between ballast and tube should be less than 10meters
6.With the standard of GB19510.4-2009,GB19510.1-2009,GB17743-2007,GB17625.1-2003and GB/T15144-2009,QB/T2871-2007
7. Wide Voltage,overcurrent and overvoltage protection;
8. Ten years manufacture demand and theoretical design
9.Provide five years quality warranty
Working environment temperature: -35°C-70°C
Working voltage range: 1, DC 12V 24V 36V voltage range is +-25%
2, AC 120V 220V 277V 347V 480V voltage range:+-15%
Attention:
1 Please connect tube and ballast with same wattage.
2Tube should be installed in the lamp shade with shield function.
3 Ballast should be installed on the plate directly or the box outside the lamp shade. And please fix ballast horizontal or vertical, do not sloping.
4 Prohibit to power-on ballast without tube.
5 Keep wire connected well between tube, ballast and lamp shade.
6 Tube’s temperater is high enough, before repair, please cut-off power first, and stay tube after cooling, avoiding to be get a burn and electric shock accidents
7 Prohibit to change the connection between tube, ballast and fixture during power supplied.
8 The installation staffs must possess Electrician Operation Certificate
