mushroom lamp Induction charging lamp M type 40W Compact induction lamp

Specifications

1,5Y warranty,no flickering PF>0.9
2,ISO9001 CE CCC UL
3,e-cofriendly
4,OEM, fast delivery
Compact induction lamp

mushroom lamp Induction charging lamp M type 40W  Compact induction lamp

 Specification  of  tubes

shape	model	lm	plm	shape dimension	innerpacking size	inner packing weight	lamp base
M-type	HB40W-MA	2800	3900-4600	172*154*170MM	240*225*190MM	0.96KG	E27 E40

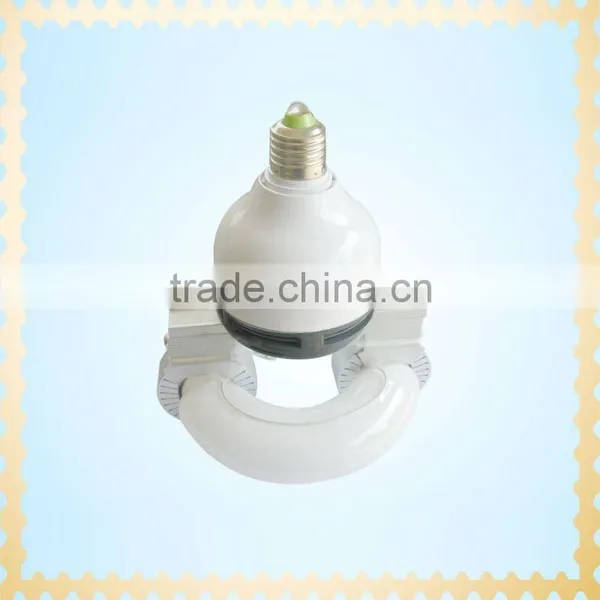

Photos for MA and MB tube





                                       MA                                                                               MB

Specification for ballast

shape	model	voltage	current	power factor	shape dimension
Round	HB40WRI	120V	0.55A	0.6	Φ80MM
	HB40WRD	220V	0.20A	0.9	Φ80MM
	HB40WRE	277V	0.16 A	0.9	Φ80MM

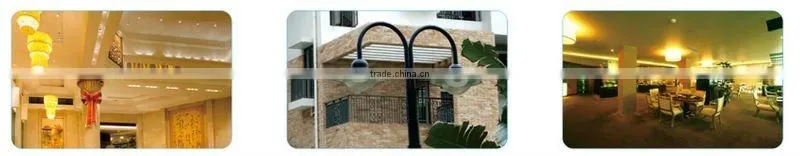

Application

 HB induction lamp -Technical specification

1.The main frequency output is 210KHZ
2. Power frequency is 50/60HZ
3. Passed the standard of EMC Eectromagnetic Radiation test and EMI Conduction Test
4.Passed one million times switch on-off test
5.The distance between ballast and tube should be less than 10meters
6.With the standard of GB19510.4-2009,GB19510.1-2009,GB17743-2007,GB17625.1-2003and GB/T151442009,QB/T2871-2007
7. Wide Voltage,overcurrent and  overvoltage  protection;
8. Ten years manufacture demand and theoretical design
9.Provide five years quality warranty
Working environment temperature: -35°C-70°C
Working voltage range: 1, DC 12V 24V 36V    voltage range is +-25%
                    2, AC 120V 220V 277V 347V 480V   voltage range:+-15%
