Specifications
1.CE,CB, LVD,EMC,CCC,ISO90012.High-efficiency,Energy-saving
3.Warranty:5 years
OEM
electrodeless lamp
Super long life 150W electrical lamp round energy saver induction Electrodeless lamp
Feature-induction electrodeless lamp-electrical lamp
1.Super-long life:No electric pole,used the IC technology,lifetime may above 100,000 hours
2.High Lighting Efficacy low light decay:The light effect is above 80LM/W
3.Quick start,No flickerng:Eliminate eye fatigue
4.Excellent color rendering:Above 80
5.Rich in color:Many kinds of warm color can be used
6.Color temperature:2700-6500K
7.Rated luminous flux:12000
8.Effective luminous flux:15500-18000

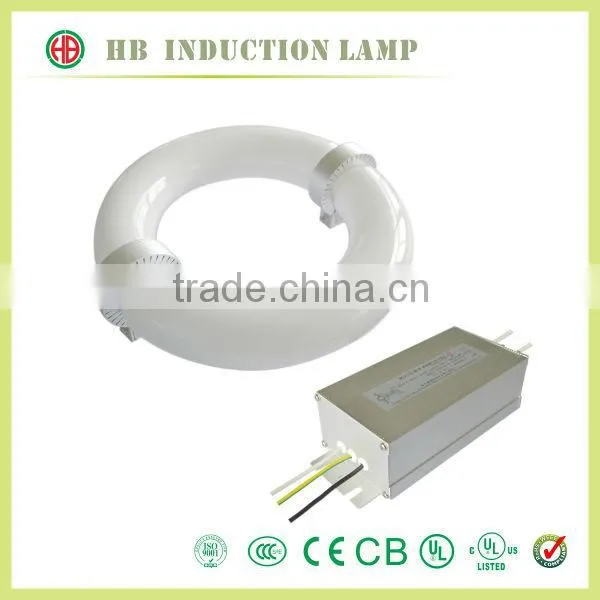

Tube+Ballast == energy saver induction Electrodeless lamp
| Model | Voltage | Current | Power factor | Shape dimension | Working environment temperature | install distance between tube and ballast |
| HB150W | 100-300V | 1.53-0.51A | 0.98 | Tube:300*274*100mm Ballast:175*103*50mm |
-35-70 centigrade | <10M |
| HB150W | 277V | 0.6A | 0.98 | |||
| HB150W | 347V | 0.48A | 0.9 |
energy saver induction Electrodeless lamp wiring Instruction
1.Firstly should connect the tube and ballast as the instructions, then connect the ballast’s “L” and “N” with the power, avoid loading opening power supply.
2.The power of the tube must the same as the power of the ballast.
3.Yellow and green wiring is earth-wire, must strictly connect with earth or enclosures of luminaire.
4.Attention the insulation measure for the ballast and tube if using on small and closed luminaire, otherwise reduce the lamp’s life and stability with high temperature

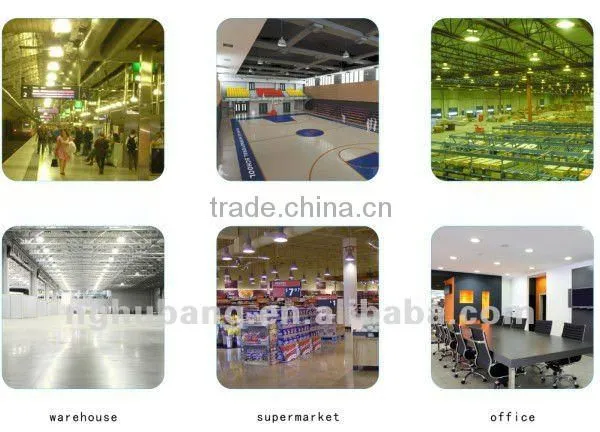

Application

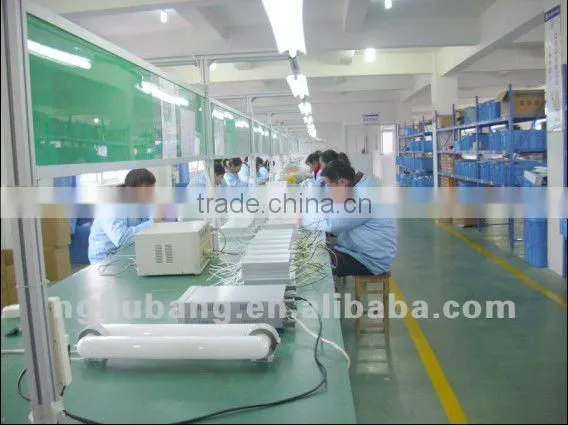

Our Company
