Help CenterHB-DW201A 40w 60w Low Frequency Induction Ceiling Lamp
Related Products
-
HB-DW201B 80w 100w Low Frequency Induction Ceiling LampUS$ 62 - 82MOQ: 2 Sets -
HB-CL202 40w 60w 80w 100w Low Frequency Induction Ceiling LampUS$ 52 - 85MOQ: 2 Sets
-
HB-CL204 120w 150w 200w 250w Low Frequency Induction Ceiling LampUS$ 81 - 125MOQ: 2 Sets
-
HB-AE201 40w Lanti-explosion LampUS$ 52 - 85MOQ: 2 Sets
-
HB-TN202 200w 250w Low Frequency Induction Flood LightUS$ 97 - 145MOQ: 2 Sets
Specifications
1.ceiling lamp2.CE CCC CB UL CUL ROHS
3. 100-300V
4. 50%~75% cost savings,long lifes,5 years warranty

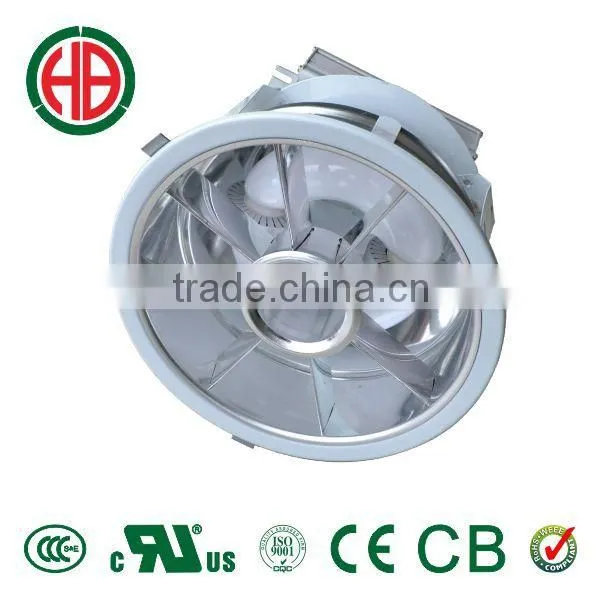

HB-DW201A 40w 60w low frequency induction ceiling lamp
1. Wide voltage range design(100-300V): 40-400W all series wide voltage range design (100-300V), which entirely meet the requirements using in 100V, 120V, 220V, 240V, 277V grid.
2. Designed according to electromagnetic compatible circuit standard: EMC meet GB17625, EN55015 standard.
3. Outdoor special protect function: Add the thunder and anti-surge current function; Insulation Paint process is used on electronic ballasts, which can dampproof, dustproof, anti-oxidation to ensure the lifetime of the outdoor products.
4. Protect function under the abnormal condition (open circuit, electric leakage, short circuit): No high voltage, heavy current, high-power appear during the protect process, improve the product stability, which ensure that the ballast won’t be damaged if the tube load is under any abnormal conditions.
5. Smart sweep frequency start:: Ensure every lights can be lighted up while they are used on a large scale. Avoid the circumstance that the light cannot work normally because of bad environment or voltage instability.
6. High quality import electronic device and IC design: Good stability, good warranty of product lifetime. For example, The United States stmicroelectronics Co.,Ltd FET. The U.S. IR chip companies, electrolytic capacitor Nichicon Corporation of Japan, Taiwan thick sound resistance, capacitance Singapore, etc.
7. High power factor: The power factor of AC external induction lamps 23-400W is 0.98, input current is the smallest under equal power.
HB-DW201A
Type |
Input Voltage (V) |
Current (A) |
Power Fator |
Efficiency (lm/w) |
CT(k) |
Color Index |
Ballast size (mm) |
tube size (mm) |
40W |
100-300 |
0.41-0.14 |
0.98 |
80 |
5000 |
80 |
175*70*50 |
172*154*97 |
60W |
100-300 |
0.61-0.2 |
0.98 |
80 |
5000 |
80 |
175*70*50 |
172*154*97 |
Work Frequency: 230KHz
LIGHT FIXTURE
Type: HB-DW201A
Category: Ceiling Light

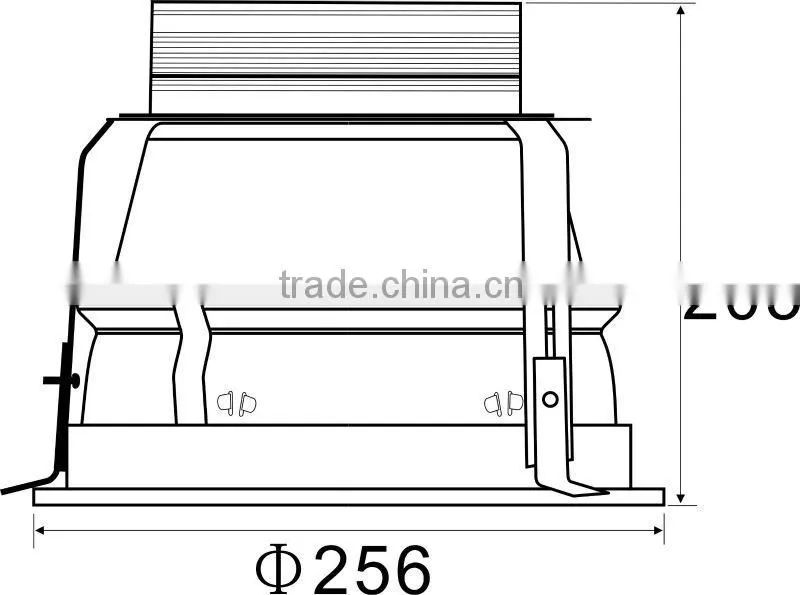

Size: Φ256*H205mm
Package Size: 265*265*220mm
Net Weight: 1.8kg(40W/60W)
Gross Weight: 2kg(40W/60W)
Lamp source: HB Induction Lamp(round)
Power: 40W-60W
IP grade: IP65
HB-DW201A include Tube, Ballast,Fixture.
Applications:
Shopping malls, Supermarkets, Hotels, Offices, Conference Rooms, Department Stores, Exhibition Centers, Villas and other indoor lighting

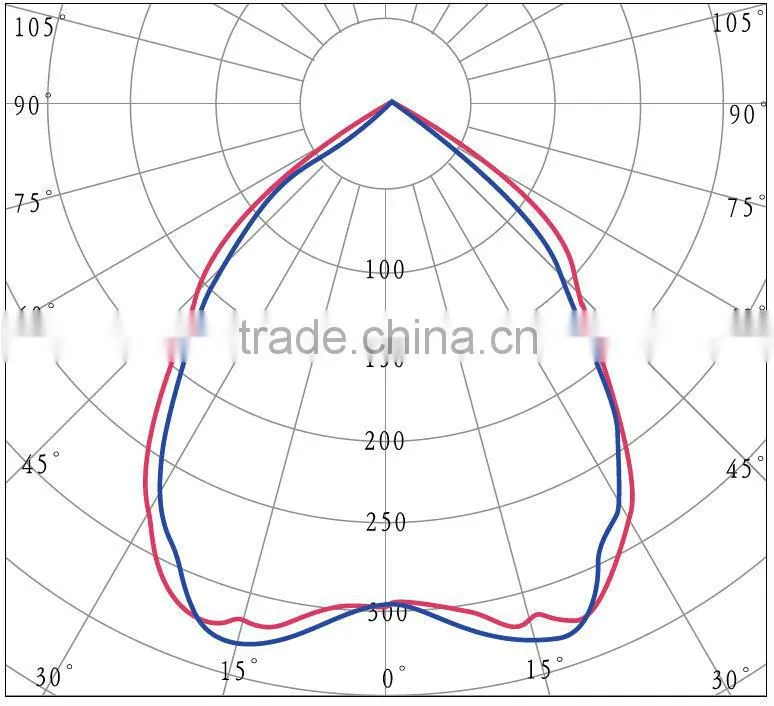

Light Distribution Curve Engineering Figure
Structural features:
1. Use high quality imported cold-rolled steel, light body forming fine craft.
2. Use high-quality high-purity aluminum reflector cup, a higher light reflectivity, long-term use and not easy to change color.
3. Install reliable and safe.
4. Match up our company HB rectangular, round lamp, with high luminous efficiency, long life, good color,stable and soft light, no flicker, wide energy-saving, color temperature range of features.

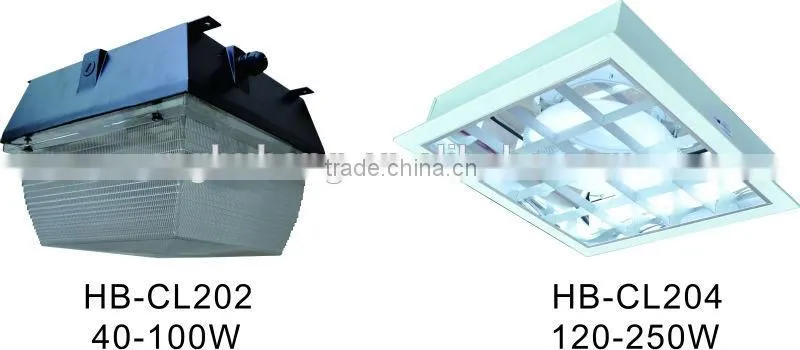

Other Smilar HB Fixtures:
