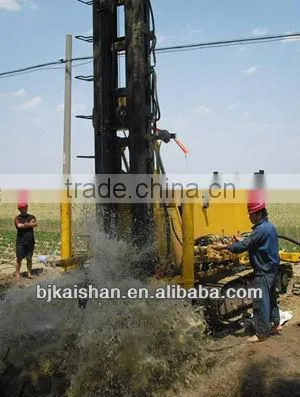

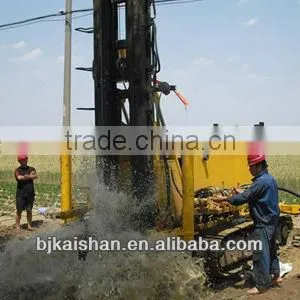

Water Well Crawler Drilling KW20 100m~200m
- 100 Set / Sets per Month
- NINGBO TIANJIN SHANGHAI
- T/T
- Vertical Facing And Centering Machine VZ820550
- CNC Cylindrical Grinding Machine MA2060/MP2060
- Inner Race Milling Machine QYXB125
- grey color interlocking kelly bar, drill pipe for Bauer Sany Soilmec XCMG Casagrande
- Friction kelly bar,yellow color kelly bar for rotary Bauer Sany Soilmec XCMG Casagrande
- new design friction kelly bar, Rotary drill pipe for Bauer Sany Soilmec XCMG Casagrande
Product Details
Condition: | New | CNC or Not: | Normal | Drilling Speed: | 60rpm-105rpm |
Place of Origin: | Beijing, China | Brand Name: | Kaishan | Model Number: | KW20 Water Well Drill Rig |
Voltage: | 380v | Power(W): | 92kw | Dimension(L*W*H): | 5100*2300*2850 |
Weight: | 7500 kg | After-sales Service Provided: | Overseas service center available |
Product Description
Introductions:
KW10 Water Well Drill Rig is a light, efficient and multifunction drilling plants. The power system is provided by the air compressor. It is
well received by professionals of drilling well, irrigation well, geothermy well and other well holes, especially for water intake projects in
mountain areas and lithostrome. The drill rig can drill holes in various stratum and the diameter of the hole reaches 254mm. It uses the
latemodel hydraulics, large torque hydraulic motor and cylinder system powered by wellknown multicylinder engine. Its unique pump
package design easy to maintenance and lower cost of upkeep. Its centralized hydraulic control board facilitates operation. The drill
rig adopts crawler chassis and cross-country performance is very well.
Specification of KW10 Multi-Function Well Drill Rig
Structure | Parameters |
Diameter of Hole | Φ230-300 mm |
Drilling Depth | 150 -200 m |
Air Consumption | 16-30 m3/min |
Working Pressure | 1.05-2.46 Mpa |
Ground Clearance | 280 mm |
Support Cylinder Stroke | 1000 mm |
Feed Cylinder Stroke | 2400 mm |
Feed Power | 45000 N |
Lift Power | 95000 N |
Speed of Rotator | Low: 60 rpm; Quick: 105 rpm |
Climb Capacity | 25 |
Traveling Speed | 0-2.5 km/h |
Weight | 7500 kg |
Dimension | 5100×2300×2850(L*W*H) |
Specification of LGCY-26/20 Screw Air Compressor
Structure | Parameters |
Complete Machine | |
Model | LGCY-26/20 |
Capacity | 26(m³/min) |
Working Pressure | 2.5(Mpa) |
Weight | 4500(kg) |
Dimension L×W×T | 4600×1950×2850(mm) |
Tyre Size × Number | 7.50-16×4 |
Diesel Engine | |
Diesel Manufacturer | Cummins |
Type | 6LTAA8.9-C360 |
Model | Vertical, line,Water-cooled |
Breathing Method | Inter-cooling |
Bore × Stroke × Cylinder | 114×145×6 |
Rated Power | 265 (kw) |
Diesel Oil Capacity | 27.6(L) |
Tank Capacity | 400(L) |
Voltage | 24(L) |
Air Compressor | |
Model | SKY11G194 |
Compress Grade | 2 |
Compressor Oil Capacity | 48 |
Air Supply Valve Specification × No. | G2×1, G3/4×1 |
