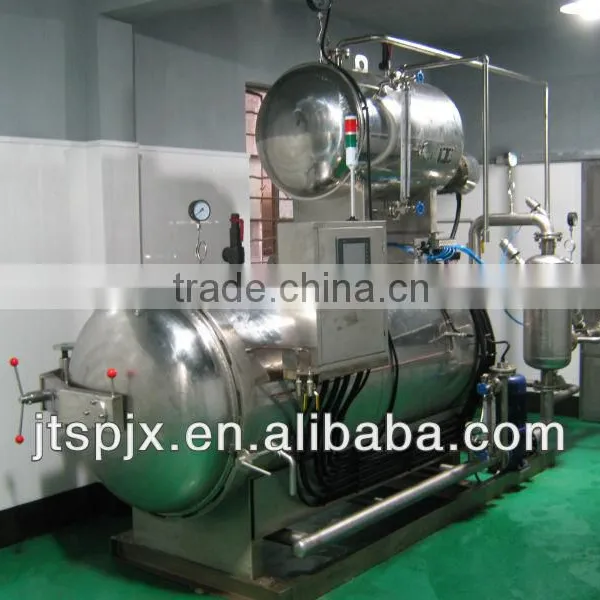

Computer Automatic Water Spray Used Machinery Equipment

Computer Automatic Water Spray Used Machinery Equipment thumbnail-1
Computer Automatic Water Spray Used Machinery Equipment photo-1
US$ 15,000 - 70,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
JINTAI
Model Number:
JT-PL
Contact Supplier Request Quote Chat Now
Zhucheng Jintai Food Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name JINTAI
Model Number JT-PL
Condition New
After-sales Service Provided Engineers available to service machinery overseas

 computer automatic water spray used machinery equipment





Applicable Scope:

      1. Glass container: glass bottle, ceramic bottles

      2. Mental container: tin can

      3. Plastic container: PP bottle, HDPE bottle

      4. Soft package: aluminum foil bag, high temperature cooking bag

      5. Gas-packing boxes

 computer automatic water spray used machinery equipment







Model:

diameter(mm)

length (mm)

volume(m³)

Body Thickness

(mm)

water pump



model

quantity



Sterilizer pot

Soft water pot



φ500

800

0.20

4

2

DN20

2



φ600

1000

0.35

4

2

DN32

2



φ700

1200

0.57

4

2

DN40

2



1500

0.69

4

2

DN40

2



1800

0.80

4

2

DN40

2



φ900

1800

1.37

4

2

DN65

2



φ1000

2200

2.03

4

2

DN65

2



2400

2.18

4

2

DN80

2



2600

2.34

4

2

DN80

2



3000

2.66

4

2

DN80

2



φ1200

2700

3.56

5

2

DN80

2



3000

3.90

5

2

DN80

2



3600

4.58

5

2

DN100

2



4000

5.03

5

2

DN100

2



φ1300

3000

4.62

5

2

DN100

2



4000

5.95

5

2

DN100

2



5000

7.27

5

2

DN100

2



φ1500

4000

8.04

6

2

DN125

2



5000

9.80

6

2

DN125

2



6000

11.58

6

2

DN125

2





Design pressure

0.35 Mpa

Maximum working pressure

0.30 Mpa

The material of pot body

Sus304

Design temperature

147°C



 computer automatic water spray used machinery equipment        computer automatic water spray used machinery equipment



Characteristic

1. It is heated directly and cooled indirectly. The cooling water and process water are not mixed, avoiding the secondary pollution of food. It does not need water processing chemicals and the high temperature can contribute to the sterilization in a short time.

2. A small quantity of the process water can circulated quickly to amount to the expected sterilizing temperature.

3. It produces low noise, creating quiet and comfortable working environment.

4. It takes perfect control of the temperature. During the whole process, the pressure is constantly adjusted to the change of the pressure inside the packages, which make the deformability of the packages can go down to the lowest. It is especially suitable for the packages with air.

5. The system preheated by process water (optional) can ensure that the temperature of the heat-insulated and heat-filled products rise continuously.

6. With the most high quality flange and capped end, cool shaped in one time, and by vibration, so not to blend at all.

7. Pot with grinding technology to improve the surface hardness and sloshing .especially chlorine in cooling

8. Advanced and stable SIEMENS control system, ensure our customer can find the supply chain in time, keep the problems rate low.

9. High-top equipment and strict production control system, to make sure our machine quality perfect.

10. The function of sterilization by steam (optional).

11. It can save space and labor power, and is operated easily (which can operate just with cabinet)

12. It is suitable for food industry such as beverage which passes in and out automatically in mass production. It is more suitable for automatic equipment in unmanned workshops in the future.





computer automatic water spray used machinery equipmentcomputer automatic water spray used machinery equipmentcomputer automatic water spray used machinery equipment
