Home > Products > Analog CCTV Camera > 1/3'' CMOS Small Night Vision Camera
1/3'' CMOS Small Night Vision Camera
- 10000 Piece / Pieces per Month
- Shenzhen Port
- Credit Card
- Hot Sell 700TV Line Long Range Night Vision Japan CCTV Camera
- Sony CCTV Camera With Voice Recorder
- IR Night Vision 700TVL Security CCTV Camera With Sim Card
- 1/4 CMOS 800TVL Smallest Wireless CCTV Camera
- Best Selling 2.8-12mm Zoom Lens Full HD Waterproof IR CCTV Camera Price List
- Hot Sale 1/4 CMOS 700TVL 180 Degree Viewing Angle CCTV Camera
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Tonghai | Model Number: | TH-1025 |
Type: | Analog Camera | Style: | Dome Camera | Sensor: | CMOS |
Technology: | Infrared | Special Features: | Waterproof / Weatherproof |
Product Description
1/3'' CMOS Small Night Vision Camera
Product Description:
1/3'' CMOS Small Night Vision Camera
- Adopt Color 1/3'' CMOS chip
- Crystal clear resolution 1200TVL with powerful night vision to 50m for indoor and outdoor use
- IRC auto switch for day night funtion
- Lens 3.6/4mm/6mm/8mm/12mm/16mm optional
- Mini Illumination:0.001 Lux (IR ON)
- Built-in IR led and Sensor
1/3'' CMOS Small Night Vision Camera Specification:
Sensor | Color 1/3'' CMOS 1099 |
TV System | NTSC/PAL |
Effective Pixels | NTSC: 976(H)x494(V) & PAL:976(H)x582(V) |
Resolution | 1200TV Lines |
Scanning System | 2:1 Interlace |
IR LED | 3 pcs* Dot IR-LED |
Minimum Illumination | IR on 0.001 Lux |
Infrared Illumination | Visible up to 50m |
Infrared Wave Length | 850nm |
S/N Ratio | More than 50dB (AGC off ) |
Gamma | 0.45 |
Auto Gain Control | Built-in |
Fixed Lens | 8mm lens(3.6mm4mm/6mm/8mm/12mm/16mm optional) |
Operating Temperature | -20C ~50C / -5F ~ 120F |
Power | 12V DC |
Video Out | 1.0V p-p 75O, BNC Connector |
Auto Iris | Video / DC |
Back Light Compensation | OFF/ON/BLC/ HLC |
Picture Adjust | Mirror/Brightness/Contrast/Sharpness/Hue/Gain |
ATR | ON/OFF |
Shutter/ AGC | Auto/Manual |
Exposure | Auto |
Motion Detection | OFF/ON (Detect sense/ Area Select) |
Day / Night | True Day and Night (Auto/ Day / Night / Ext.) |

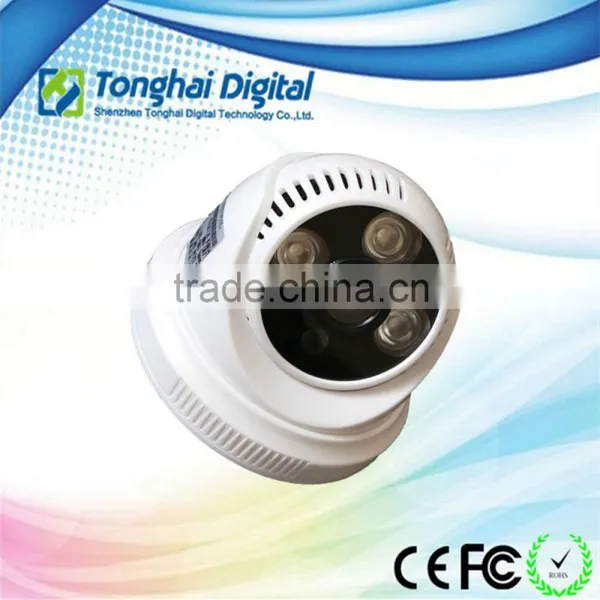

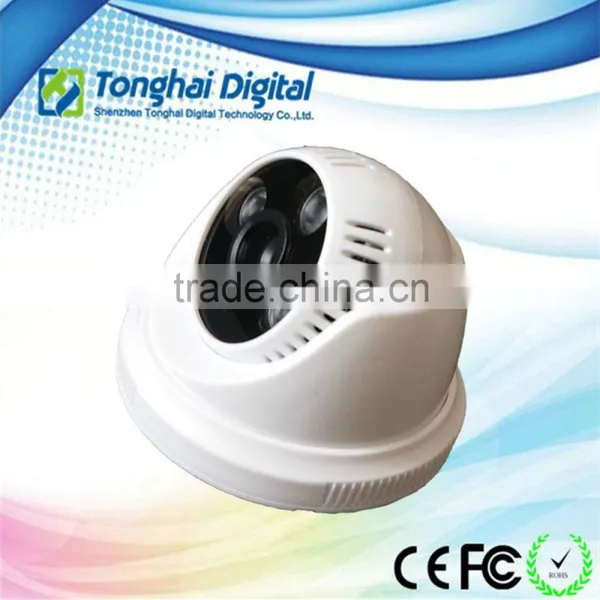

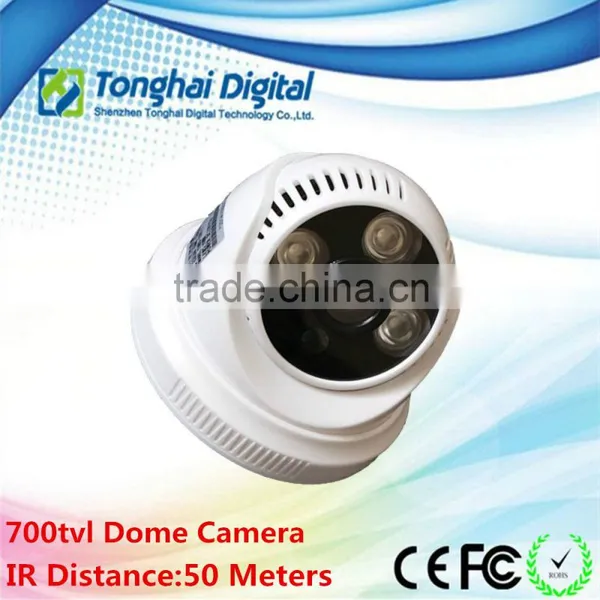

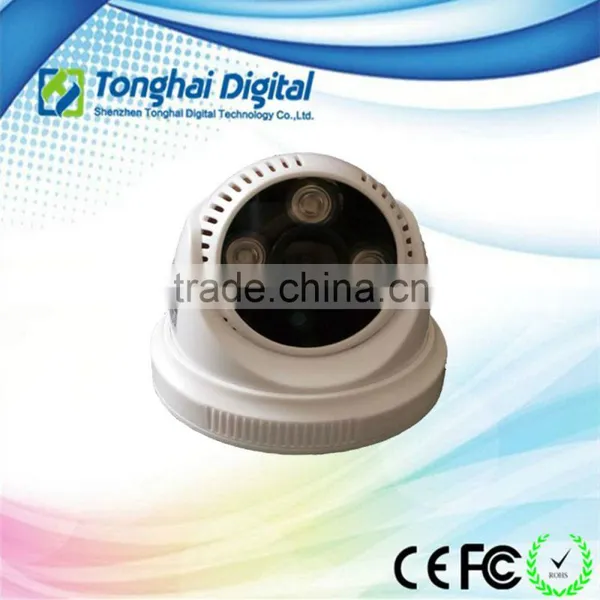

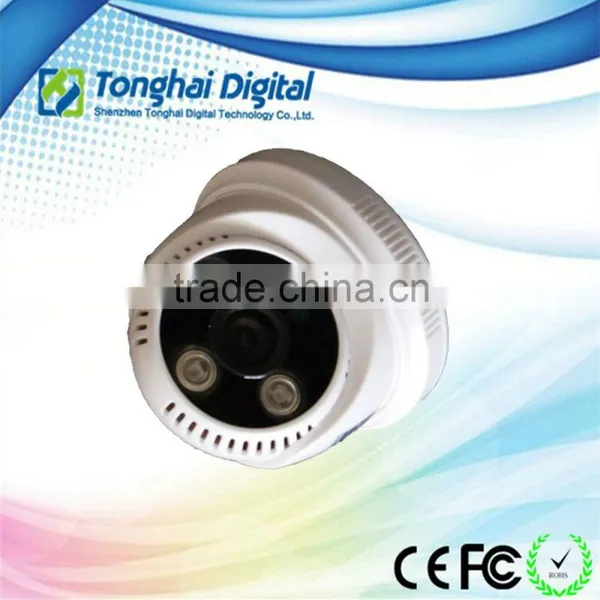

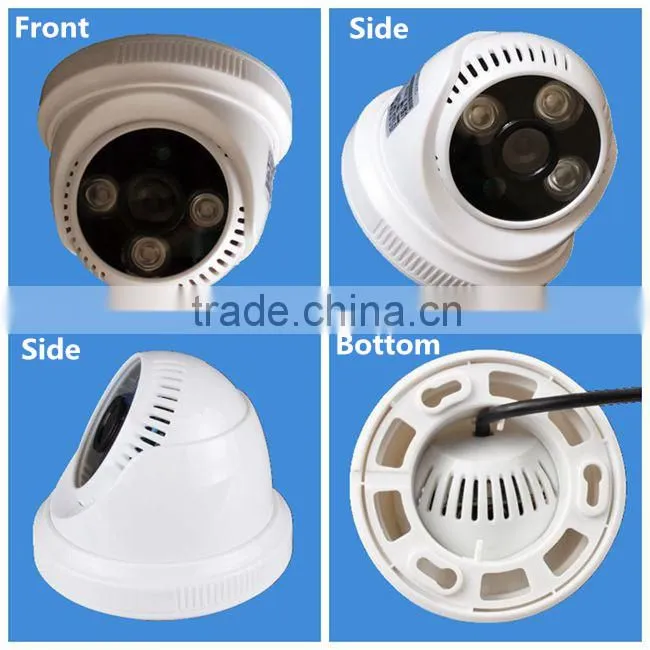

1/3'' CMOS Small Night Vision Camera Picture:
1/3'' CMOS Small Night Vision Camera Lens Choice:
Demo Image:
More analog and IP Cameras:
Accesorries or Parts for Cameras
Packing & Shipping:
Packing:
Our brand on CCTV Camera and packing box will be used if customers do not ask for their own ones.Customized camera housing and packing box is available too.
Shipping:
1.5 to 7 days for delivering the goods after confirmation of payment.
2.Tracking number will be sent once shippment arranged.
Our Service:
1.24 hours online service.
2.You're welcome to visit our websit:http://th-digital.en.china.cn/
3.2 years' warranty gurantee.
4.T/T(Telegraphic Transfer);Western Union and Paypal payment methods are welcome.
Company Information:
Office and certificates:
Our practical engineering project inside the garage and outdoors:
FAQ:
Q:What are the main factors for choosing right CCTV camera?
A:The main factors are definition,visible distance and nigh vision effect.
Q:How to distinguish the definition of CCTV camera?
A:The definition of CCTV camera depends on TV lines. The higher the line,the high resolution.
Q:What is the effect of led for the night vision
A:It depends on the actual situation. The darker the place,the more led light needed.
Q:How can i pay for the goods?
A:T/T(Telegraphic Transfer);Western Union and Paypal are available
