Analog High Definition IR Led Array CCTV Waterproof CCTV Camera IP66
Best Quality, Solid Technique. Excellent Solution
Product Description:
Analog High Definition IR Led Array CCTV Waterproof CCTV Camera IP66
This camera is equipped with 2 Array Leds which will activate when it is dark or low light to display and black and white night vision capabality up to 50 meters.
Adopt 1.3 megapixel CMOS sensor.
High resolution 960P provide clear images,even in the dark.
Support DC 12V input and BNC video output.
The camera are used for both indoors and outdoors.
Analog High Definition IR Led Array CCTV Waterproof CCTV Camera IP66 Specification:
Sensor |
1.3 megapixel CMOS Sensor with chip 5130 |
TV System |
NTSC/PAL |
Effective Pixels |
NTSC: 976(H)x494(V) & PAL:976(H)x582(V) |
Resolution |
960p |
Scanning System |
2:1 Interlace |
IR LED |
2pcs IR-LED |
Minimum Illumination |
IR on 0.001 Lux |
Infrared Illumination |
Visible up to 50m |
Infrared Wave Length |
850nm |
S/N Ratio |
More than 50dB (AGC off ) |
Gamma |
0.45 |
Auto Gain Control |
Built-in |
Fixed Lens |
8mm lens(3.6mm4mm/6mm/8mm/12mm/16mm optional) |
Operating Temperature |
-20C ~50C / -5F ~ 120F |
Power |
12V DC |
Video Out |
1.0V p-p 75O, BNC Connector |
Auto Iris |
Video / DC |
Back Light Compensation |
OFF/ON/BLC/ HLC |
Picture Adjust |
Mirror/Brightness/Contrast/Sharpness/Hue/Gain |
ATR |
ON/OFF |
Shutter/ AGC |
Auto/Manual |
Exposure |
Auto |
Motion Detection |
OFF/ON (Detect sense/ Area Select) |
Day / Night |
True Day and Night (Auto/ Day / Night / Ext.) |

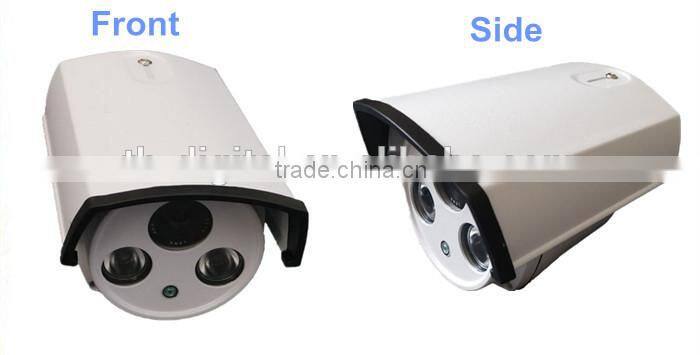

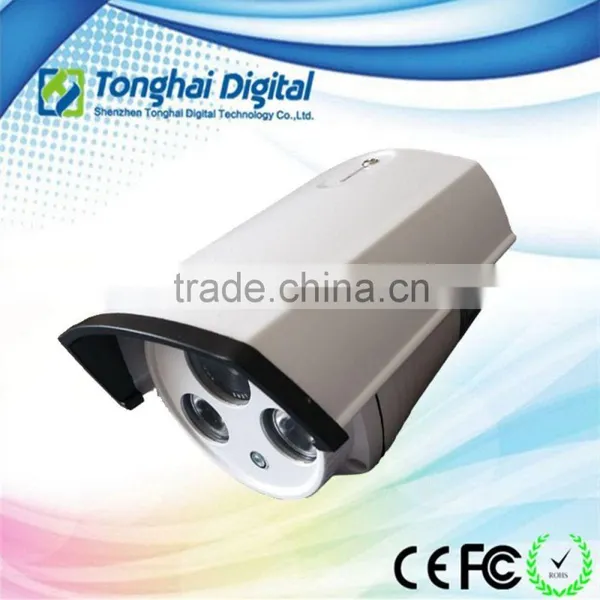

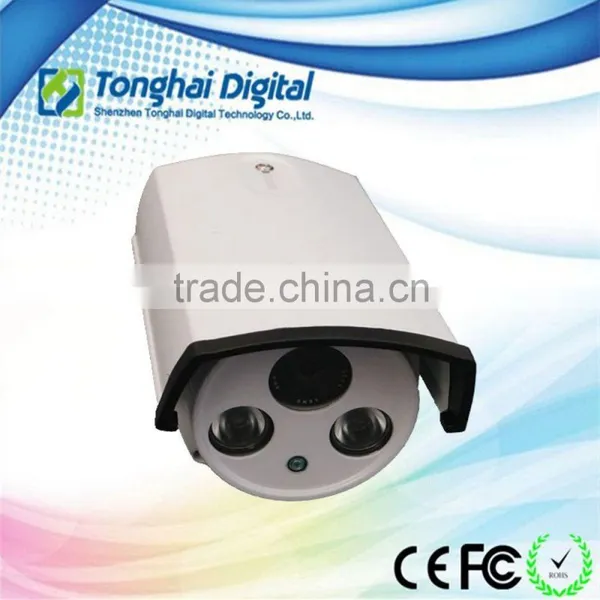

Analog High Definition IR Led Array CCTV Waterproof CCTV Camera IP66 Picture:
Analog High Definition IR Led Array CCTV Waterproof CCTV Camera IP66 lens choice:
Demo Image:
More analog and IP Camera:
Accesorries or Parts for Camera
Packaging & Shipping:
Packaging:
Our brand on CCTV Camera and packing box will be used if customers do not ask for their own ones.Customized camera housing and packing box is available too.
Shipping:
1.5 to 7 days for delivering the goods after confirmation of payment.
2.Tracking number will be sent once shippment arranged.
Our Services:
1.24 hours online service.
2.You're welcome to visit our websit:http://th-digital.en.china.cn/
3.2 years' warranty gurantee.
4.T/T(Telegraphic Transfer);Western Union and Paypal payment methods are welcome.
Company Information:
Office and certificates:
Our practical engineering project inside the garage and outdoors:
FAQ
Q:What are the main factors for choosing right CCTV camera?
A:The main factors are definition,visible distance and nigh vision effect.
Q:How to distinguish the definition of CCTV camera?
A:The definition of CCTV camera depends on TV lines. The higher the line,the high resolution.
Q:What is the effect of led for the night vision
A:It depends on the actual situation. The darker the place,the more led light needed.
Q:How can i pay for the goods?
A:T/T(Telegraphic Transfer);Western Union and Paypal are available.
