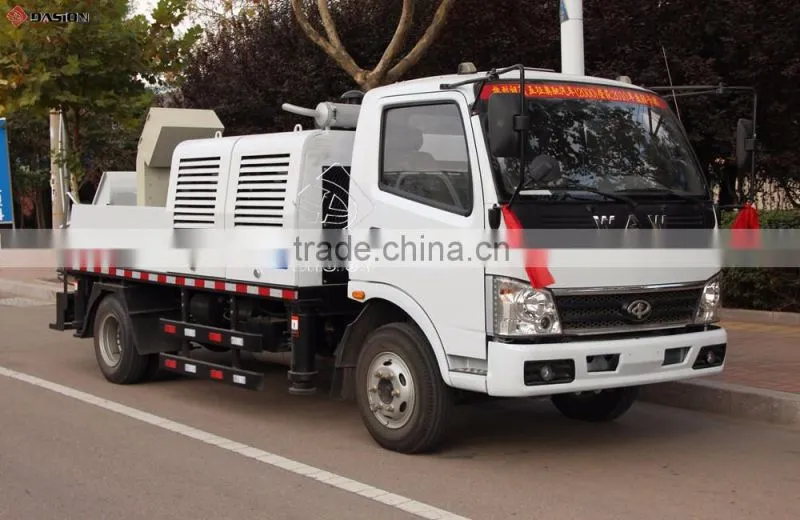

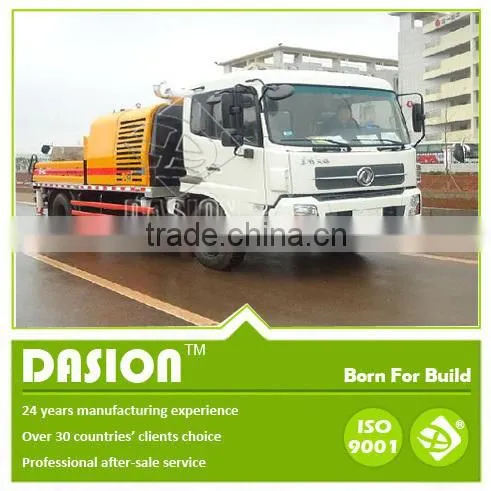

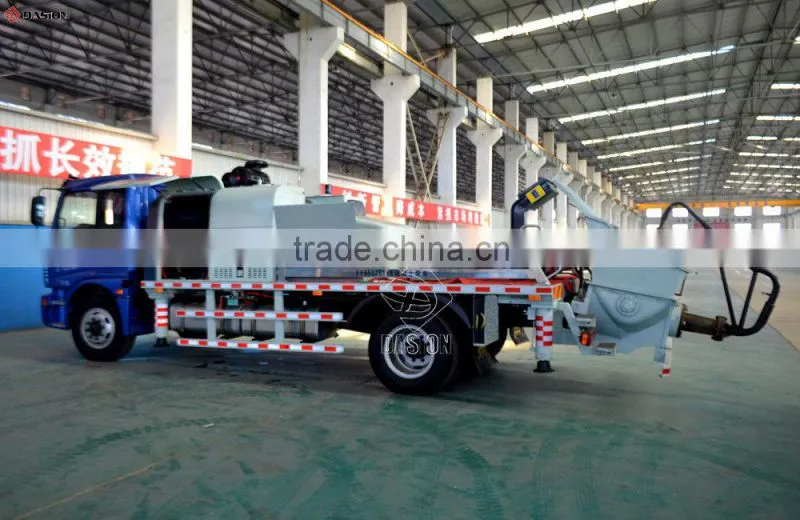

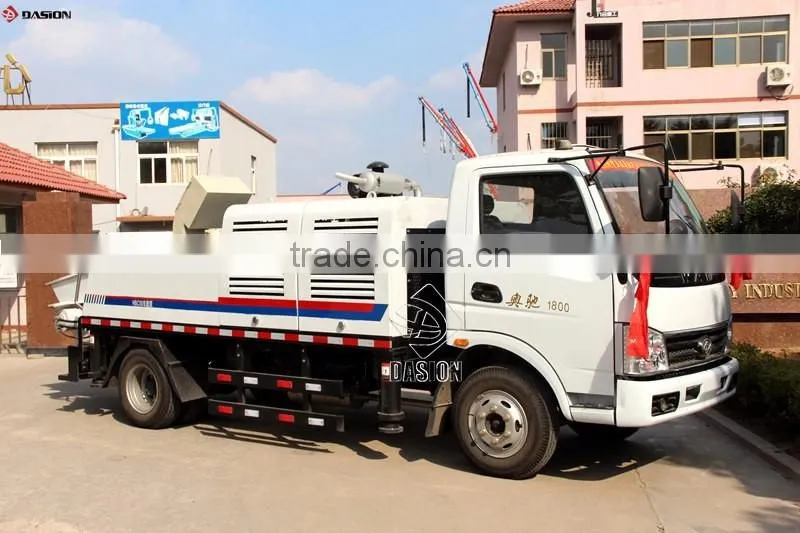

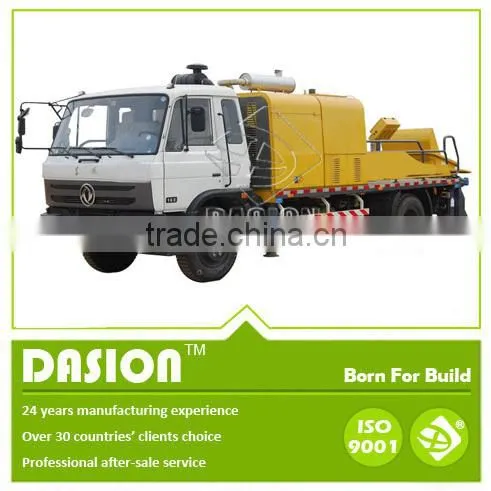

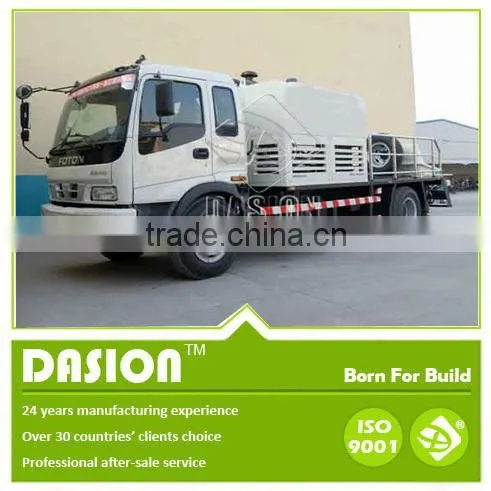

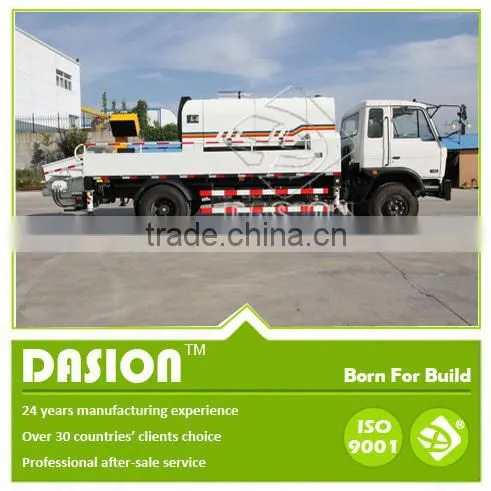

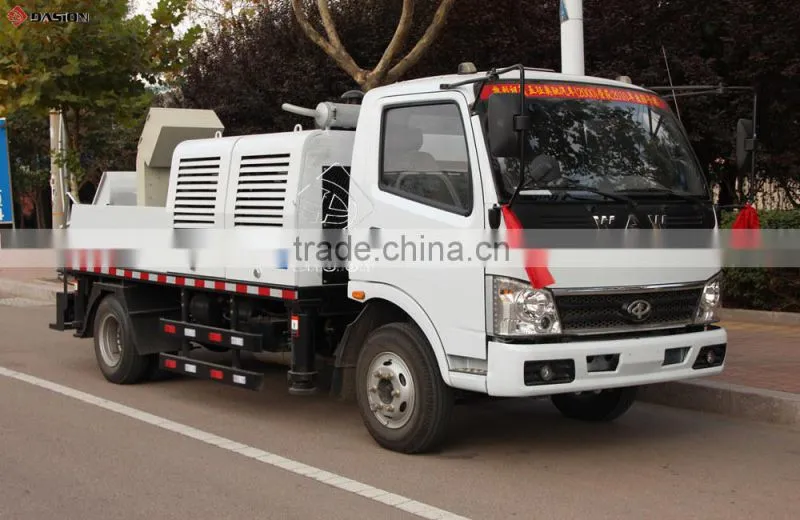

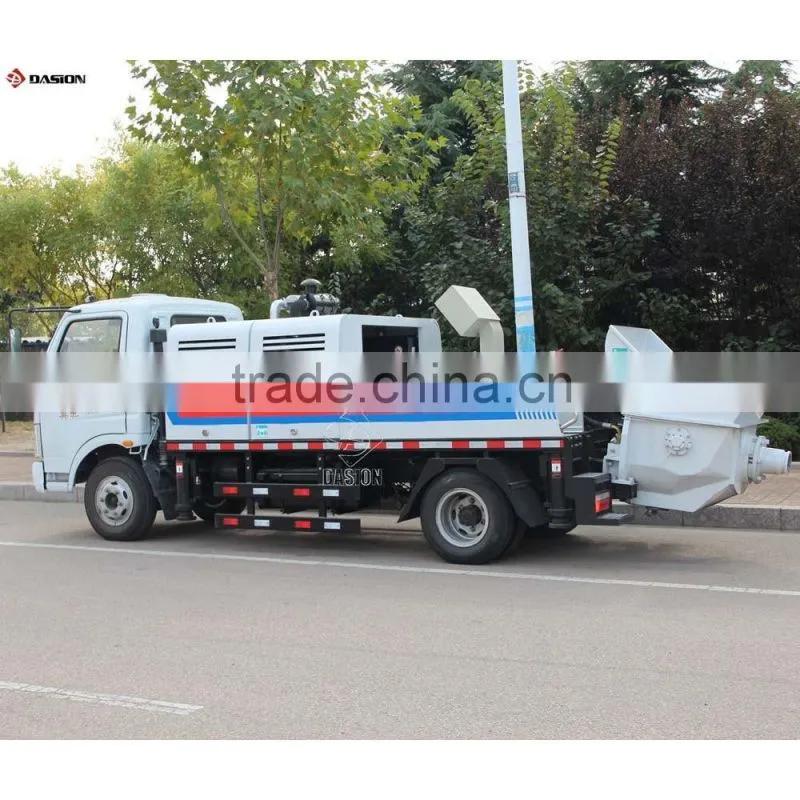

Widely used truck mounted concrete pump HBC50 for sale
Truck mounted concrete pump combines the superiority of trailer-mounted concrete pump and concrete pump truck, which is more flexible and mobile than trailer-mounted concrete pump. No need of transportation, loading and unloading, and fixed installation. Stronger pumping performance and faster pumping speed. Compared to the concrete pump truck, it enjoys the advantages of small footprint, low price, high pumping height and distance, cost-effective etc. It is suitable for small production, multi-site, complex construction environment and other conditions. Truck mounted concrete pump can choose diesel or electricity as energy flexibly, which can not only be connected to an external power supply by using top motor, but also use top diesel engine to finish pumping operation, select the power according to the actual situation.
Main Features Of Truck Mounted Concrete Pump
1. Adopt domestic famous Chassis brand Dongfeng, Wuzheng or Aochi, which is mature, reliable, powerful and economic.
2. Tops power can choose diesel or electric motor to meet the needs of different working conditions.
3. Hydraulic system: Exclusive double open hydraulic loops system, with interaction makes the machine life longer.
4. Power system: Adopt domestic famous engine brand, which has the characteristic of high cost performance, strong power, energy saving and repair timely.
5. Pumping system: The S-shaped reversing valves, hard alloy eyeglass plates and cutting rings, rubber springs which can automatically compensate the clearances between end faces all ensure a proper sealing property.
6. Control system: Wired and wireless remote control ensures the flexibility, convenience, reliability and safety of the equipment.
7. The automatic lubrication of the hopper and the concrete cylinder makes the pumping work smooth and easy.
8. The high-pressure cleaning system makes vehicle cleaning simple and easy.
Item |
Unit |
Models and parameters |
|||||
|
|
HBC50-12-56 |
HBC-100-13-162RS |
||||
Driving system |
Chassis brand/ model |
|
WUZHENG / Aochi1800 |
DONGFENG Brand/ DFL1120B |
|||
|
Fuel type |
|
Diesel |
Diesel |
|||
|
Displacement/Power |
L/KW |
85 |
4.5/132 |
|||
|
Displacement standard |
|
GB3847/GB17691 National Standard IV |
GB3847/GB17691 National Standard Ⅲ GB20891-2007 |
|||
|
Tyre model |
|
7.50 |
9.00 |
|||
|
Axle base |
m |
3.66 |
4.7 |
|||
|
Qty. of axles |
|
2 |
2 |
|||
|
Max. driving speed |
Km/h |
60 |
90 |
|||
|
Wheel base(front/back) |
mm |
1530/1600 |
1880/1800 |
|||
Pumping system |
Brand of diesel engine |
|
Tianjin LOVOL |
WEICHAI Brand |
|||
|
Diesel engine model/power |
KW |
1004-4CP01/56 |
YC6108ZGB /162 |
|||
|
Driving mode |
|
Hydraulic driving |
Hydraulic driving |
|||
|
Main pump |
|
HanChuan single pump 112/140 |
Rexroth 190 |
|||
|
Oil cylinder inner diameter × stroke |
mm |
125×80×1200 |
150×100×1650 |
|||
|
Concrete cylinder inner diameter × stroke |
mm |
200×1200 |
230×1650 |
|||
|
Oil pressure of system |
Mpa |
32 |
32 |
|||
|
Switch of H-pressure and L-pressure |
|
Equipped |
Equipped |
|||
|
Theoretical pumping pressure |
Mpa |
H-pressure |
12 |
H-pressure |
13.5 |
|
|
|
Mpa |
L-pressure |
2 |
L-pressure |
7.5 |
|
|
Theoretical pumping frequency |
times/min |
H-pressure |
8 |
H-pressure |
13.5 |
|
|
|
times/min |
L-pressure |
18 |
L-pressure |
24.5 |
|
|
Theoretic Pumping distance |
m |
Max. Vertical |
120 |
Max. Vertical |
120 |
|
|
|
m |
Max. Horizontal |
300 |
Max. Horizontal |
300 |
|
|
Fuel tank capacity |
L |
180 |
290 |
|||
|
Hydraulic Oil tank capacity |
L |
200 |
600 |
|||
|
Cooling mode of hydraulic system |
|
Fan cooling |
Fan cooling |
|||
|
Max. theoretical capacity |
m3/h |
H-pressure |
20 |
H-pressure |
55 |
|
|
|
m3/h |
L-pressure |
50 |
L-pressure |
100 |
|
|
Pumping distance (H-pressure) |
Max. Horizontal |
m |
125A pipe |
300 |
125A pipe |
880 |
|
|
Max. Vertical |
m |
125A pipe |
120 |
125A pipe |
200 |
|
Hopper capacity |
m3 |
0.6 |
0.6 |
|||
|
Feeding height |
mm |
≤1300 |
≤1350 |
|||
|
Concrete slump |
cm |
14~23 |
14~23 |
|||
|
Max. aggregate diameter |
mm |
Crushed stone:40 / Pebble:50 |
Crushed stone:40 / Pebble:50 |
|||
|
Valve |
|
S Valve |
S Valve |
|||
|
Lubrication mode |
|
Automatic |
Automatic |
|||
Overall |
Length ×Width × Height(mm) |
mm |
7200×2100×2750 |
8754×2470×2760 |
|||
Full-load total weight |
Kg |
6500 |
12000 |
||||
