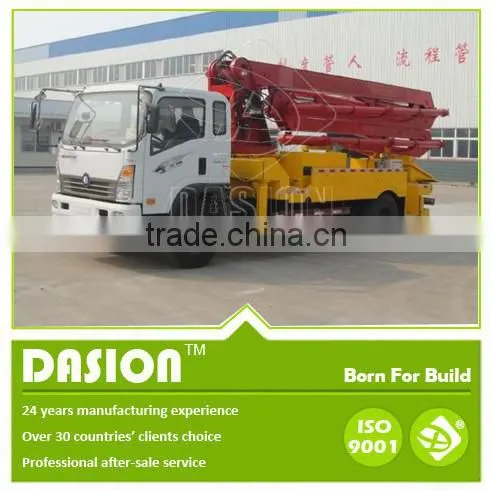

JH5025 concrete boom pump Truck for sale
JH50 series concrete boom pumps are popular small model researched and developed by our company after our HBT series trailer-mounted concrete pumps, HBC series truck-mounted concrete pumps and HGY series hydraulic concrete placing booms. They are the top-choice concrete equipment, which are widely used in tunnel, airport, seaport, high-speed rail site, beam field, bridge construction projects and so on.
Features of Concrete Pump Truck:
1. JH50 series concrete boom pumps are combined with high reliability, economy, safety and durability.
2. It has reasonable collocations for the chassis system, power system, control system, hydraulic system and pumping system.
3. Chassis is SINOTRUCK brand, strong carrying capacity, good dynamic performance and low fuel consumption.
4. Emission system is up to EURO Ⅲ standard, low noise and easy to repair.
5. It has the characteristics of flexible foldable arms, little space occupying support legs, easily movable chassis.
6. Equipped with H/L pressure switch, high outlet pressure, the whole concrete pump truck can meet the needs of long distance delivery.
Item |
Unit |
Parameter |
|
Pumping System |
Model |
|
JH5025 |
Max. Output |
m³/h |
50 |
|
Max. outlet pressure (H/L pressure) |
Mpa |
13/7.6 |
|
Rated working pressure |
Mpa |
31.5 |
|
Pumping frequency (H/L pressure) |
times/min |
14/23 |
|
Hopper capacity |
m3 |
0.65 |
|
Feeding height |
mm |
1500 |
|
Hydraulic system type |
|
Open circuit |
|
The type of distribution valve |
|
S VALVE |
|
Oil cylinder diameter |
mm |
DN125 |
|
Concrete cylinder diameter |
mm |
DN200 |
|
Hydraulic oil cooling |
|
Fan cooling |
|
Jib Structure System |
Max. placing height |
m |
25 |
Rotary angle |
° |
365 |
|
Arm foldable angle |
° |
90/180/360/540 |
|
Arms section quantity |
section |
4 |
|
Chassis and Vehicle |
Chassis model |
|
SINOTRUCK |
Wheelbase |
mm |
4700 |
|
Power of engine |
kw |
140 |
|
Rated speed of engine |
rpm |
2200 |
|
Emission standard |
|
GBIV National IV |
|
Total weight of vehicle |
kg |
15500 |
|
Overall dimension of vehicle (L*W*H) |
mm |
9650×2500×3535 |
|
Others parameter |
Hydraulic oil hopper capacity |
L |
300 |
Water tank capacity |
L |
300 |
|
Lubricating mode |
|
Centralized automatic |
|
Control mode |
|
Manual and Remote control |
|
