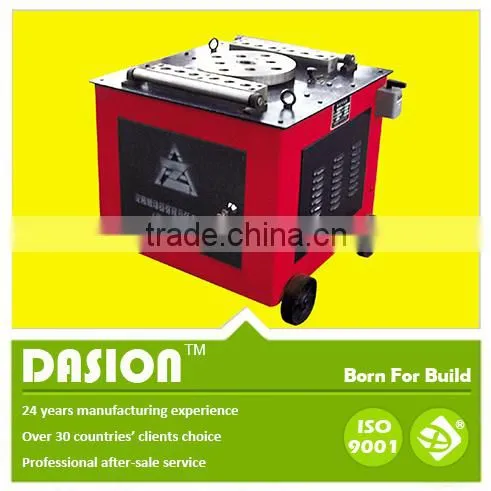

GW40 Automatic machine for cutting and bending steel
GW40/GW50 adopts the fully enclosed gear box for less distortions even under the condition of heavy loads.
Gear shaft, working disk, stop gauge,saddles,pipe head and pile head bushes made of forged high-quality.
Alloyed steel with proper heat(quenching/temering/high frequency)and 2mm thick external case to ensure high.
Performances also under heavy loads and long working life.
Two limit-switch to ensure the accuracy of the bending angle.
Features of steel bending machine:
All the parts are strictly made according to the standard issued by the ministry. The gears are treated with high frequency quench, having the functions of high load moment, stable and reliable performance.
Application range of steel bending machine:
It is mainly used to bend the round steel with 6-50mm in diameter and the screw-thread steel with 8-40mm in diameter of the II class.
| Technical parameters of GW40/GW50 steel bar bending machine | ||
| Model | GW40 | GW50 |
| Bending Diameter |
Plain carbon steel ≤Φ40mm |
Plain carbon steel ≤Φ50mm |
| Deformed steel ≤Φ32mm | Deformed steel ≤Φ40mm | |
| Operation disc spec | Φ350mm | Φ400mm |
| Axis Rotate speed | high speed:9.63r/min | 2.685r/min |
| low speed:4.68r/min | ||
| Motor power | 3KW | 4KW |
| Motor Rotate speed | 1429r/min | 1400r/min |
| Overall Dimension | 93x73x71cm | 106×81×72cm |
| Whole Weight | 350kg | 450kg |
