1. Beierde Automatic Beer Filling and Bottling Machine/Plant/small line
1. This type of beer filling machine is a specific design which combination of three mechanical part in terms of filling and sealing.
2. Beer filling machine is applicable for plastic bottles, Glass bottles and pop top Can bottles. The range of capacity is from 2,500 BPH to 10,,000 BPH.
3. Beer filling machine consists of air conveyor, base conveyor and bottle evaluator.
4. The concept design considers three factors with regard to ease of operation, ease of cleaning and low cost.
1. The Washing Part
This part is used for washing the inside of the bottle (glass or PET) to ensure achieving the Hygeia standard of local nations.
2. The Filling Part
The Filling Part is composed of the filling valve, filling tank and some assistant element. It is the key component of Beer filling machine.
3. The Capping Part
The capping part is composed of 3 sets of screw head, capping transmission part, cap unscramble.
2. Advantages of Beierde Automatic Beer Filling and Bottling Machine/Plant/small line
1. Filling valve adopts high precision mechanical filling valve, without vacuum pumping.
2. External mechanical valve has no spring or sealing inside, which is made of ocr18ni9.
3. This machine has lubrication system in order to lubricated regularly in time.
4. The machine has advantages of high efficiency, low noise and a long life cycle.
5. Wine jar and capping head are driven by electricity to fit different sizes of bottles.
6. The material height in the tank is controlled by electric probe to assure the precise liquid level.

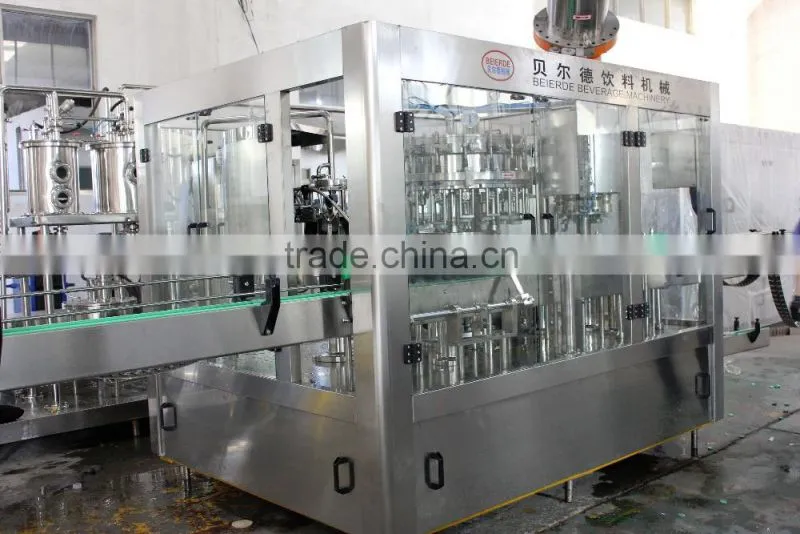

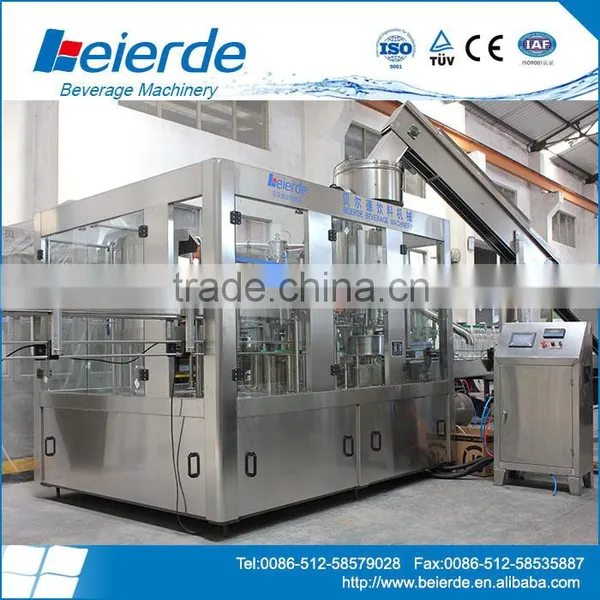

3.Product Shows of Beierde Automatic Beer Filling and Bottling Machine/Plant/small line
3.1 PET Bottle Beer Filling Machine
3.2 Glass Bottle Beer Filling Machine
4. Product Specification of Beierde Automatic Beer Filling and Bottling Machine/Plant/small line
| Model | Production Capacity | Total Power(KW) | Dimension(MM) | Weight(KG) |
| BFM14-12-4 | Max 2500BPH | 3.5 | 2000X1500X2200 | 2800 |
| BFM18-18-6 | Max 4000BPH | 4.5 | 2500X1650X2200 | 3570 |
| BFM24-24-8 | Max 7,500BPH | 6.5 | 3000X2000X2200 | 4500 |
| BFM32-32-10 | Max 10,000BPH | 8.5 | 3500X2500X2200 | 6000 |
How to enquiry and place an order?
Please write you request on email and the content as more as details you can, we would respond within 24 working hours. In particular, bottle size (250ml-1500ml), bottle material (Glass bottle, PET bottle or pop top can) and production capacity.
- What kinds of beverage will you make?
- How many bottles per hour are you prefer?
- Bottle volume, Bottle material, bottle shape and the neck diameter of bottle?
- A single machine or a whole production line?
What service BEIERDE Machinery Co.,Ltd can serve our customer?
- Any response within 24 hour
- Airport pick up service and Hotel Booking
- Good after sale service
