TBK060 Appearance Design Patent No.2039330

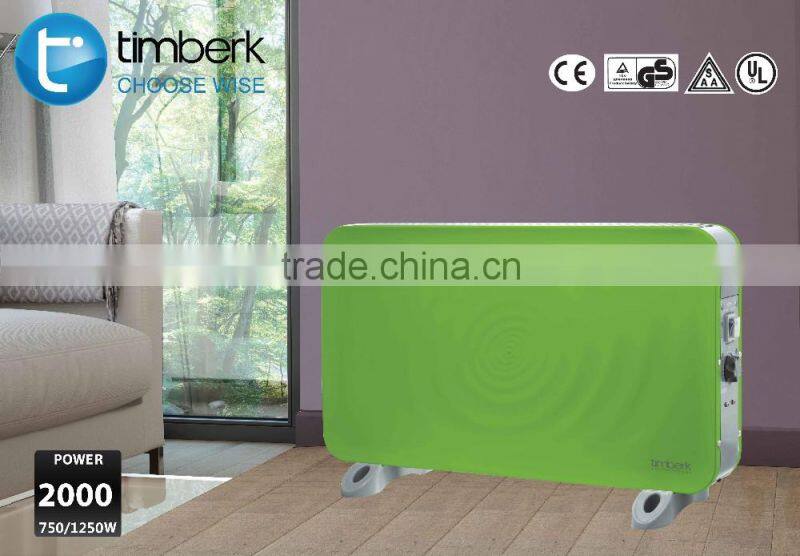

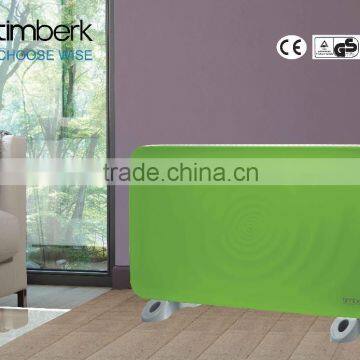

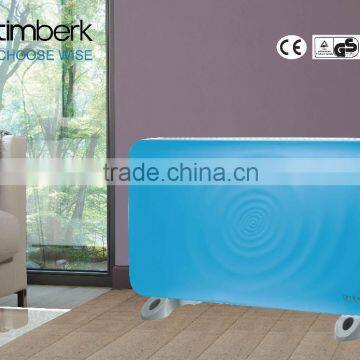

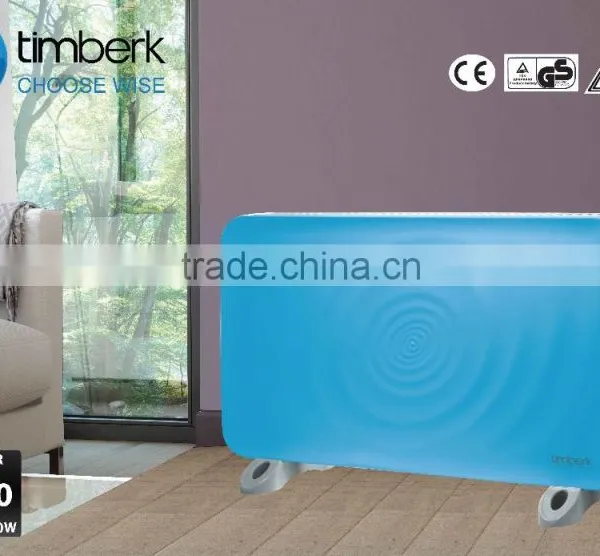

Electrical free standing convector heater
Model TBK060-E20
1. Technical datas of Electrical free standing convector heater:
Model |
TBK070-M10/E10 |
TBK070-M20/E20 |
Power |
1000W |
2000W/1250W/750W |
Power mode |
1 single mode |
3 power modes |
Heating Area(sqm) |
14-16 |
22-26 |
Product Size(mm) |
420x100x350 |
600x100x350 |
N.W.(Kg) |
3.5 |
4.0 |
Cable wire length |
1.8M |
|
Heating element |
Heating wire |
|
Control Panel |
Mechanical control panel / LED control panel |
|
|
Optional spare parts (additional price) |
Towel dryer rack humidifier box ionizer Tip-over switch |
|
2. Characters of Electrical free standing convector heater:
1. Compact size, 2 side panel for beautiful decorating design;
2. Stix heating element;
3. Temperature adjustable. Stepped power mode for 2KW model, economic, comfort and express mode;
4. Convector heater with silent operation
5. Reliable mechanical thermostat for Mechanical type. Highly-precised electronic thermostat for LED digital type
6. Over-heat protection sensor
7. LED digital control type: there're 24 Hours timer setting, Anti-frost function, Child safety lock functions
8. Optional spare parts/equipment: Tip-over switch sensor, Ionizer, towel dryer rack
3. Parts of Electrical free standing convector heater:
Spiral Wire heating element
Instant heating at optimal price, Timberk uses thicker micathermic plates, increasing the life of heating elements twice as compared with traditional ones. Easy installation, excellent corrosion resistance, fast heat exchange rate

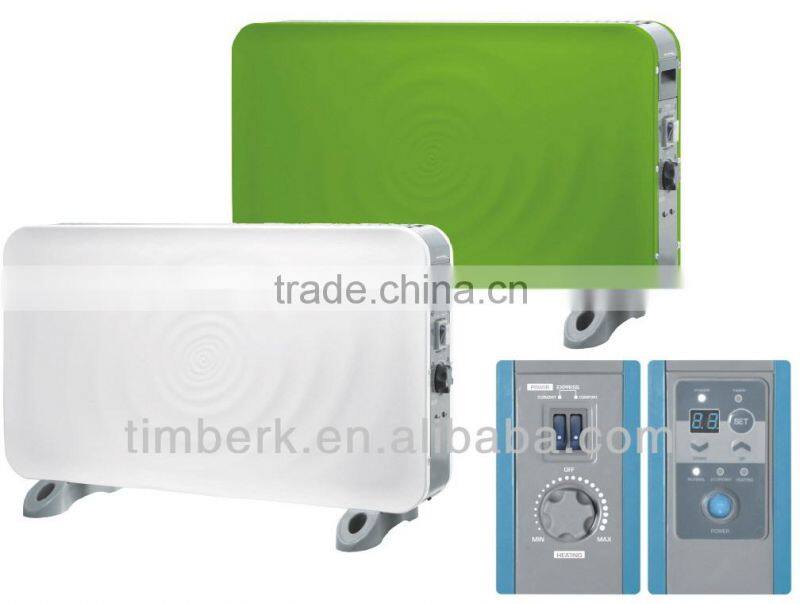

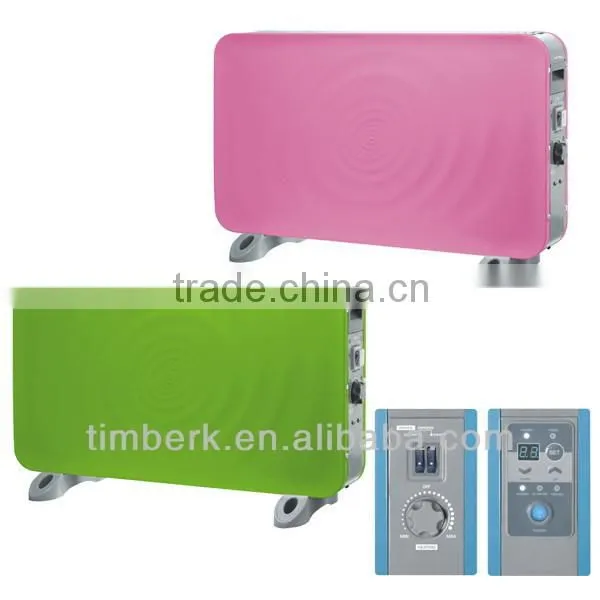

Electronic Panel
1. LED display
2. Adjustable temperature in Normal and Economic setting modes(for 2000W model only)
3. Thermostat for temperature setting and automatic control(5-30℃)
4. Timer function for 24 hours
5. User setting memory function
6. Anti-frost function
7. Three power mode for selection: Economic, Normal, Express( for 2000W model only)
8. Child safety lock function for protection
Mechanical Panel
1. Thermostat for temperature setting freely by easy knob(5-30℃)
2. Three power mode for select: Economy, Normal, Express(for 2000W mode only)
3. Power indicator light
4. Over-heat protection sensor included to protect the heater
Tip-over switch(optional)
When the heater tilted more than 45degree, it will automatically stop working. When stands up correctly, it will work again. This can prevent heating up the carpet or floor for better safety.
Stable plastic standing legs
Our plastic standing legs is strong & stable, it can stands the heater firmly. It's design is beautiful & modern.
| Model | TBK060-M10/E10 | TBK060-M20/E20 |
| Packing | Color box & Protection foam | |
| 20GP Qty | 933PCS | 700PCS |
| 40GP Qty | 1800PCS | 1350PCS |
| 40HC Qty | 2267PCS | 1600PCS |
*1 year guarantee
*Quality insurance
*Delivery time insurance
*Any color for your choice
*ODM service is available
Timberk Household Appliances Co., Ltd. is a joint-venture company in Shunde City, China.
With 8000sqm workshop, annual production capacity is over 1 million pcs for all kind of heaters & fans. We have 1 grill & mesh production branch, 1 DC motor production line, 1 silk-ink production line & 2 assembly production line. We also have 2 testing rooms & 1 QA, 1 QC team to support quality. All products are 100% tested before production.
OEM & ODM service is available for partners.
Welcome to send us inquiry with your purchase quantity for our bottom price!
