Electric wall panel heater
Model TBK050-E20
1. Features of Electric wall panel heater:
1.French size design,Compact and unique structure,new installation concept.
2.X-shape sheathed aluminum heating element and Iron-chromium alloy spiral heating element is for your selection
3.X-shape sheathed aluminum heating element for durability and efficient heating transfer
4.Iron -chromium alloy spiral heating element for instant and efficient heating transfer
5.X-shape sheathed aluminum HE models are IP24approval ,can be installed in bathroom
6.Over-heat safety protection Mechanical Control
7.Mechanical and LED digital program control are available
8.Adjustable temperature in comfort and ecomomic setting modes
9.Thermostat for temperature setting and automatic control(5°C-30 °C )
10.Timber(24hours)to stop or start working
11.Can be wall mounted or free standing
12.With anti-frosting function
13.With child safety lock
14.Tip-over safety switch,Ionizer,Towel dryer,Humidifier,Handle and Castors are for your option

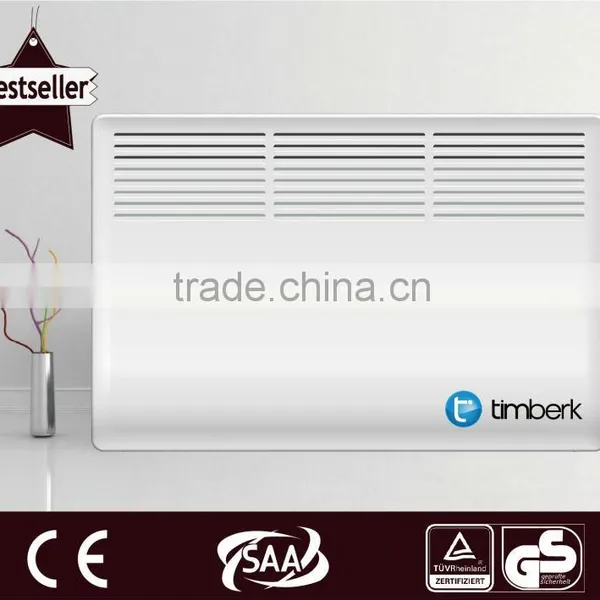

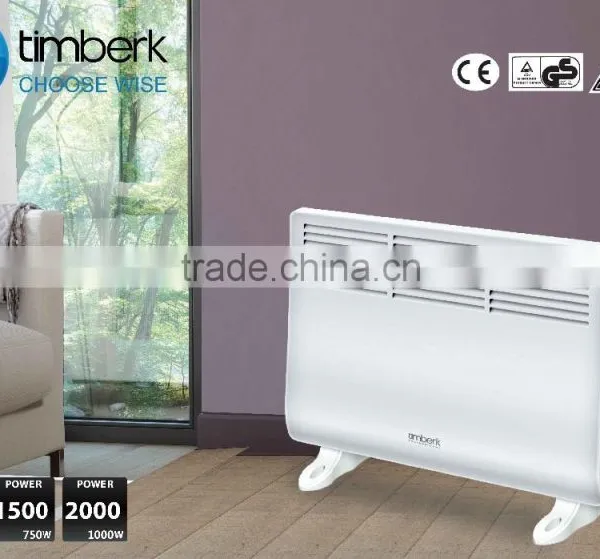

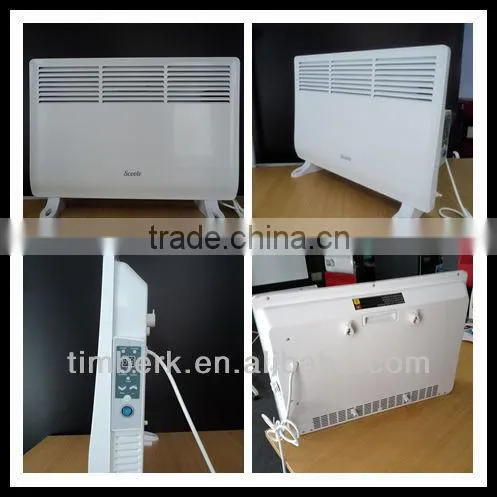

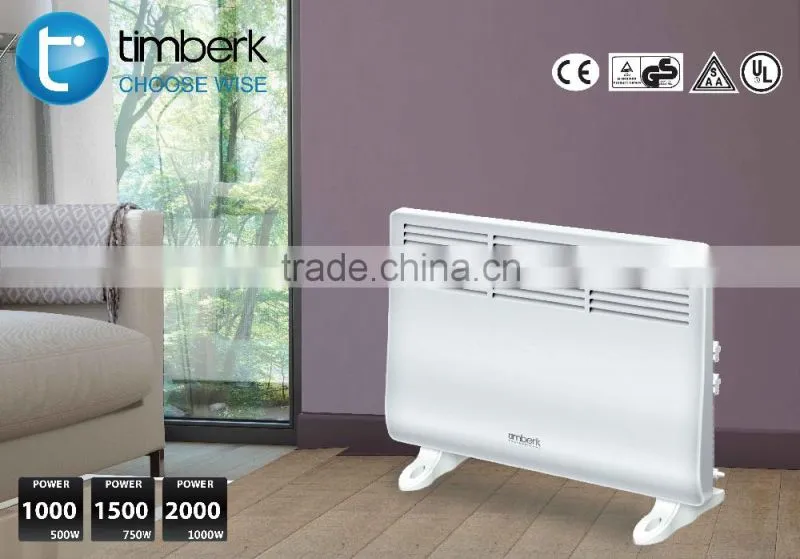

2. Product photos of Electric wall panel heater:
3. Technical Data of Electric wall panel heater:
| Model | TBK050-M10/E10 |
TBK050-M15/E15 |
TBK050-M20/E20 |
| Power | 1000W/500W |
1500W/750W |
2000W/1000W |
| Heating Area(sqm) | 14-16 | 18-20 | 22-26 |
| Product Size(mm) | 420x90x440 | 570x90x440 | 647x90x440 |
| N.W.(Kg) | 4.7 | 5.7 | 6.8 |
| ODM service |
Brand Color Box Instruction Manual Rating Label Other sticker |
||
4. Component of Electric wall panel heater:
New Generation Heating Element
1.T-Extra and Duo-X heating Elements.
2.European quality X-shape sheathed heating element with newest structure big diffuser.
3.Unique multi-power design.
4.Unique composition:strong aluminum alloy and structure increase the efficiency and proof from distortion.
5.Seal heating spiral,Teflon protection and X-Ray QC bring durability for long-life using.
Humidifier
1.Any heater working, it wil make room air become dry.
2.Timberk heater totally solve this problem by our patent design-Timberk humidifier.
3.Timberk special heater humidifier can realize water into air along with heater woking.let you enjoy fresh nature air in your room.
Ionizer
1.Bring forest to your home-Timberk lonizer.
2.Eliminate bad smells,adverse materials(for example; formaldehyde from house decoration) and smokes in air, refuse second-hand smoking.
3.Collect dusty and floated pellets in air, make air clear, Cut off bacteria spreading.
4.Creat active oxygen, remove your body tired, inspire yourself.
Towel Dryer
1.Luxury design with stainless steel or chromed steel.
2.Convenient for installing and hiding on heater body.
3.Rapidly make your towel, clothes to be dry.
LED Control Panel
1.Accessible LED display panel
2. Indication lights on control panel
3.Adjustable temperature in Normal and Economic setting modes
4. User setting memory function
5. With anti-frosting function
6. 5°C-30°C temperature step setting
7 24 hours timer (to start or stop working)
8. Child safety lock
9. User setting memory function
Handle for easy movement
| Model | TBK050-M10/E10 |
TBK050-M15/E15 |
TBK050-M20/E20 |
| Power(W) | 1000W/500W |
1500W/750W |
2000W/1000W |
| Product Size(mm) | 420x90x440 | 570x90x440 | 647x90x440 |
| Packing Way |
Plastic bag & color box for each one, protected by foam inside around |
||
| G.W.(Kg) | 5.7 | 6.8 | 7.8 |
| Packing Size(mm) | 528x135x494 | 678x135x494 | 745x135x494 |
| Loading Qty(20ft) | 767 pcs | 597 pcs | 545 pcs |
| Loading Qty(40ft) | 1620 pcs | 1260 pcs | 1150 pcs |
| Loading Qty(40hq) | 1903 pcs | 1482 pcs | 1350 pcs |
*1 year guarantee
*Quality insurance
*Delivery time insurance
*Any color for your choice
*OEM service is available
1.Are you manufacture or trade company ?
Reply:We are manufacture,we've been in the field of small fans,electric heaters & gas heaters for 6 years.
2.How many workers are there in your factory?
Reply: 150 workers when peak season, other season 50 workers.
3.How big is your factory ?
Reply:Our factory has 8000 sq.m workshop which is equipped by modern facilities. We have 2 assembly line, 1 spare parts assembly line & 1 grill mesh production branch. Also we have 2 testing rooms for normal testing & lifespan testing.
4.How's your production capacity ?
Reply:Annual production capacity is over 8000,000 pcs of heaters range and 2000,000 pcs fan range.
5.Is there quality insurance for the product?
Reply:Most of our products have CE certification. And all our products are 100% tested before packing for functional test, technical test & safety test. Also there will be spot testing during production & after production.
Timberk Household Appliances Co., Ltd. is a joint-venture company in Shunde City, China. with manufacture factory in China and selling, warehouse and service office in Russia.
We focus and specialize on fan & heater products including: electric convection heater, panel radiator heater, gas room heater; USB metal fan, plastic mini fan, clock fan, floor fan, stand fan.
With 8000sqm workshop, annual production capacity is over 1 million pcs for all kind of heaters & fans. We have 1 grill & mesh production branch, 1 DC motor production line, 1 silk-ink production line & 2 assembly production line. We also have 2 testing rooms & 1 QA, 1 QC team to support quality. All products are 100% tested before packing.
Take both OEM & ODM project, can make tooling with partners.
