Stainless Steel Automatic Self Cleaning Filter

1. Gold member and trade assurance by Alibaba group

2. Manufacter with senior engineer who could give professional advises on filtration

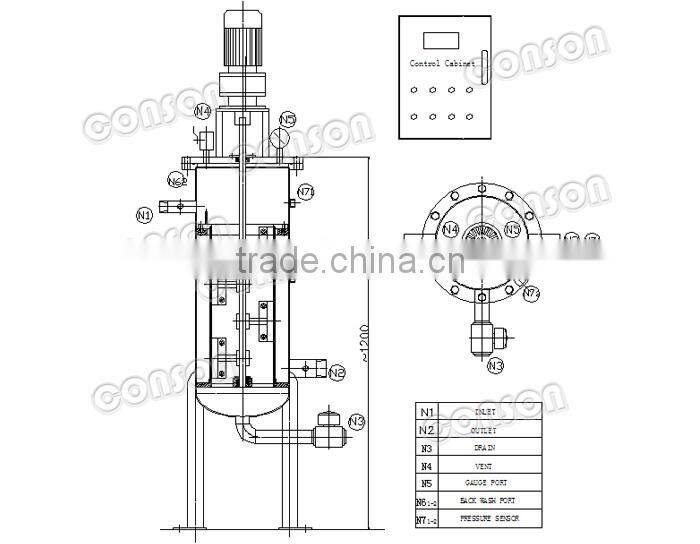

3. Drawings with detailed dimensions available

4. Design calculation, Material cert, Pressure test, QC report, Dimension report available

  Conson self cleaning filter, automatically removes particles from the filter element surface by the efficiently mechanical scraping, self cleaning filter can work on-line continuously, consumes no disposal filter media, requires no frequent manual cleaning, is capable of the filtration for both normal and high viscous liquids.

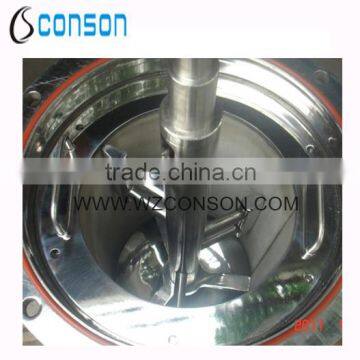

   The working principle of the self cleaning filter is: When the pressure difference from the inlet&oultet reaches the setted parameter. The control system make the scraper rotates and the dirts is scraped down to the bottom part. And the bottom drain valve opens and the dirts is drained out. The scraping instruction could also carried out based on setted time quantum.

water filters self cleaning models & data

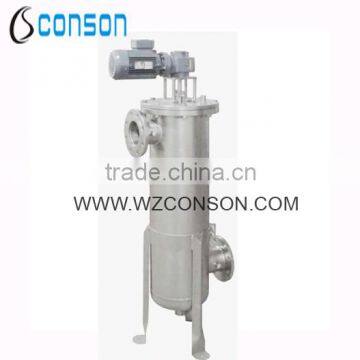

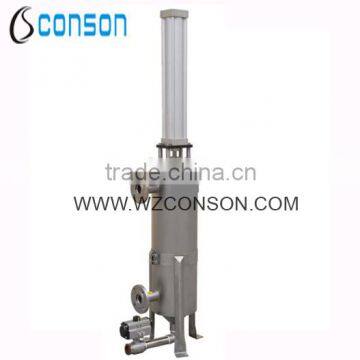

stainless steel self cleaning filter

                            We also customized filter housings according to requirement.

                                     For more housings, Please visit our website
