Home > Products > Frying machine > Apple Crispy Banana Chips Vacuum Frying Machine
Apple Crispy Banana Chips Vacuum Frying Machine
- Qingdao port
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | TINDO | Model Number | VF400 | |
| Application | Other, Chips, Pineapple, jackfruit, Carrot, Okra | Voltage | 380V | |
| Power(W) | 22kw | Weight | 2Ton | |
| Dimension(L*W*H) | 5500*2050*2300mm | Certification | CE Certificate | |
| Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

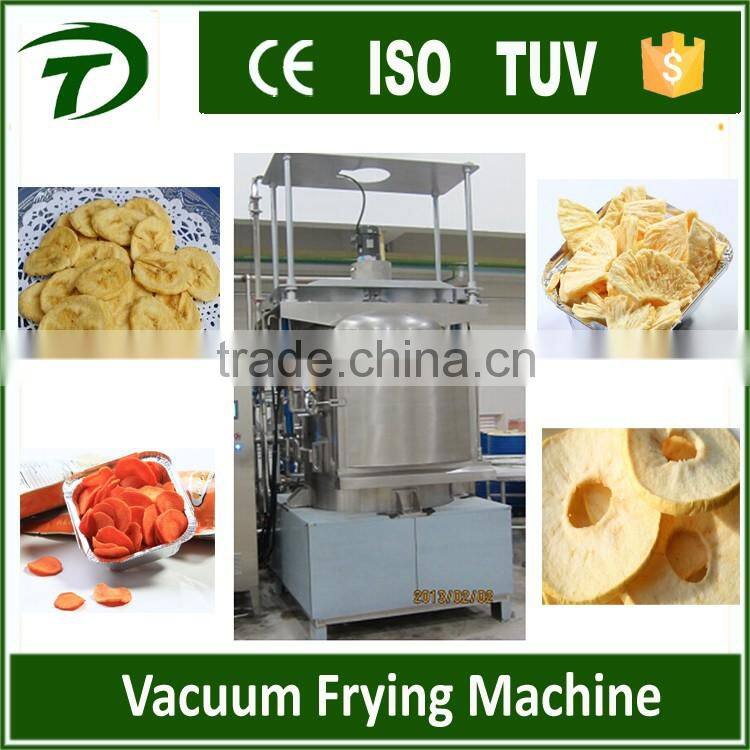

apple crispy banana chips vacuum frying machine
Description of apple crispy banana chips vacuum frying machine
l apple crispy banana chips vacuum frying machine is widely used in the production and processing of fruit crisps, the whole process of core equipment.
l Its vacuum -0.095 MPa can be achieved, thereby reducing the frying temperature, enhanced heat transfer efficiency, saving energy, and the quality of the final product has also been improved.
l High vacuum to avoid excessive infiltration of oil materials, so the final product more than other similar products are crisp and delicious.
l The shape of chips is more flat and the color, flavor and nutrition is more fine.
l The content of oil is lower. It is an ideal vacuum fryer.
Technical Parameters of apple crispy banana chips vacuum frying machine
Model | VF400 | ||
Processing capcacity (material: Kg/batch) | 100~1500 | ||
Basket volume(L) | 400 | ||
Processing time(min/batch) | 20-30(different fruits) | ||
Vacuum degree(MPa)(at water temperature 15℃) | - 0.096~0.098 | ||
Oil temperature(℃) | Environment temp~120 | ||
Heating
| Heating source | steam | |
Steam consumption(Kg/h) | 400 | ||
Interlining steam pressure( MPa) | ≤0.2 | ||
Heat exchanger steam pressure(MPa) | 0.4~0.5 | ||
Steam entrance(mm) | DN40 | ||
| Steam exit (mm) | DN25 | |
Heating method | Oil pump outside loop and interlayer | ||
Deoiling speed n/min | 0~300 | ||
Cooling water consumption(T/H) | 25 | ||
Cooling water entrance/exit diameter(mm) | DN50/DN50 | ||
Vacuum pump cooling water entrance(mm) | DN20 | ||
power | Volt | 220V/3phase 60Hz | |
Total power(Kw) | 22.15KW | ||
Product Details

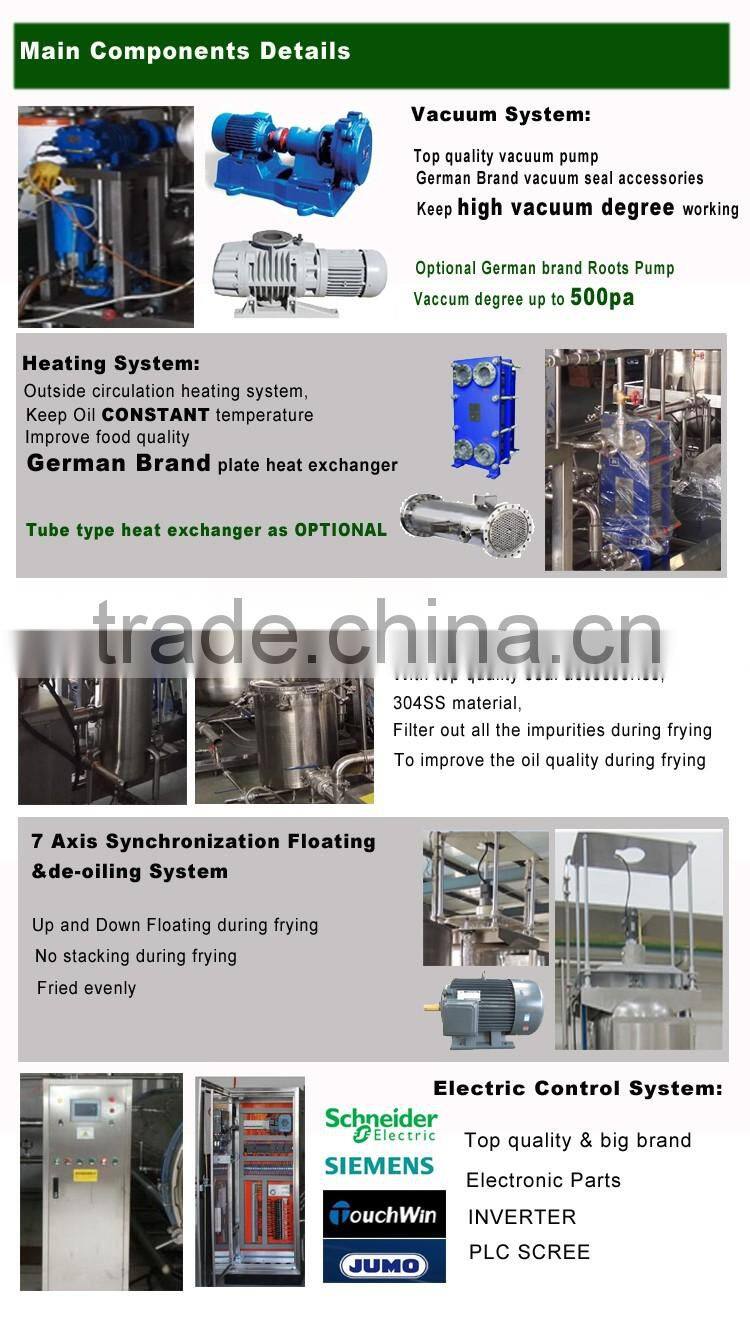

Details of apple crispy banana chips vacuum frying machine

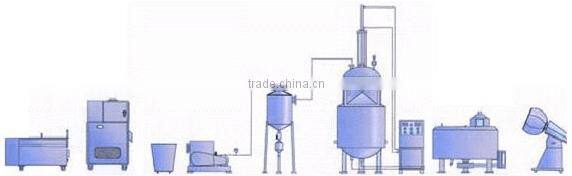

Flow Chart of apple crispy banana chips vacuum frying machine
Products screening →washing & peeling -> de-watering →slicing →deactivation of enzymes ,cooing →color preservation→water filter→freezing→dipping→frying&deoil→packing.
Clients And Certificate
Successfully exported worldwide:
Since established, TINDO has successfully exported its machines to more than 90 countries. With many practical experiences, TINDO can provide clients with the most effective market information and customer service experience.
Complete market information:
TINDO never stops doing market surveys and attending international exhibitions. With decades of knowledge accumulated about market information and changes in food trends, we can provide the most valuable information to our clients, and assist our clients in industrial upgrading.
Our Team
Timely response and follow-up service:
TINDO will respond to customer phone calls, e-mails or faxes for machinery or production problems within 24 hours to prevent a client's potential loss.

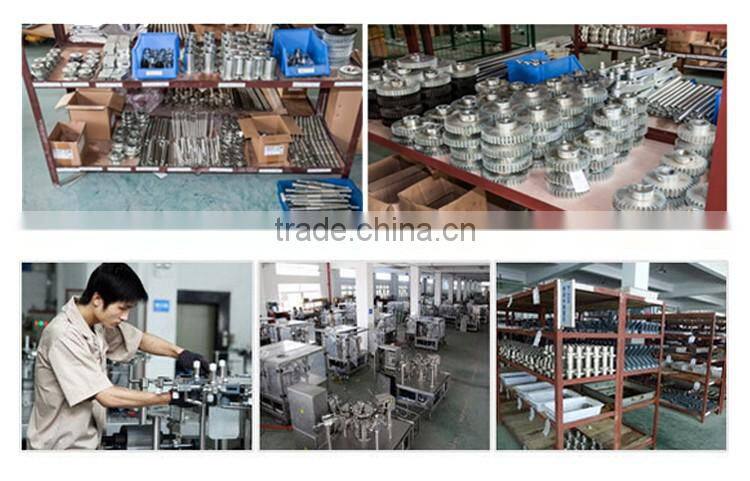

Complete parts safety stock for all machine series:
Except for special parts, we can deliver the components each client needs right away.
Fumigation Free Ploywood in 20'GP 40'HQ
By Sea, By Air, By Rail, By Truck all available
