latest full hd dvr with HDMI VGA 8TB SATA 16ch cheap security camera dvr
Specification of full Hd 16ch cvi dvr :
| AK-CVI7016 | *16CH 1080P realtime reocording *Resolution 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 *4CH play 720P playback *Support VAG, HDMI video output simultaneously *Support Mobile phone, Windows, Symbian, iPhone, Blackberry and Android operation system *Support 2 SATA(each can up to 4TB) |
| Model | AK-CVI7016 | |
| System | ||
| Main Processor | Embedded processor | |
| Operating System | Embedded LINUX | |
| Video | ||
| Input | 16 channel, BNC | |
| Standard | NTSC(525Line, 60f/s), PAL(625Line, 50f/s) | |
| Audio | ||
| Input | Default 1 channel, BNC | |
| Output | 1 channel,BNC | |
| Two-way Talk | Reuse audio input/output channel 1 | |
| Display | ||
| Interface | 1 HDMI, 1 VGA | |
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 | |
| Display Split | 1/4/8/16 | |
| Privacy Masking | 4 rectangular zones (each camera) | |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |
| Recording | ||
| Video/Audio Compression | H.264 / G.711 | |
| Resolution | 1080P(1920×1080/1920×900)/(720P(1280×720/1280×600)/960H(960×576/960×480)/D1/4CIF(704×576/704×480)/CIF(352×288/352×240)/QCIF(176×144/176×120) | |
| Record Rate | Main Stream: | 1080P/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps) |
| Extra Stream | CIF/QCIF(1~25/30fps) | |
| Bit Rate | 48~8192Kb/s | |
| Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |
| Video Detection&Alarm | ||
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips | |
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |
| Playback & Backup | ||
| Sync Playback | 1/4/8 | |
| Search Mode | Time/Date, MD & Exact search (accurate to second) | |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |
| Backup Mode | USB Device / Network | |
| Network | ||
| Ethernet | RJ-45 port (10/100M/1000M) | |
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter | |
| Max. User Access | 128 users | |
| Smart Phone | iPhone, iPad, Android | |
| Storage | ||
| Internal HDD | 2 SATA port, up to 8TB | |
| Auxiliary Interface | ||
| USB Interface | 2 ports (1 Rear), USB2.0 | |
| RS485 | 1 port, For PTZ control | |
| General | ||
| Power Supply | DC12V/5A | |
| Power Consumption | 15W(without HDD) | |
| Working Environment | -10 ~+55°C / 10~90%RH / 86~106kpa | |
| Dimension(W×D×H) | 330mmx270mmx52mm | |
| Weight | 3.2KG(without HDD) | |

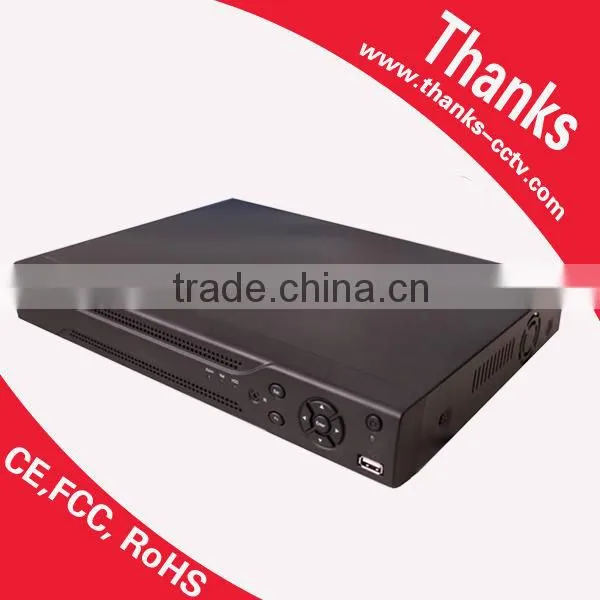

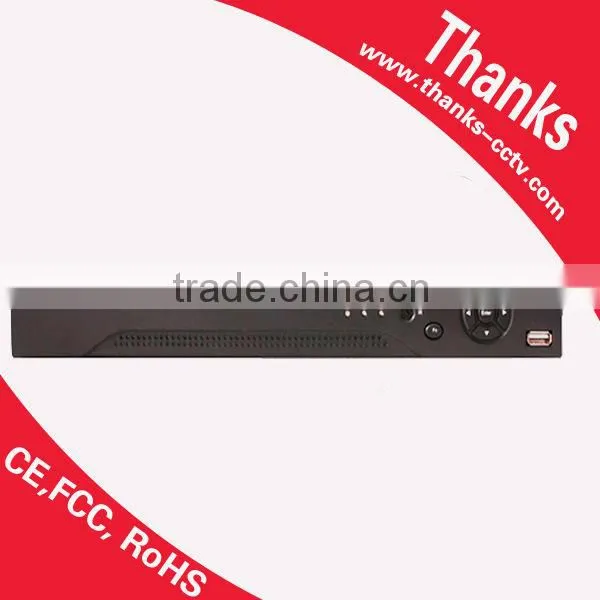

Picture show of full Hd 16ch cvi dvr:

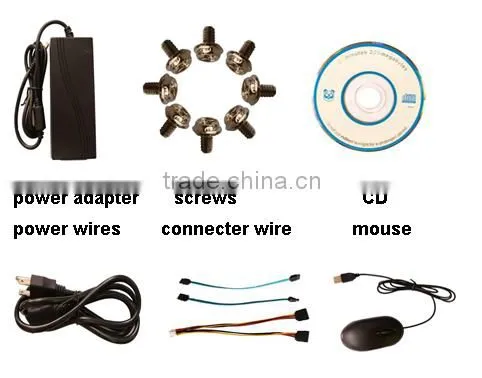

Accessories of full Hd 16ch cvi dvr:
Why choose Thanks cctv products?
Our service:
1. Quality Control. IQC- Incoming quality control; IPQC- In process quality control; OQC-Outgoing quality control.
2. Service. Keep you imfored for every step of the order, and do best to save purchase cost for you.
3. Technical support. Provide all-around technical support and counselling all the time.
Our advantages:
1. Wide Products Range. CCD / CMOS camera, HD-SDI camera, HD IP camera, PTZ camera, DVR, NVR, Kits ect
2. Good quality with two years warranty!
3. Soon deliver of samples: 3-5 days.
4. 2014 new design: help you catch the market
5. Good develop ability will update new products each month.
Packaging of Thanks CCTV CAMERA: Standard export packaging
Payment terms:
TT in advance, Paypal, West Union
Deliver date:
3-5 days after payment
Shipment:
TNT, DHL, FEDEX express, By air or By sea
Guangzhou Thanks Electronic Limited is a leading professional manufacturer of all kinds of surveillance security products including CCTV Camera, IP Camera ,HD-SDI Camera, DVR, NVR, HVR etc with more than 10 years experience.
With high quaility and very competitive price, THANKS CCTV products are top selling from all over the world.
WE BELIEVE THAT THE QUALITY IS THE SOUL OF AN ENTERPRISE!
THANKS, the most reliable business partner for you in CCTV field!
You inquiry is highly appreciated! contact me right now!
