Home > Auto, Motorcycle Parts & Accessories > Car Safety > Car DVR > 8ch DVR,H.264 8 CHDVR, Full D1 8CH DVR

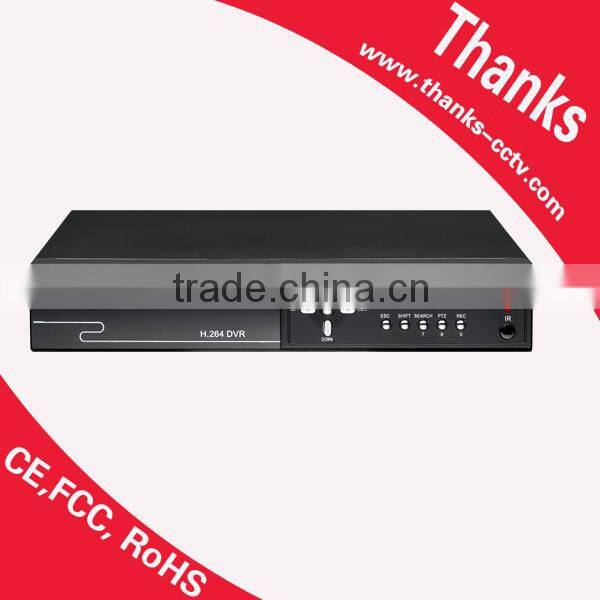

8ch DVR,H.264 8 CHDVR, Full D1 8CH DVR

8ch DVR,H.264 8 CHDVR, Full D1 8CH DVR thumbnail-1
8ch DVR,H.264 8 CHDVR, Full D1 8CH DVR photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Thanks
Model Number:
AK-7108H
Contact Supplier Request Quote Chat Now
Guangzhou Thanks Electronic Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Thanks
Model Number AK-7108H

1.H.264 8CH DVR,

2.Recording in 8ch D1 DVR
2.DI/HDMI/960H/3G smart phone/Email
3.PTZ/audio/H264/Linux OS
service technology, no need to set IP address.



Full D1/HDMI/960H Economical Pentaplex DVR with 3G Mobile functions/cloud tech nat/P2P DVR/PNP(plug-n-play)





Thanks dvr applies the leading SOC technology, and standard H.264

encoding, with high-definition image and more stable system.This model has powerful function and user friendly GUI. Support cloud service, operate easily, and suitable for home, shop, small and medium civil security.



Main Features:



*Latest cloud service, patent NAT (Network Address Translation) technology, realize the remote access easily



* Support PC and Smartphone playback



* The unique data storage technology, which can record the data of 1 sec before power failure



* Support composite streaming and video streaming encoding. Under the composite steaming encoding,

video and audio can be encoded synchronously



* Support VGA, BNC and HDMI output



* High definition VGA display, 800*600, 1024*768, 1280*1024



* Support digital zoom in preview and playback



* Support different PTZ protocols, support present tour function



* Activates event recording automatically when alarm is triggered, and send alerts with images to designated emails





Specifications:

Model

AK-7108H

System

GUI:

Graphic User Interface(OSD Menu)

Operation system:

Linux(embedded)

Multiplex Operation:

Pentaplex : Preview, record, playback, backup, network

Video/ Audio input

password security :

Multi-user management operation

Analog video input:

8CH,BNC, 1.0p-p, 75Ω,

Audio input:

1CH, RCA, 2.0Vp-p,600kΩ

Video/Audio output

HDMI Output:

support

VGA output:

1CH, resolution: 800*600, 1024*768,1280*1024

Display:

1ch / 8ch optional

Video standard:

PAL/NTSC

CVBS Output:

1CH,BNC, (1.0Vp-p,75Ω)

Resolution: PAL (704*576), NTSC(704*480)

Audio output:

8CH, RCA, (Linear electrical level, 600Ω)

Video/Audio encoding parameters

Video compression:

H.264

Display frame rate:

PAL: 100fps (4 x 25 fps)NTSC: 120fps (4 x 30 fps)

Record frame rate:

PAL: 100 fps(4 x 25 fps) NTSC:120 fps(4 x 30 fps)

video coding resolution:

8ch x D1(704X576)

video frame rate:

1-25FPS

video bit rate:

changeable and fixed bit rate(optional)

Stream type:

composite/ video

Audio compression:

ADPCM

Recording Mode:

Support normal / timer / alarm / motion detection recording

search video files :

By time period / channel / video type

Audio bit rate:

8-32kbps

Dual steaming:

support

Mobile phone monitoring:

Android / iphone / blackberry / windows / symbian

Recording resolution:

Recording: 16ch D1 Playback: 8ch D1

Synchronous Playback:

8ch

Hard Disk Driver

Type:

1 SATA interface

capacity:

Maximum 3TB HDD

recording type(Audio) :

audio and video recording simultaneously

remote control /mouse

support

Network:

Support IE/PPP0E/DDNS, DHCP,DDNS,PPPoE, IE view, and CMS central control

NAT

Support

Network interface:

1 RJ45 10M/100M, adaptive Ethernet interfaces

Serial interface:

1 standard RS-485 serial interface

interface:

2, USB 2.0

software upgrade:

Support USB/ network upgrade

Others

Power supply:

DC12V@2A

consumption(without HDD)

≤15W (Without HDD)

Working Temperature:

-10°C--+55°C

working Humidity:

10%--90%

8ch DVR,H.264 8 CHDVR, full D1 8CH DVR
