FTTH Four Ways CATV Fiber Optic Onu Receiver Build in CWDM

Name: FTTH Four Ways CATV Fiber Optic Onu Receiver Build in CWDM
Brand: Ruidian
Availability: InStock

FOB Price

US$ 38 - 45 / Piece

1 Piece(Min. Order)

Port Shanghai/Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China		Brand Name	Ruidian
Model Number	RDH4090D CWDM optical receiver

Product Description

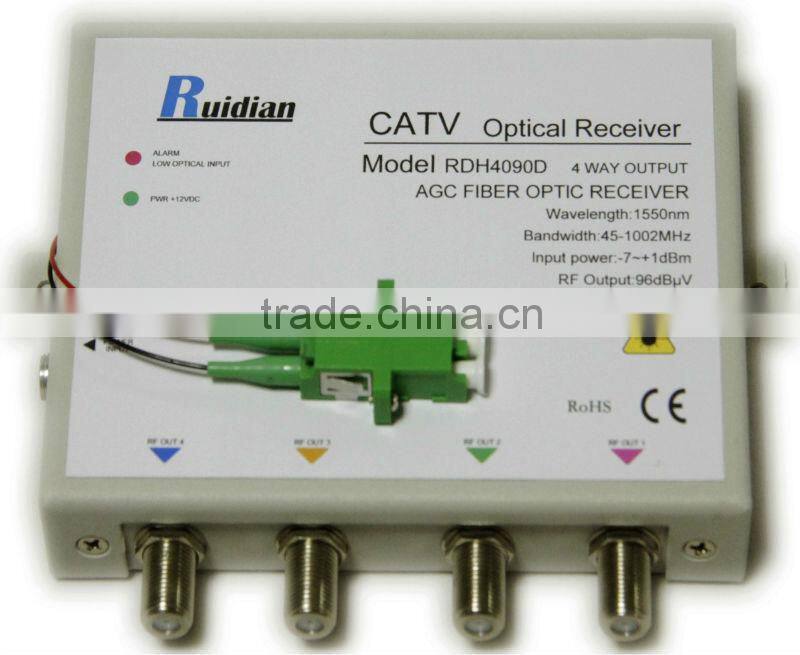

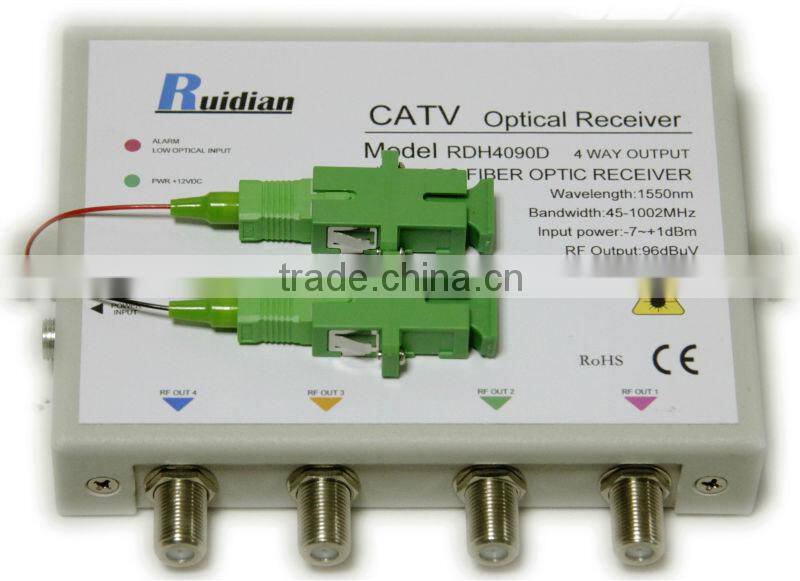

FTTH four Ways CATV Fiber Optic AGC Receiver build in CWDM RDH4090D

Description

The RDH4090D FTTH 4 Ways output CATV AGC receiver with work bandwidth 45-1002MHz, AGC function, output level Vo=96dBµV±1dB(Pin=-7~+1dBm), applies to xPON system, it is a low power consume, high performance ONU for RFTV broadcast network. DH4090D adopt high sensitivity optical receiving tube and Ruidian specialized low noise match circuit, 3.5%modulate full channel transmit power receiving and the CNR can reach high index 46dB. RDH4090R has three types according to different functions. RDH4090R is standard type, RDH4090F is build-in filter, RDH4090D is build-in WDM widely used in PON systems. Customer could choose the suitable model according to their systems application.

RF Typical Performance
Parameter	Units	Min Typical Max Supplement
Frequency	MHz	45		1002
Flatness	dB		±0.75
AGC	dB		±1		Pin:-7~+1dBm
Port			4
RF port			F-female
Output level	dBµv	95	96	97	Pin:-7~+1dBm
Return loss	dB		-16
Output Impedance	Ω		75
CNR	dB	46
CSO	dB	66
CTB	dB	68
Optical Typical Performance
Parameter	Units	Min Typical Max Supplement
Wavelength	nm	1540	1550	1560	Pass wavelength
Responsivity	A/W		≥0.9		1310~1490nm
Return loss	dB		≥55
Receiving power	dBm	-7		+1
Optical connector			LC/APC		LC/APC or SC/APC
General feature
Parameter	Units	Min Typical Max Supplement
Power supply	V	11	12	13
Power consume	W	620	630	640
Work temp	°C	-20		+55
Storage temp	°C	-40		+85
Size	cm		14102.4		W×D×H

Key Features

Optical CATV home receiver

Ultra low noise technology

Very low distortion

Wide range of optical input power

Single-mode fiber high return loss

F-female 75 ohm RF output

Main application

CATV HFC networks

FTTH FTTP networks

xPON system
