Home > Products > 04.Shperical Roller Bearing > 23030 Spherical Roller Bearing 150*225*56 23030 CC CA/W33

23030 Spherical Roller Bearing 15022556 23030 CC CA/W33

FOB Price

US$ 86.65 - 86.65 / Set

1 Set(Min. Order)

Port Shenzhen QingDao
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SAIFAN or OEM	Bore Size	0, 150
Outside Diameter	0, 225	Model Number	23030 CC CA/W33
Precision Rating	ABEC1 ABEC3 ABEC5 ABEC7	Seals Type	Open
Number of Row	Double Row	Place of Origin	Shandong, China

Product Description

23030 Spherical Roller Bearing 150*225*56 23030 CC CA/W33

Roller Bearing 150*225*56 Information

Brand Name	Spherical Roller Bearing or according to your requirement
Item Name	23030 Spherical Roller Bearing 15022556 23030 CC CA/W33
OEM Code	23030 CC CA/W33
Bearing Sizes	15022556 mm
Bearing Weight	7.7 kg
Material	Chrome steel, Gcr15
Used	For Machine Spindle, Paper Machine, Sugar Machine
Guarantee	50000km Or One year
Delivery Detail	2-10 days upon receipt of deposit
Shipping	Express: DHL Fedex EMS /By Sea
Bearing Advantage	1).Excellent and high quality control 2).Prompt delivery 3).Competitive price 4).Small order accepted 5).Customers' drawing or samples accepted 6).OEM service

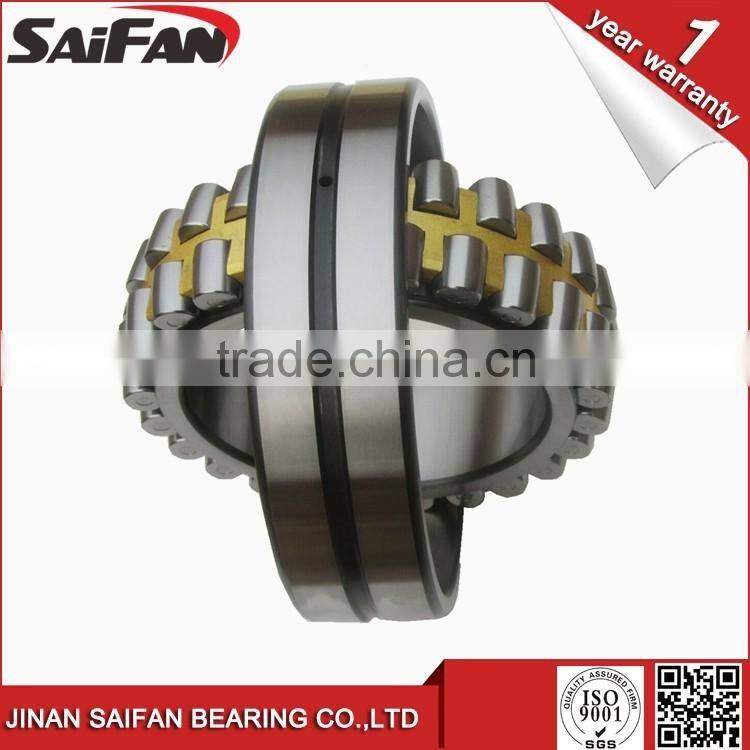

23030 Spherical Bearing Photos

1.Specifications:

Spherical Roller Bearing: 23030 CC CA/W33

Type: spherical roller bearings,Vibrating Screen Bearing

Bore diameter: 150 mm

Outer diameter: 225 mm

Depth: 56 mm

Basic dynamic load rating: 1290 Kn

Basic static load rating: 1560 Kn

Fatigue load limit: 132 Kn

Reference speed rating: 1700 R/min

Limiting speed rating: 2200 r/min

Weight: 7.7 KG

2.Application:

Spherical roller bearings for vibratory applications have two window-type hardened steel cages and a floating guide ring between the row of rollers. Larger size bearings d > 70 mm have an outer ring centred guide ring to support and guide the cages. This provides the lowest friction in the bearings.

3.Features:

Spherical roller bearing also known as self-aligning roller bearing. Spherical roller bearings have two rows of rollers. This bearing mainly accommodate the radial load, and can accommodate the axial load from one direction at the same time, but not accommodate the pure axial load. Sherical roller bearings have very good loading capacity, especially for hevey load or vibrational load.
Spherical roller bearing use staming steel cage (the suffixed "E"), glass-fibre reinforced polyamide cage (the suffixed "TVPB") or machined brass cage (the suffixed "M") or stamping steel cage for vibratory applications (the suffixed JPA).
Spherical roller bearings mainly used to papermaking machinery, speed reducer, cruser, etc.

4.Quality&Services:

Vibrating screen is widely applied in industrial sectors as of non-ferrous, ferrous metals, coal and road construction. Panels and Plates for Vibrating Screens can separate mixed material of different kinds into different classes of particle sizes through the combination of single-deck or multi-deck screens, so as to meet the requirements of a certain ore dressing process.vibrator bearing supplier, find best vibrator

find best vibrator bearing supplier on alibaba vibrator 452311cacm2 vibrating bearing for vibration motor .. 23030 CC CA/W33 vibratory screen bearing

5. Bearing 23030 CC CA/W33 Catalogue:

Bearings NO.	d/mm	D/mm	B/mm	C/kN	C0/kN	Weight/kg
23030 CCK/W33	150	225	56	510	750	7.7
24030 CC/W33	150	225	75	655	1040	10.5
24030 CCK30/W33	150	225	75	655	1040	10.5
24030-2CS2/VT143	150	225	75	655	1040	10.5
23130 CC/W33	150	250	80	830	1200	16
23130 CCK/W33	150	250	80	830	1200	15.5
24130 CC/W33	150	250	100	1020	1530	20
24130 CCK30/W33	150	250	100	1020	1530	19.5
24130-2CS2/VT143	150	250	100	1020	1530	19.5
22230 CC/W33	150	270	73	850	1080	18
22230 CCK/W33	150	270	73	850	1080	17.5
23230 CC/W33	150	270	96	1080	1460	24.5
23230 CCK/W33	150	270	96	1080	1460	24
22330 CC/W33	150	320	108	1460	1760	43.5
22330 CCJA/W33VA405	150	320	108	1460	1760	43.5
22330 CCK/W33	150	320	108	1460	1760	42.5
22330 CCKJA/W33VA405	150	320	108	1460	1760	42.5
23032 CC/W33	160	240	60	585	880	9.7
23032 CCK/W33	160	240	60	585	880	9.4
24032 CC/W33	160	240	80	750	1200	13
24032 CCK30/W33	160	240	80	750	1200	13
24032-2CS2/VT143	160	240	80	750	1200	13
23132 CC/W33	160	270	86	980	1370	20.5
23132 CCK/W33	160	270	86	980	1370	20

SAIFAN Advantage
SOLUTION – At the beginning, we will have a communication with our customers on their demand, then our engineers will work out an optimum solution based on the customers’ demand and condition. PRODUCTION – Running in accordance with ISO 9001 quality system, the advanced production equipments, sophisticated processing technology, strict quality management system, skilled workers and innovative technical team, make our bearings in continuous quality improvement & technology development. QUALITY CONTROL (Q/C) - In accordance with ISO standards, we have professional Q/C staff, precision testing instruments and internal inspection system, the quality control is implemented in every process from material receiving to products packaging to ensure our bearings quality. PACKAGE – Standardized export packing and environment-protected packing material are used for our bearings, the custom boxes, labels, barcodes etc. can also be provided according to our customer’s request. LOGISTIC – Normally, our bearings will be sent to the customers by ocean transportation due to its heavy weight, airfreight, express is also available if our customers need. WARRANTY – We warrant our bearings to be free from defects in material and workmanship for a 12 months period from the shipping date, this warranty is voided by non-recommended use, improper installation or physical damage.
About US
				High Quality Bearings, Choose Saifan. Jinan Saifan Bearing Co., Ltd is a professional bearing manufacture located in Jinan, Shandong. We are established in year 2005 and we have 10 years experience in bearing manufacture. We mainly produce wheel hub bearings, ball bearings, roller bearings etc.
SAIFAN OFFICE

SAIFAN WORKSHOP

SAIFAN Exhibition

PAYMENT TERM

FAQ
Q:What’s your after-sales service and warranty? A: We promise to bear the following responsibility when defective product is found: 1.12 months warranty from the first day of receiving goods; 2. Replacements would be sent with goods of your next order; 3. Refund for defective products if customers require. Q:Do you accept ODM&OEM orders? A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize housings in different styles, and sizes in different brands, we also customize circuit board & packaging box as per your requirements. Q:What’s the MOQ? A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders. Q:How long is the lead time? A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days. Q:Do you offer free samples? A: Yes we offer free samples to distributors and wholesalers, however customers should bear freight. We DO NOT offer free samples to end users. Q:How to place orders? A: 1. Email us the model, brand and quantity, consignee information, shipping way and payment terms; 2. Proforma Invoice made and sent to you; 3. Complete Payment after confirming the PI; 4. Confirm Payment and arrange production. 5. Arrange shipment
CONTACT US
Jinan SaiFan Bearing Co., Ltd Add: Business Center,No.88 Dikou Rd, Tian Qiao Dist, Jinan, China. Tel:86-0531-82637507 MP:86-15662712802 Skype: saifan06 http://saifangroup.en.china.cn
