Home > Products > 04.Shperical Roller Bearing > Spherical 24152 Bearing Self Aligning Roller Bearing 24152 CC CA MA MB 260*440*180

Spherical 24152 Bearing Self Aligning Roller Bearing 24152 CC CA MA MB 260440180

FOB Price

US$ 1200.00 - 1200.00 / Set

1 Set(Min. Order)

Port Shenzhen QingDao
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SAIFAN or OEM	Bore Size	0, 260
Outside Diameter	0, 440	Model Number	24152 CC CA MA MB
Precision Rating	ABEC1 ABEC3 ABEC5 ABEC7	Seals Type	Open
Number of Row	Double Row	Place of Origin	Shandong, China

Product Description

Spherical 24152 Bearing Self Aligning Roller Bearing 24152 CC CA MA MB 260*440*180

Spherical Roller Bearing 24152 Information

Brand Name	Spherical Roller Bearing or according to your requirement
Item Name	Spherical 24152 Bearing Self Aligning Roller Bearing 24152 CC CA MA MB 260440180
OEM Code	24152 CC CA MA MB
Bearing Sizes	260440180 mm
Bearing Weight	110 kg
Material	Chrome steel, Gcr15
Used	For Machine Spindle, Paper Machine, Sugar Machine
Guarantee	50000km Or One year
Delivery Detail	2-10 days upon receipt of deposit
Shipping	Express: DHL Fedex EMS /By Sea
Bearing Advantage	1).Excellent and high quality control 2).Prompt delivery 3).Competitive price 4).Small order accepted 5).Customers' drawing or samples accepted 6).OEM service

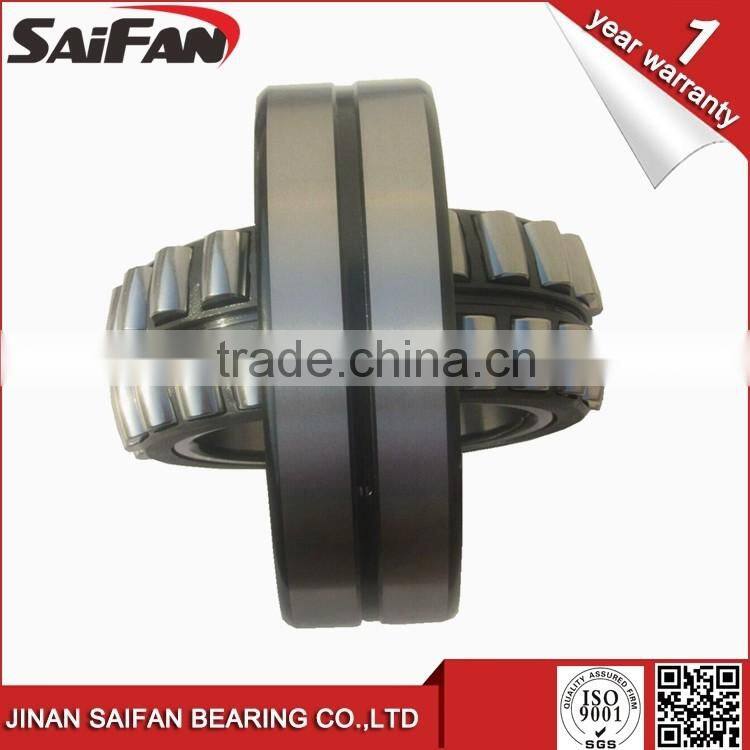

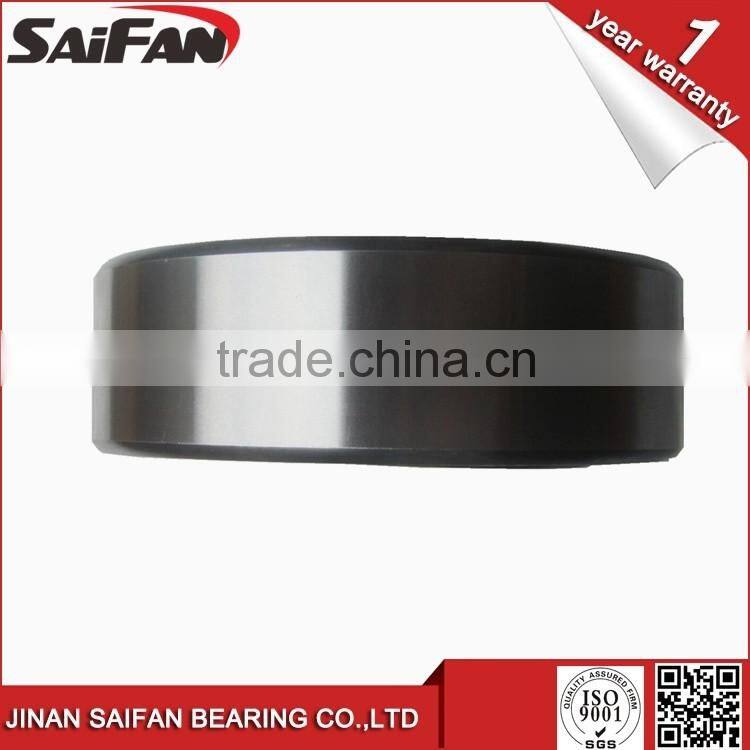

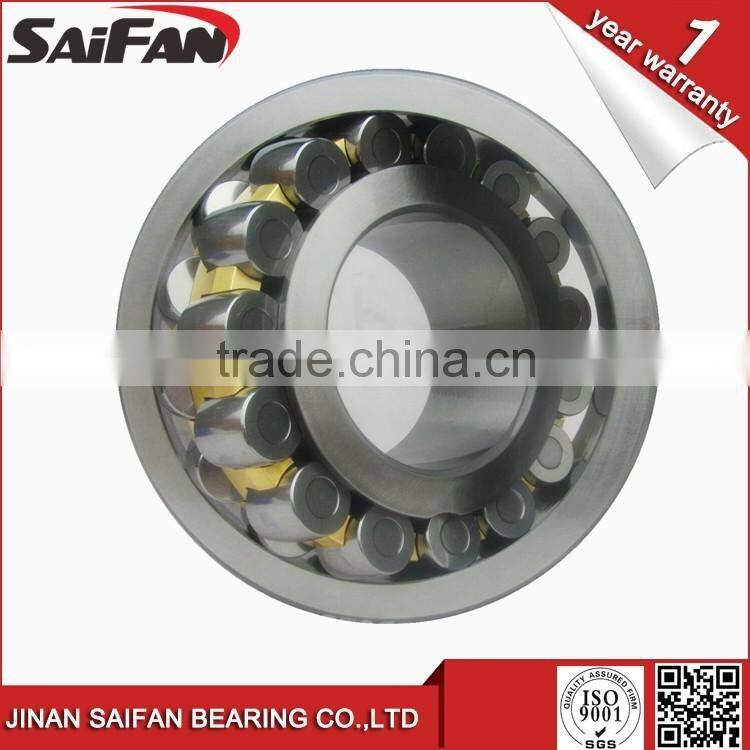

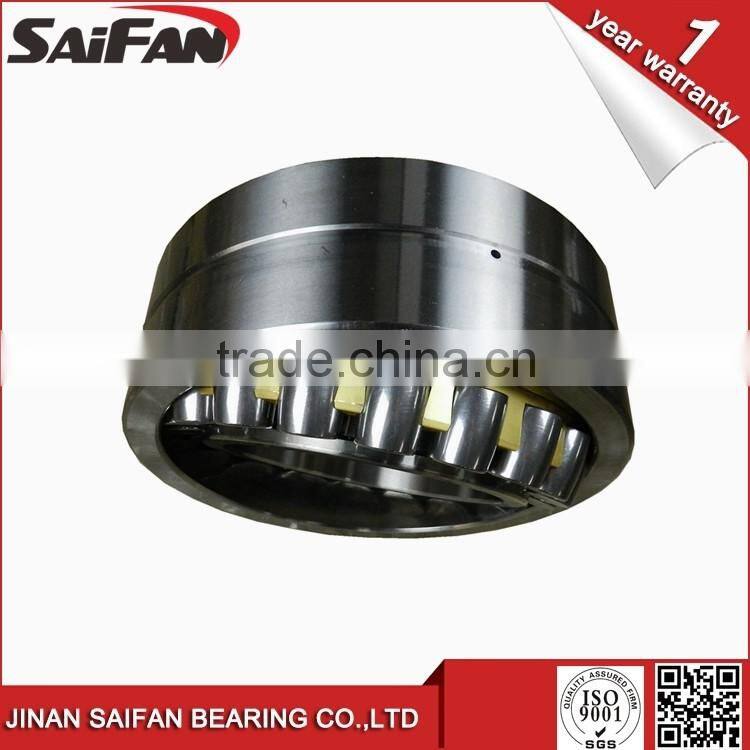

Roller Bearing 24152 CC CA MA MB Photos

1.Specifications:

Spherical Roller Bearing: Bearing 24152 CC CA MA MB

Type: spherical roller bearings,Vibrating Screen Bearing

Bore diameter: 260 mm

Outer diameter: 440 mm

Depth: 180 mm

Basic dynamic load rating: 1290 Kn

Basic static load rating: 1560 Kn

Fatigue load limit: 132 Kn

Reference speed rating: 1700 R/min

Limiting speed rating: 2200 r/min

Weight: 110 KG

2.Application:

Spherical roller bearings for vibratory applications have two window-type hardened steel cages and a floating guide ring between the row of rollers. Larger size bearings d > 70 mm have an outer ring centred guide ring to support and guide the cages. This provides the lowest friction in the bearings.

3.Features:

Spherical roller bearing also known as self-aligning roller bearing. Spherical roller bearings have two rows of rollers. This bearing mainly accommodate the radial load, and can accommodate the axial load from one direction at the same time, but not accommodate the pure axial load. Sherical roller bearings have very good loading capacity, especially for hevey load or vibrational load.
Spherical roller bearing use staming steel cage (the suffixed "E"), glass-fibre reinforced polyamide cage (the suffixed "TVPB") or machined brass cage (the suffixed "M") or stamping steel cage for vibratory applications (the suffixed JPA).
Spherical roller bearings mainly used to papermaking machinery, speed reducer, cruser, etc.

4.Quality&Services:

Vibrating screen is widely applied in industrial sectors as of non-ferrous, ferrous metals, coal and road construction. Panels and Plates for Vibrating Screens can separate mixed material of different kinds into different classes of particle sizes through the combination of single-deck or multi-deck screens, so as to meet the requirements of a certain ore dressing process.vibrator bearing supplier, find best vibrator

find best vibrator bearing supplier on alibaba vibrator 452311cacm2 vibrating bearing for vibration motor .. Spherical Bearing 24152 CC CA MA MB

5. 24152 CC CA MA MB 260*440*180 Catalogue:

Bearings NO.	d/mm	D/mm	B/mm	C/kN	C0/kN	Weight/kg
22348 CC/W33	240	500	155	3100	4000	155
22348 CCJA/W33VA405	240	500	155	3100	4000	155
22348 CCK/W33	240	500	155	3100	4000	150
22348 CCKJA/W33VA405	240	500	155	3100	4000	150
23952 CC/W33	260	360	75	880	1800	23.5
23952 CCK/W33	260	360	75	880	1800	22.5
23052 CC/W33	260	400	104	1600	2550	48.5
23052 CCK/W33	260	400	104	1600	2550	47
24052 CC/W33	260	400	140	2040	3450	65.5
24052 CCK30/W33	260	400	140	2040	3450	64.5
23152 CC/W33	260	440	144	2550	3900	90.5
23152 CCK/W33	260	440	144	2550	3900	87.5
24152 CC/W33	260	440	180	3000	4800	110
24152 CCK30/W33	260	440	180	3000	4800	110
22252 CC/W33	260	480	130	2650	3550	110
22252 CCK/W33	260	480	130	2650	3550	108
23252 CC/W33	260	480	174	3250	4750	140
23252 CCK/W33	260	480	174	3250	4750	135
22352 CC/W33	260	540	165	3550	4550	190
22352 CCK/W33	260	540	165	3550	4550	185
23956 CC/W33	280	380	75	845	1760	25
23956 CCK/W33	280	380	75	845	1760	24
23056 CC/W33	280	420	106	1730	2850	52.5
23056 CCK/W33	280	420	106	1730	2850	51
