Help CenterStep Down Ring
Related Products
Specifications
step down ring1) Fast Delivery
2) Superior Quality
3) Size: Any Size
4) Working Guarantee.
23mm to 400mm Dia covering all indeginous and foreign engines. Any type of rings can be manufactured against samples or drawings.
Crown International Piston Rings are made from high quality Grey C.I. Castings (Individual Casting) with an ideal combination of free and combined carbon to provide prolonged working life. The casting used has a very fine grain to provide high tension even at elevated temperatures of high-speed engines.
Types Of Rings
- Cast Iron Rings : These rings are made from graded Prelatic Cast Iron alloy. Machined to close tolerances as recommended by O.E. (Original Equipment)
- Steel Ring Chrome Plated : These rings are made of high Tensile special steel machined to proper sizes with Chrome plating from 100 to 200 microns as required by the buyers. This is used in Heavy Duty Diesel Engines.
- SG Iron Casted Rings : These rings are made of SG Iron castings and recommended for Heavy Duty Diesel Engines, specially 3 ring design Piston.
Piston rings form the seal between the pressurized side of the piston and the non-pressurized side. Their correct fitment is paramount to prevent blow-by and provide adequate lubrication to the piston. We make available high quality Piston Rings in the market. Piston Ring Sets usually include three kinds of rings - Compression Rings, Scraper Rings and Oil Rings. They have various profiles and coatings (Ceramic, Moly,
Chrome, Phosphating etc.) depending on the application they are installed in. We provide high quality Piston Rings using high grade material to ensure that they stand the test of time. Further, we ensure that the Piston Rings are quality tested on various parameters to assure high reliability.
Karan Exports has been a recognised and reputed name in the Engine Industry for serving the industry with high quality Piston Rings and it has continuously proved its capability to provide efficient combustion and reduced oil consumption in the engines.
Materials:
- Grey Cast Iron (Individual Casting)
- Alloyed Cast Iron
- Spheroidal Graphite Iron (Ductile Rings)
- High Strength Steel
Coatings:
- Perkerisation
- Chrome Plating
- Tin Coating
- Copper Flash
Types

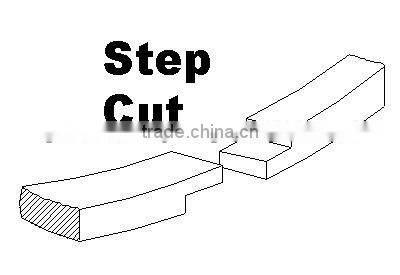

Plain Compression Rings, Scrapper/Napier Rings, Slotted Oil Rings, Hard Chrome Plated Compression & Oil Rings, Taper Faced(Periphery) Rings, Full / Half Keystone Rings, Step Cut Rings, Slant Cut Rings, Lock Type Rings, Spring Loaded Oil Rings (with Helical Coil springs), Profile Grinded Oil Rings, Duaflex Oil Rings, Steel Laminated Segments, 3-Piece Nifflex Oil Rings(various designs), Steel Oil Rings, Bimetal Rings etc.
Quality Commitment
All the Crown Piston Rings produced are passed through stringiest
tests such as :
- Metallurgical analysis
- Dimensional check
- End Gap checking in hard guages
- Hardness Test
- Tangential Load test
- Light Pass Test for Perfect Circularity
- Profile check, Parallelism etc.
Product Range (Please contact us for complete range)
We can develop piston rings as per customer samples and / or drawings. We have developed a large range of piston ring sets for agricultural, heavy duty, automotive, construction and other applications.
KARAN EXPORTS
AN ISO 9001-2008 Certified Co.
AN ISO 6627-2011 Certified Co.
Send Inquiry to This Supplier
