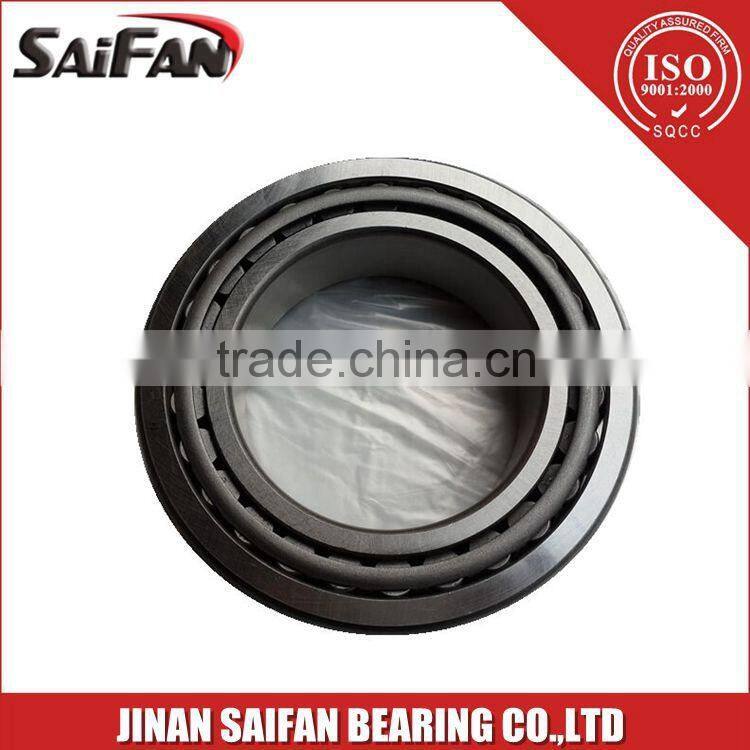

Bearing 32317 KOYO SAIFAN Agricultural Machinery Bearing 32317 KOYO Taper Roller Bearing 32317

Brand Name

KOYO SAIFAN Roller Bearing 32317 or according to your requirement

Item Name

Bearing 32317 KOYO SAIFAN Agricultural Machinery Bearing 32317 KOYO Taper Roller Bearing 32317

Bearing Sizes

85*180*64mm

Bearing Weight

7.33kg

Material

Chrome Steel/Gcr15/Carbon Steel

Application

Auto, tractor, machine tool, electric   machine, water pump, agricultural machinery, textile machinery and so on

Clearance

C0,C2,C3,C4,C5

Bore Size

85mm                 Outer Diameter : 180mm

Cage Type

Brass;steel plate,nylon,aluminium alloy etc.

Bearing Package

Pallet,wooden case,commercial packaging or as customers' requirement.

Price terms

FOB,CFR,CIF,EXW

Delivery Time

3-5 days acccording the quantity

Advantage

High precision, high speed, long life, high reliability, heavy load and high temperature resistance

Service

We set the customers’ need as our first consideration. From quotation to the final packing and transport, we provide the quickest and most satisfactory services to every customer

Bearing No.

Boundary dimensions

Basic load rating(kN)

Mass

mm

Dynamic

Static

Kg

d

D

B

C

Cr

Cor

≈

32303 Bearing

17

47

19

16

35.4

36.6

0.174

32304 Bearing

20

52

21

18

42.7

46.4

0.231

32305 Bearing

25

62

24

20

61.7

68.9

0.367

32306 Bearing

30

72

27

23

81.7

97.6

0.56

32307 Bearing

35

80

31

25

99.1

119

0.77

32308 Bearing

40

90

33

27

115

149

1.05

32309 Bearing

45

100

36

30

145

191

1.4

32310 Bearing

50

110

40

33

177

239

1.89

32311 Bearing

55

120

43

35

203

274

2.37

32312 Bearing

60

130

46

37

226

306

2.9

32313 Bearing

65

140

48

39

259

353

3.51

32314 Bearing

70

150

51

42

298

413

4.35

32315 Bearing

75

160

55

45

346

488

5.34

32316 Bearing

80

170

58

48

387

549

6.38

32317 Bearing

85

180

60

49

421

599

7.3

32318 Bearing

90

190

64

53

477

690

8.78

32319 Bearing

95

200

67

55

515

745

10.7

32320 Bearing

100

215

73

60

572

780

3

32321 Bearing

105

225

77

63

646

955

14.5

32322 Bearing

110

240

80

65

722

1070

17.8

32324 Bearing

120

260

86

69

824

1240

21.7

32334 Bearing

170

360

120

100

1300

1760

59.5

 SOLUTION

– At the beginning, we will have a communication with our customers on their demand, then our  engineers will work out an optimum solution based on the customers’ demand and condition.
PRODUCTION

– Running in accordance with ISO 9001 quality system, the advanced production equipments,  sophisticated processing technology, strict quality management system, skilled workers and innovative technical team, make our bearings in continuous quality improvement & technology development.
QUALITY CONTROL (Q/C)

- In accordance with ISO standards, we have professional Q/C staff, precision testing instruments and internal inspection system, the quality control is implemented in every process from material receiving to products packaging to ensure our bearings quality.
PACKAGE

– Standardized export packing and environment-protected packing material are used for our bearings, the custom boxes, labels, barcodes etc. can also be provided according to our customer’s request.
LOGISTIC

 – Normally, our bearings will be sent to the customers by ocean transportation due to its heavy weight, airfreight, express is also available if our customers need.
WARRANTY

– We warrant our bearings to be free from defects in material and workmanship for a 12 months period from the shipping date, this warranty is voided by non-recommended use, improper installation or physical damage.

High Quality Bearings, Choose Saifan.
Jinan Saifan Bearing Co., Ltd is a professional bearing manufacture located in Jinan, Shandong.

We are established in year 2005 and we have 10 years experience in bearing manufacture.
We mainly produce wheel hub bearings, ball bearings, roller bearings etc.



Q:What’s your after-sales service and warranty?

A: We promise to bear the following responsibility when defective product is found:

1.12 months warranty from the first day of receiving goods;

2. Replacements would be sent with goods of your next order;

3. Refund for defective products if customers require.

Q:Do you accept ODM&OEM orders?

A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize housings in different styles, and sizes in different brands, we also customize circuit board & packaging box as per your requirements.

Q:What’s the MOQ?

A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.

Q:How long is the lead time?

A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.

Q:Do you offer free samples?

A: Yes we offer free samples to distributors and wholesalers, however customers should bear freight.

 We DO NOT offer free samples to end users.

Q:How to place orders?

A: 1. Email us the model, brand and quantity, consignee information, shipping way and payment terms;

2. Proforma Invoice made and sent to you;

3. Complete Payment after confirming the PI;

4. Confirm Payment and arrange production.
