Low Price Band Saw Blade Welding Machine
- QingDao
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | weier | Model Number | ZX7--250G | |
| Arc Current | 9.2A | Pulse Frequency | 20~40KHz | |
| Pilot Arc Current | 20-250A | Rated Duty Cycle | 40% | |
| Motor Type | DC Motor | Dimensions | 340*140*270mm | |
| Usage | Suite for all kind of basic welding rod | Voltage | 220V | |
| Certification | CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
IGBT Inverter welding machine1. Light & Portable
2. duty cycle 60%
3. 4mm rod continuous welding
4. High welding qualit
Low price band saw blade welding machine
Product features:
1, Advanced single switch IGBT inverter technology, frequency of 20~40KHz, reduce the volume and weight of the welding machine;
2.Auxiliary power supply design shop leading, make the welding machine power supply using a wider range;
3, Advanced control scheme, significantly enhance the welding performance, more to meet the requirement of welding process;
4, It can be widely used for welding of various acid, alkaline electrode;
5, It is easy to arc, little splash, stable current, good forming characteristics;
6, Adjustable hot arc function, improve the performance of arc welding machine;
7, Adaptive and thrust current mode, significantly enhance the welder performance in the extended when welding,can realize remote welding, can be equipped with a wireless remote control, the remote welding more convenient;
8, It have two kinds of steep and inclined drop characteristics to choose, to meet different customer needs;
9, ZX7315GS has the double function of voltage (phase 220V, phase 380V), suitable for rural areas, factories,convenient voltage selection.
Product parameters:

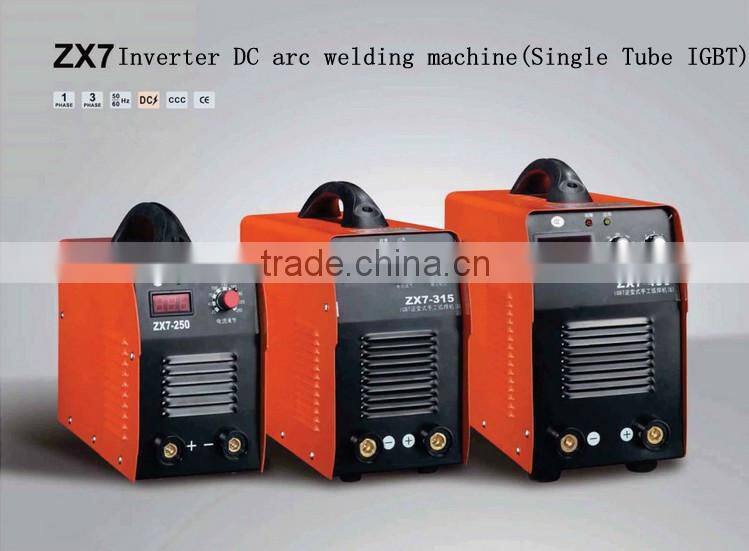

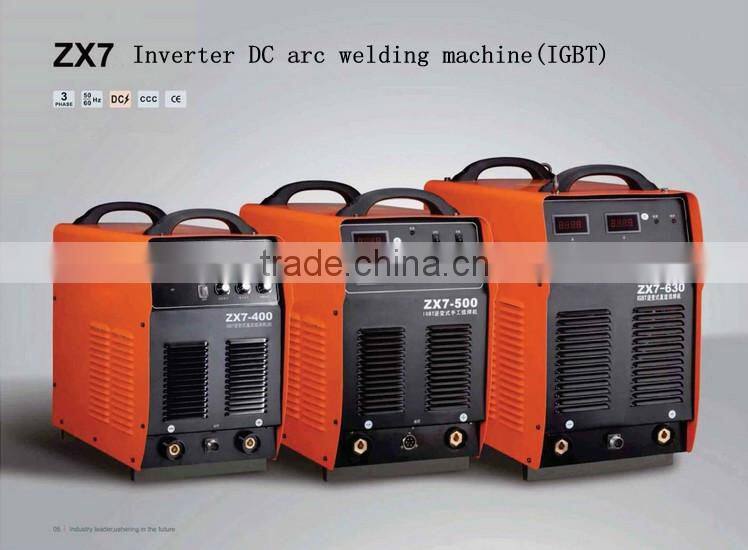

Inverter DC arc welding machine(Single Tube IGBT) | ||||||
ZX7-200G* | ZX7-250G* | ZX7-315GS | ZX7-315G* | ZX7-400G* | ZX7-500G | |
Rated Output current(A) | 32 | 42 | 42 | 20 | 27 | 38 |
Rated Input Power(KVA) | 7 | 9.2 | 9.2 | 13 | 18 | 25 |
The no-load voltage(V) | 63 | 63 | 70 | 70 | 70 | 75 |
Output current regulation(A) | 20-200 | 20-250 | 0-250 | 0-315 | 20-400 | 20-500 |
Rated working voltage(V) | 28 | 30 | 30 | 32.6 | 36 | 40 |
Thrust regulation(A) | - | - | 0-100 | 0-100 | 0-100 | 0-100 |
Continuous load rate(%) | 40 | 40 | 60 | 60 | 60 | 60 |
Efficiency(%) | 85 | 85 | 85 | 85 | 85 | 85 |
Power factor | 0.93 | 0.93 | 0.93 | 0.93 | 0.93 | 0.93 |
Net weight(KG) | 5.6 | 6.54 | 13.6 | 13.3 | 21 | 27.6 |
Size and shape(MM) | 340*140*215 | 340*140*270 | 480*200*390 | 480*200*390 | 530*270*465 | 530*270*465 |
Rated input voltage(V) | Single-phase AC220V±15% | Single-phase AC380V±15% | Three-phase AC380V±15% | |||
