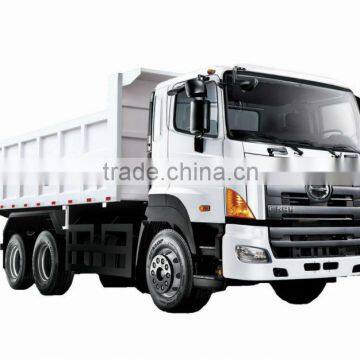

HINO 6x4 Dump Truck 350PS

Name: HINO 6x4 Dump Truck 350PS
Brand: HINO
Availability: InStock

FOB Price

US$ 62,000 - 69,990 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.Fashion design
2.New technology and stable performance
3.P11C-UJ Engine
4.CCC, ISO9001
5.Low fuel consumption

HINO 6x4 dump truck 350PS

Model	YC3250FS2PK	YC3250FS2PM
Driving type	6×4	6×4
Total weight	25000kgs	25000kgs
Overall dimension LWH	785024953270MM	842024953270mm
inside breast board size of Cargo (LWH)	520022501300mm	560022501200mm/can with cover
Wheelbase	3300mm+1410mm	3640mm+1410mm
Front/rear tread	2060/1855mm	2060/1855mm

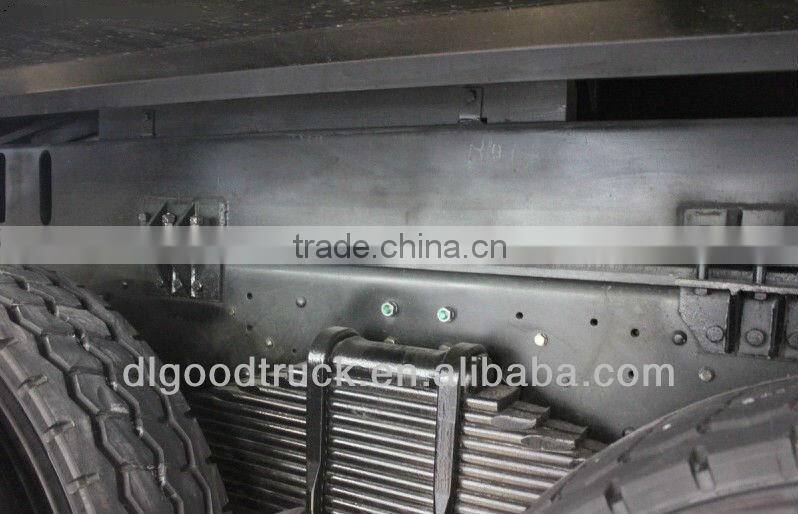

Front suspension /rear suspension	1410mm/1730mm	1410mm/1960mm
approach angle /departure angle	≥20/≥30	≥20/≥20
Min. ground clearance	≥220mm	≥220mm
Min. turning radius	≤16	≤17
curb weight	12000kgs, 12200kg(with closed top cover)	12200kgs, 12400kg(with closed top cover)
MAX.Travel speed	≥90km/h	≥90km/h
Cargo lift time(unload)	≤20s	≤20s
Cargo fall time(unload)	≤20s	≤20s
Max. lift angle	≥45°±2°	≥45°±2°
Engine	P11C-UJ/(350)259kw/2900rpm	P11C-UJ/(350)259kw/2900rpm
Max.torque	1454Nm/1100rpm	1454Nm/1100rpm
Displacement	10.52L	10.52L
Clutch	DSF-430, dry,single	DSF-430, dry,single
Gear box	RT-11509C/DC12J150T	RT-11509C/DC12J150T

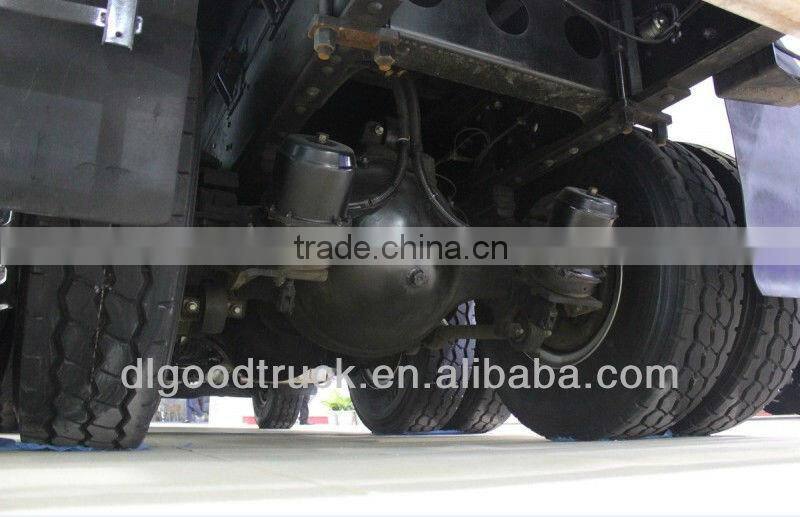

Axle	Guangqi Hino axle

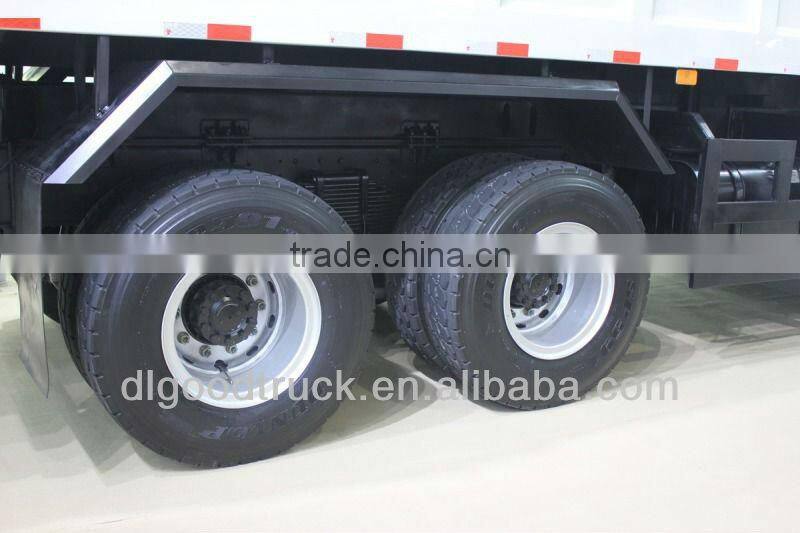

Tires	11.00R20, 11.00-20,295/80R22.5
Emission	GB17691-2005(Euro III)	GB17691-2005(Euro III)

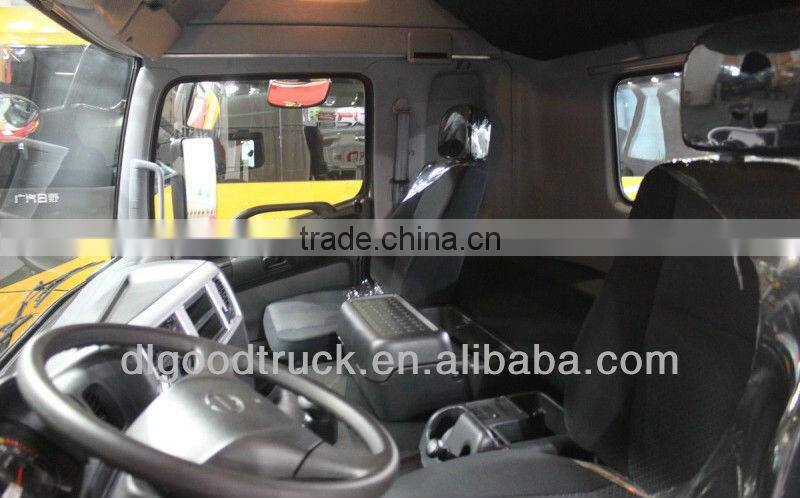

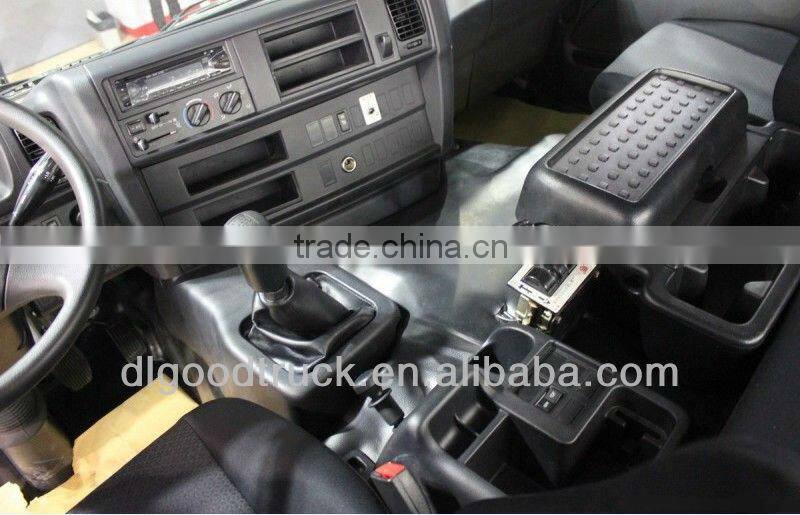

Driver cab	Four full floating, electrically controlled hydraulic reversible cab

If need more information ,please feel free to contact me.

Welcome to visit our company in China!
