Home > Products > Gas Station Hose > High Pressure Oil Resistant 1/4 Gas Station Hose
High Pressure Oil Resistant 1/4 Gas Station Hose
- Xingang Port
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | YATAI | |
| Model Number | 6-102mm |
Product Description

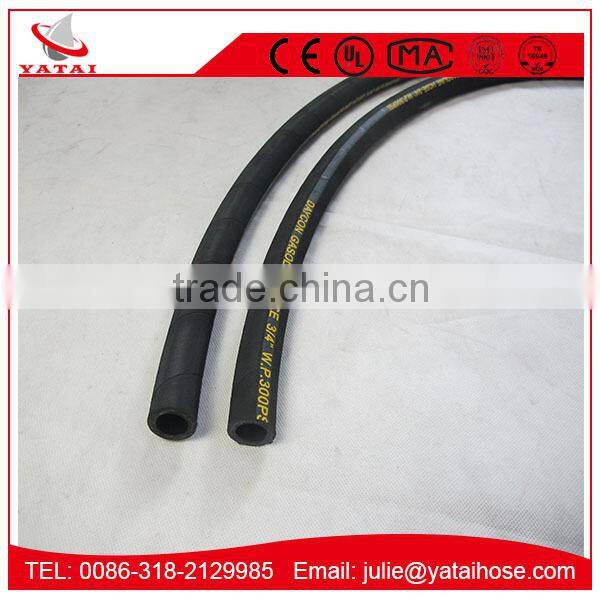

High Working Pressure Oil Resistant Gas station Hose
Ideally Suited for High Pressure Hydraulic Oil Lines, Return Lines, Grease Lines, Water Lines and Power Steering Hoses
Rubber Hose Tube: Oil resistant Synthetic Rubber
Rubber Hose Reinforcement: High Tensile Steel Wire
Rubber Hose Cover: Abrasion, Ozone & Weather resistant Synthetic Rubber.
Working Temperature range: -40 °c to 121 °c.
SINGLE WIRE BRAIDED HOSES (SAE 100R1AT DIN EN 853 1SN)
DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | m | |
5 | 3/16 | 4.8 | 9.5 | 11.8 | 25.0 | 3630 | 100 | 14280 | 89 | 0.19 | 50/100 |
6 | 1/4 | 6.4 | 11.1 | 13.4 | 22.5 | 3270 | 90 | 12840 | 102 | 0.21 | 50/100 |
8 | 5/16 | 7.9 | 12.7 | 15.0 | 21.5 | 3120 | 85 | 12280 | 114 | 0.24 | 50/100 |
10 | 3/8 | 9.5 | 15.1 | 17.4 | 18.0 | 2615 | 72 | 10280 | 127 | 0.33 | 50/100 |
13 | 1/2 | 12.7 | 18.3 | 20.6 | 16.0 | 2320 | 64 | 9180 | 178 | 0.41 | 50/100 |
16 | 5/8 | 15.9 | 21.4 | 23.7 | 13.0 | 1890 | 52 | 7420 | 203 | 0.45 | 50/100 |
19 | 3/4 | 19.0 | 25.4 | 27.7 | 10.5 | 1530 | 42 | 6000 | 241 | 0.58 | 50/100 |
25 | 1 | 25.4 | 33.3 | 35.6 | 8.8 | 1280 | 35.0 | 5020 | 305 | 0.88 | 50 |
32 | 1 1/4 | 31.8 | 40.5 | 43.5 | 6.3 | 920 | 25.0 | 3600 | 419 | 1.23 | 20/40 |
38 | 1 1/2 | 38.1 | 46.8 | 50.6 | 5.0 | 730 | 20.0 | 2860 | 508 | 1.51 | 20/40 |
51 | 2 | 50.8 | 60.2 | 64.0 | 4.0 | 580 | 16.0 | 2280 | 635 | 1.97 | 20/40 |
TWO WIRE BRAIDED HOSE(SAE 100 R2AT DIN EN 853 2SN)
DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | m | |
5 | 3/16 | 4.8 | 11.1 | 14.1 | 41.4 | 6000 | 160 | 23720 | 89 | 0.32 | 50/100 |
6 | 1/4 | 6.4 | 12.7 | 15.7 | 40 | 5800 | 160 | 22840 | 102 | 0.36 | 50/100 |
8 | 5/16 | 7.9 | 14.3 | 17.3 | 36 | 5250 | 140 | 20000 | 114 | 0.45 | 50/100 |
10 | 3/8 | 9.5 | 16.7 | 19.7 | 33.1 | 4800 | 132 | 18840 | 127 | 0.54 | 50/100 |
13 | 1/2 | 12.7 | 19.8 | 23.1 | 27.6 | 4000 | 110 | 15720 | 178 | 0.68 | 50/100 |
16 | 5/8 | 15.9 | 23 | 26.3 | 25 | 3630 | 100 | 14280 | 203 | 0.8 | 50/100 |
19 | 3/4 | 19.0 | 27 | 30.2 | 21.5 | 3120 | 85 | 12280 | 241 | 0.94 | 50/100 |
25 | 1 | 25.4 | 34.9 | 38.9 | 16.5 | 2400 | 65 | 9420 | 305 | 1.35 | 50 |
32 | 1 1/4 | 31.8 | 44.5 | 49.6 | 12.5 | 1820 | 50 | 7140 | 419 | 2.15 | 20/40 |
38 | 1 1/2 | 38.1 | 50.8 | 56.0 | 9 | 1310 | 36 | 5140 | 508 | 2.65 | 20/40 |
51 | 2 | 50.8 | 63.5 | 68.6 | 8 | 1160 | 32 | 4560 | 635 | 3.42 | 20/40 |
Gas station Hose Processing Procedures:
Gas station Hose Related Products:
Gas station Hose Equipment:

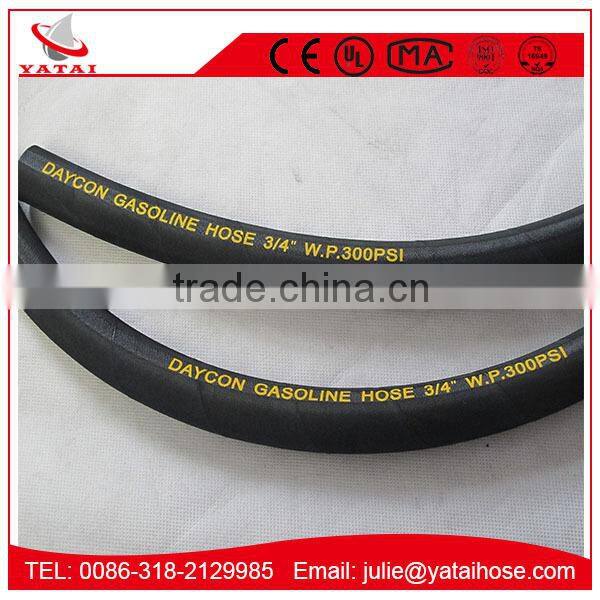

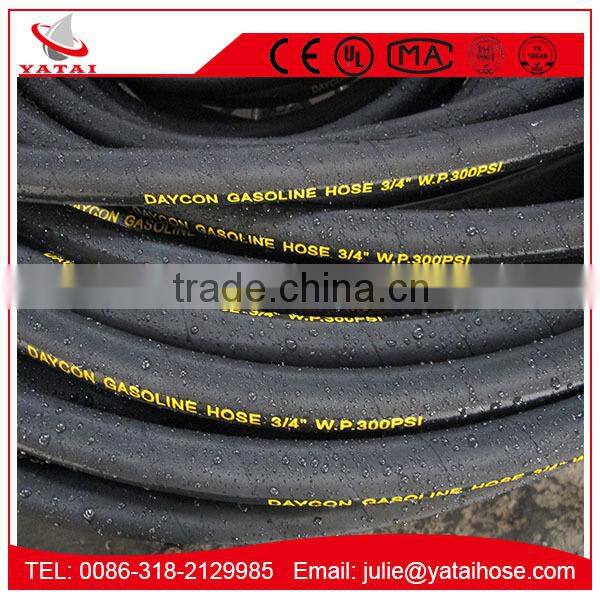

Gas station Hose Pictures:
Gas station Hose Certificate:
Gas station Hose Raw Material :
High Pressure Oil Resistant Gas station Hose
HENGSHUI YATAI ESPECIAL RUBBER PRODUCTS CO.,LTD is established in 2001 year.
HIGH QUALITY IS OUR COMPANY SOUL!!!
we specialized in rubber hoses for more than 15 years, there are near 100 workers and
technology staff .10 person with many years experience.
Italy VP high speed braided machine of 6 sets improve production capacity and quality .
Main Product Type | Product Details |
Hydraulic Hose and Fitting | Steel Wire Braided Reinforcement Hose(R1 R2 1SN 2SN 1SC 2SC R16 R17) |
Steel Wire Spiral Reinforcement Hose (2SP 4SP 4SH 6SP R9 R12 R13 R15) | |
Fabric Braided Covered Hose(R5) | |
Acid and Alkali Resistant Rubber Hose | |
Air Screw Compressor Hose | |
Fabric Reinforcement Hose(R3 R6 1TE 2TE 3TE) | |
Thermoplastic Hose(R7 R8) | |
Nylon Hose(Single and Double Hose) | |
Industrial Hose | Air/Water/Oil/Fuel/Steam/Chemical Suction and Discharge Hose |
Special Hose | Concrete Hose, Drilling Hose, Inflatable Packer |
Machine Equipment | Crimping Machine, Cutting Machine |
Gas station Hose Exhibition:
Our Factory:
Welcome to inquiry for Gas station Hose.
