Polystyrene Foam EPS Panel With 20 Microns High Antirust Coating Steel Surface
- Tianjin port China
- T/T
You May Like
-
PIR Insulated Fireproof Sandwich Panel for Wall With 40 Kg/m3 Density
-
PPGI / PPGL Steel Surface Hollow Mgo Board Inside for Wall / Ceiling of Cleanroom
-
Hollow Mgo Board Sandwich Panel 10mm Width Gap PPGI Steel Surface
-
950mm Width Sound Acoustic Wall Panel With Tongue-groove Joint
-
Acoustic Wool Panel With PE Painted Galvanized Steel Surface
-
Prefabricated Production Workshop / Storage Warehouse
Product Details
| Place of Origin | Hebei, China | Brand Name | WZH group | |
| Model Number | YX960/ YX950/ YX1150 | Panel Material | Metal | |
| Type | EPS Sandwich Panels |
Product Description

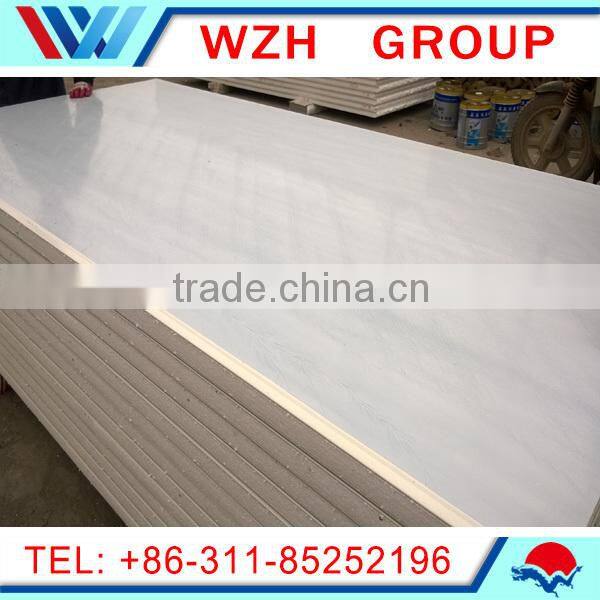

Polystyrene foam EPS panel with 20 microns high antirust coating steel surface
Specification
Roof panel /wall panel / sandwich panel / eps panel | ||
Type | color steel foam sandwich panel (overlap joint) | |
Dimensions | Total thickness | 50-200mm |
Width | 950/960mm (effective width) | |
Length | Max. 11.8m | |
External side | Material | PPGI /PPGL |
Thickness | 0.2-0.6mm | |
Corrosion protection | Galvanized/ Galvalume | |
Coating | Polyester | |
Color | According to the RAL | |
Pattern | Flat / ribbed | |
Insulation | Optional foam Material | EPS |
Thickness | 50-200mm | |
Density | 8-20kg/m3 | |
Thermal conductivity | 0.02~0.03w/mk | |
Internal side | Material | PPGI /PPGL |
thickness | 0.2-0.6mm | |
Corrosion protection | Galvanized / Galvalume | |
Coating | Polyester | |
Thickness of coating | 5--8micron | |
Pattern | Flat / ribbed | |
Features
1. Light weight: Save cost
2. Easy installation
3. Safety: Fire-proof materials
4. Good sound insulation
5. Meet specials designs due to it is easy to form and cut
Application
Workshop, temporary office/buiding, stadium, villa, movable building, guard room, booth, steel structure plant /factory, etc.
1. EPS roof panel (YX960 )
2. EPS wall panel (YX950 / YX 1150 models)
( With side steel / punched steel / one side steel / both sides steel)

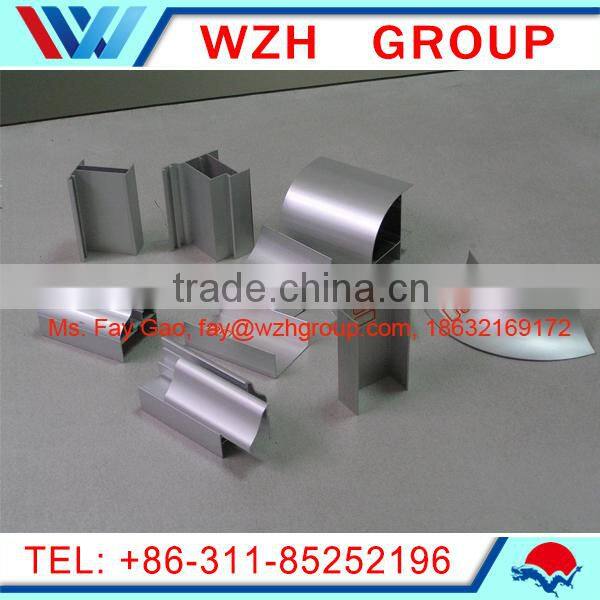

3. Aluminum accessories
( Two type: Aluminum / Powder-coated in color)
( C channel / T / H section / Angle / Round corner / Door frame/ Window frame, etc.)
4. Accessories ( Flashing / Trim / corner / ridge / C channel, etc.)
5. Doors ( Swing door / sliding door / emergency door / steel door )
Packing covered with black film, easy peel-off
1) With steel pallet ( easy unloading, better protection)
2) Without steel pallet ( More loading qty)
Other products available:
Sandwich panel: rock wool sandwich panel / glasswool sandwich panel / PU panel;
Steel structure buildings(warehouse/workshop/factory/plant)
Prefab house/home
Corrugated steel sheets
Established in 2001, Weizhengheng Group covers an area of over 48,000 sq.m., with more than 1,000 employees from 9 subsidiary companies together with offices.
Shijiazhuang Weizhengheng Light Steel Color Plate Co., Ltd
Weizhengheng Steel Structure Engineering Co., Ltd
Beijing Weizhengheng Metal Structure Engineering Co., Ltd
Shenyang Tianying Light Steel Color Plate Co., Ltd
Hulun Buir Weizhengheng Light Steel Color Plate Co., Ltd
Ulanhot Weizhengheng Light Steel Color Plate Co., Ltd
Shandong Office
Manzhouli Office
Uganda Office
Our company is mainly engaged in production of various of steel coils, corrugated color steel sheets and sandwich panels, as well as large-scale steel structure design, production and installation.

2010 Big Five in Dubai
2011 Big Five in Dubai
2011 Mosbuild in Russia
2012 Usinagem in Brazil
2013 China Building & PMV Fair Jordan
2013 THABS in South Africa
2014 Ashgabat Exhibition in Turkmenistan
2014 THABS in South Africa
2010/2011/2012/2013/2014/2015 Canton Fair
To be continued...
1. American continental: USA, Haiti,Costa Rica, Ecuador, the republic of Dominica,Chili, Argentina,etc.
2. Oceania: Australia, New Zeland
3. Asia: Vietnam,Singapore, Myanmar, Malaysia, Indonisia, Philippines,India, Yemen, UAE, Turkmenistan, Iran,Japan, Mongolia, etc.
4. Africa: Egypt, South Sudan, Benin, Angola, Algeria, Ethiopia, Congo, Ivory Coast, Madagascar, Tanzania, Equatorial Guinea, Gabon, Mauritius, Seychelles, Ghana, Cameroon, Douala, Guinea Bissau, Zambia, Cape Verde, etc.
5. Europe: Russia, the republic of Belarus, Germany, Sweden, etc.
1. MOQ?
Usually 300 meters. For less qty.
Pls contact with salesperson if it is possible to produce with current mass production.
2. Package?
Both sides black thick film covered for protection of goods surface.
EPS thin sheet at bottom.
Steel pallet available, if client requires. With steel pallet, unloading would be easy.
3. Basic info. for a quick quote?
a. Steel sheet thickness/panel thickness/ steel sheet thickness
b. Max. length
c. Qty
4. Loading container qty?
Pls contact salesperson as per client's length & qty.
