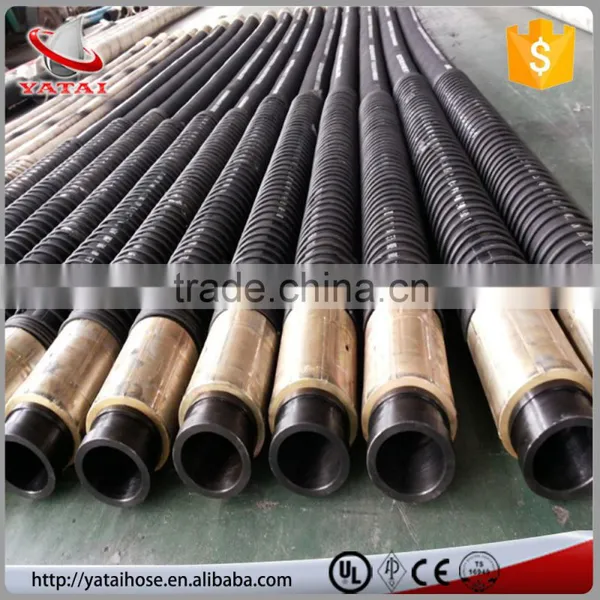

Concrete Delivery Pipe Concrete Pump Parts
WHAT IS THE PRODUCT DETAIL INFORMATION?
Structure: tube, reinforcement and cover.
-
Tube: resistant to abrasion synthetic rubber, principally chloroprene rubber.
Reinforcement: multiple layers of high tensile steel wires.
- Cover: resistant to abrasion, weather, ozone and corrosion synthetic rubber, mainly chloroprene rubber.
- Temperature range: -30°C to +80°C.
- Inner diameter: 1-1/2" to 8" (38mm to 204mm).
- Working pressure: 85 bar.
- Burst pressure: 200 bar.
- Bend radius: 200mm to 570mm.
Type |
I.D (mm) |
O.D (mm) |
Working pressure (bar) |
Burst pressure (bar) |
Min ben radius (mm) |
Weight (kg/m) |
2 |
51 |
68±1.5 |
85 |
200 |
200 |
2.8 |
2.5 |
64 |
85±1.5 |
85 |
200 |
250 |
4.0 |
3 |
76 |
102±1.5 |
85 |
200 |
270 |
6.0 |
3.5 |
89 |
116±1.5 |
85 |
200 |
290 |
7.5 |
4 |
102 |
130±1.75 |
85 |
200 |
300 |
9.2 |
5 |
127 |
158±2 |
85 |
200 |
360 |
11.7 |
6 |
152 |
186±2 |
85 |
200 |
570 |
17.0 |
Concrete Delivery Pipe Concrete Pump Parts is mainly used to transfer highly abrasive materials, such as concrete, cement and plaster in many large projects, such as building, bridge, tunnel, beam and swimming pool.
WHY CHOOSE US?
Our advantage:
- The tube of Concrete Delivery Pipe Concrete Pump Parts is made from high quality chloroprene rubber, which has excellent abrasion resistance.
- The reinforcement of Concrete Delivery Pipe Concrete Pump Parts is made from multiple layers of high tensile steel wires, and the steel wires we use meet international standard.
- The connectors of Concrete Delivery Pipe Concrete Pump Parts are treated with carburization, making the abrasion resistance performance improve greatly.
- The connections between connectors and hoses are very smooth, no steps.
- Free Sample is avaliable
- Shotcrete hose Fitting can be offer
- Certification:ISO,CCS

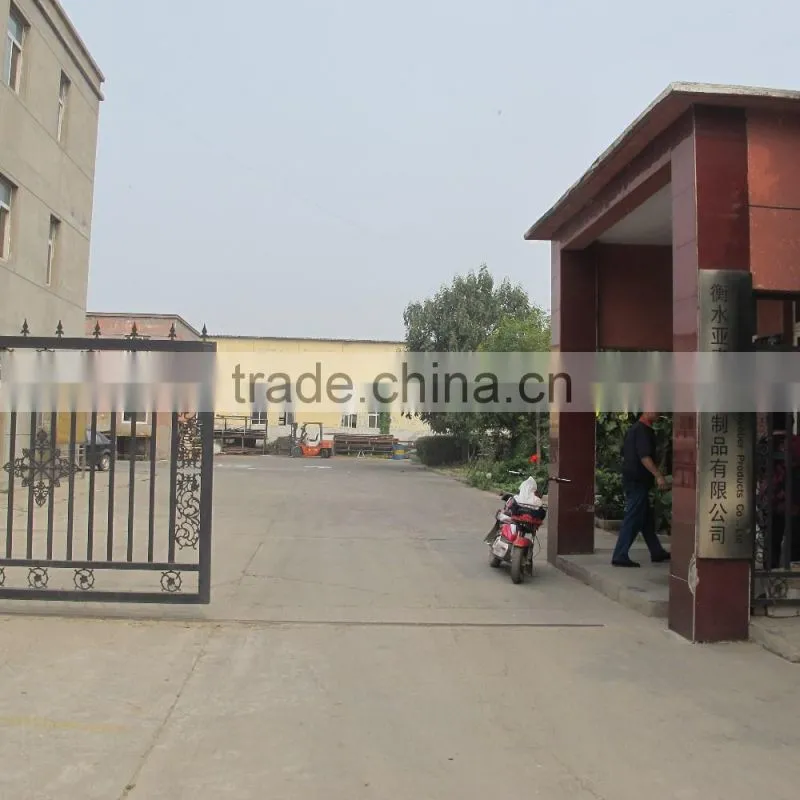

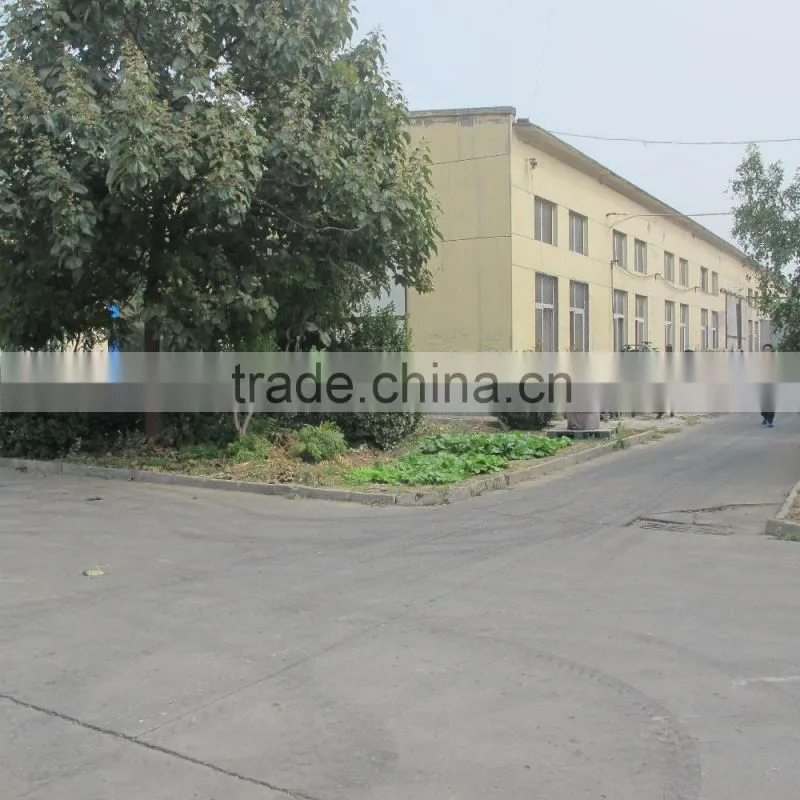

Our Factory:

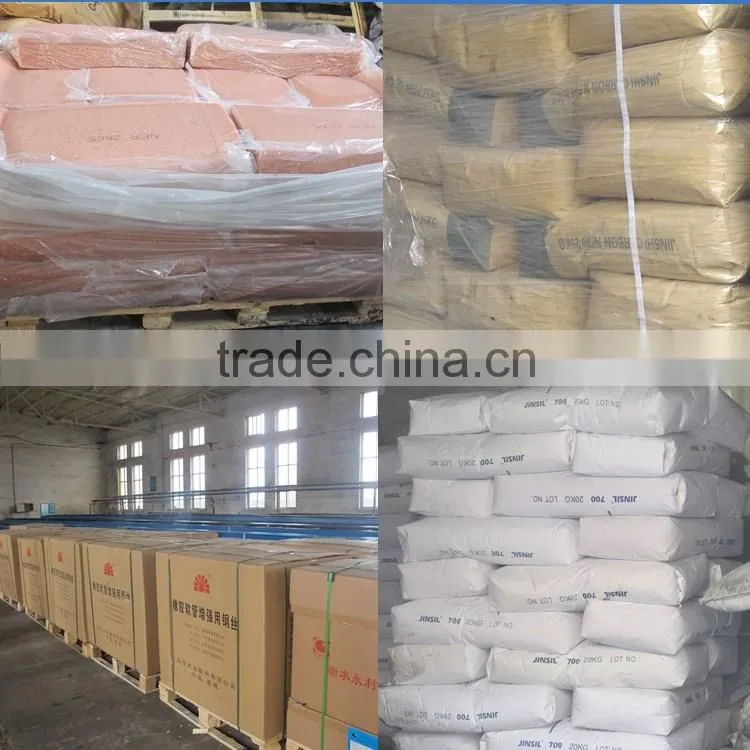

Concrete Pump Hose Material:

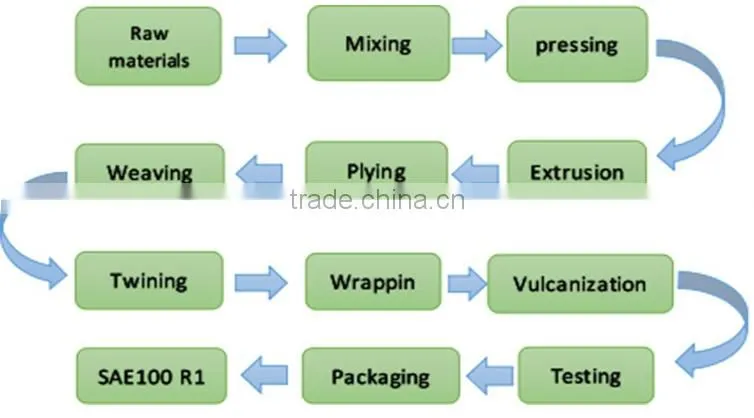

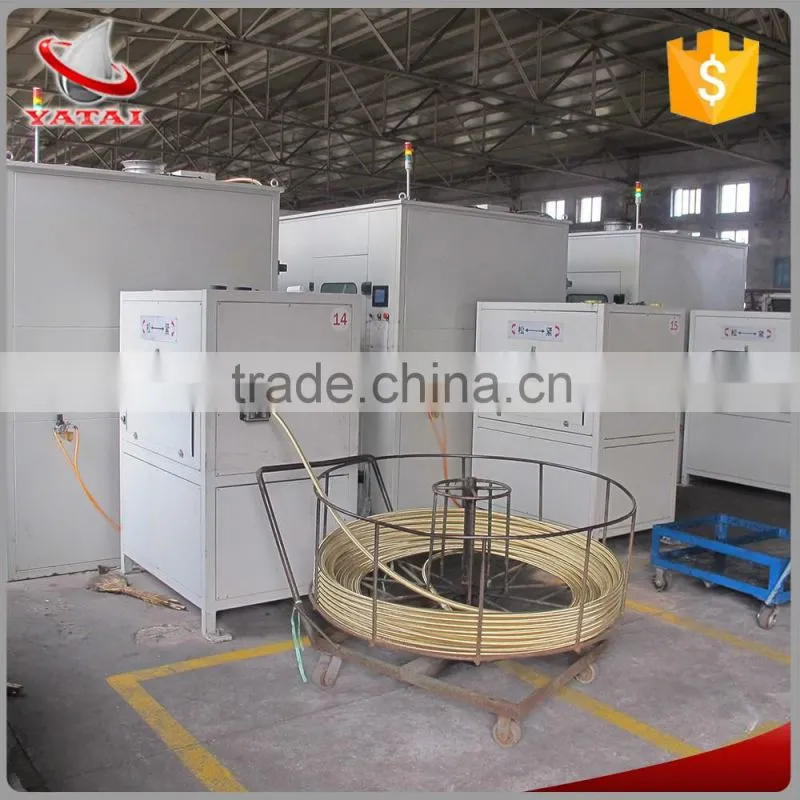

Concrete Pump hose Processing Procedures:
Exhibition and Visit factory:
Q1:Payment Term:
A:Usually, 30%T/T in advanced, balance be paid against scan copy of B/L within 7 days for Concrete Delivery Pipe Concrete Pump Parts
Q2: How many do you accept for min order?
A:Yes. only for 20m min order.
Q3:Can you produce the hose with our own brand?
A:Yes.it is available for Concrete Delivery Pipe Concrete Pump Parts
Q4:What is the warrantee period?
There is 1 year warranty from date of EX-factory
OEM Service is available.
We will reply you within 24 Hours.
