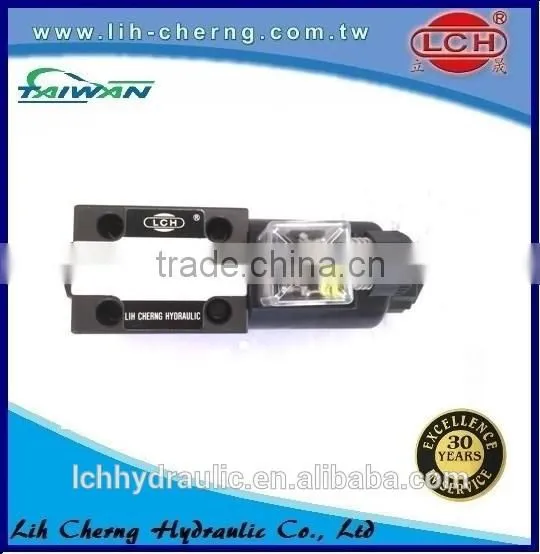

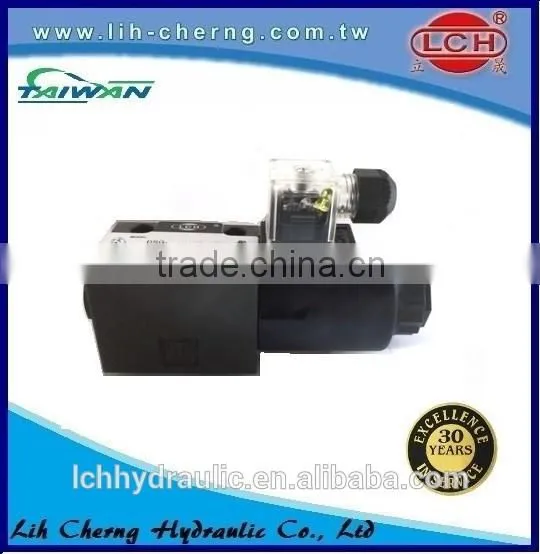

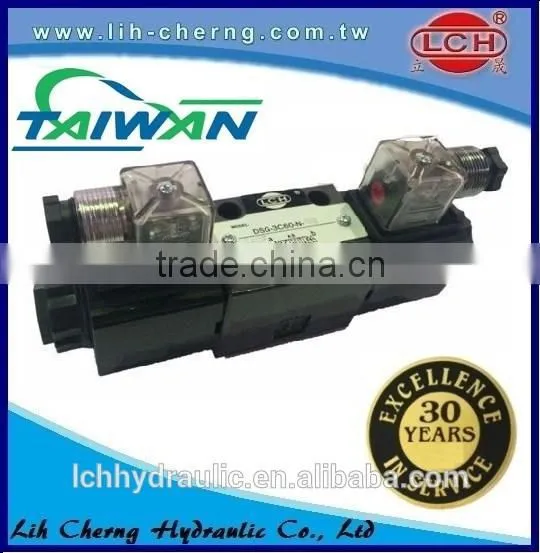

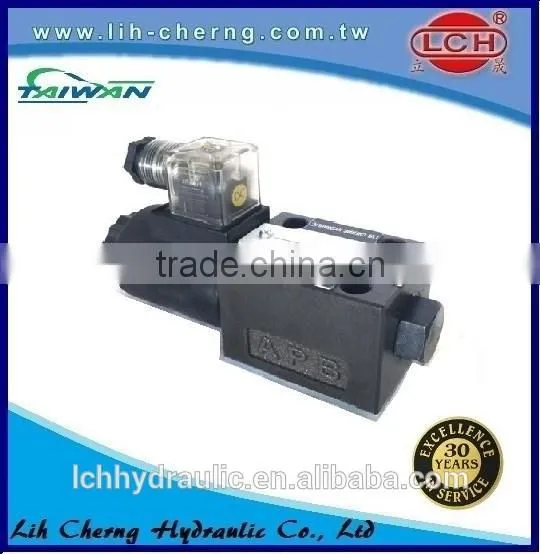

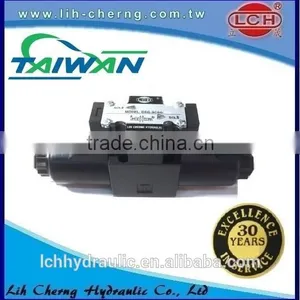

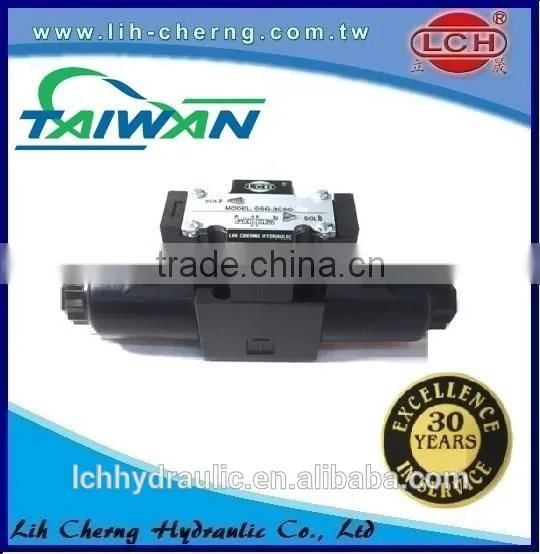

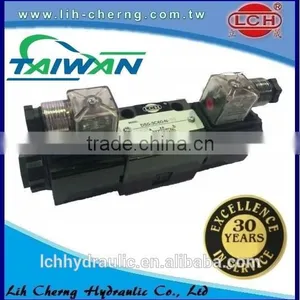

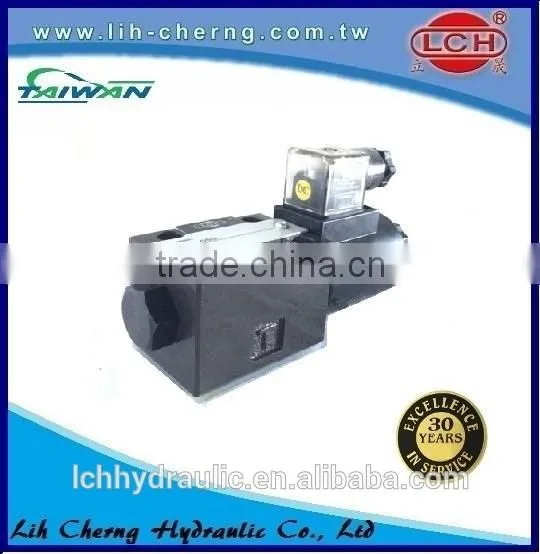

Rexroth 4WE6 of 4WE6A,4WE6B,4WE6C,4WE6D,4WE6E,4WE6F,4WE6J,4WE6H,4WE6G,4WE6L,4WE6M,4WE6P,4WE6Q,4WE6Y hydraulic solenoid valve

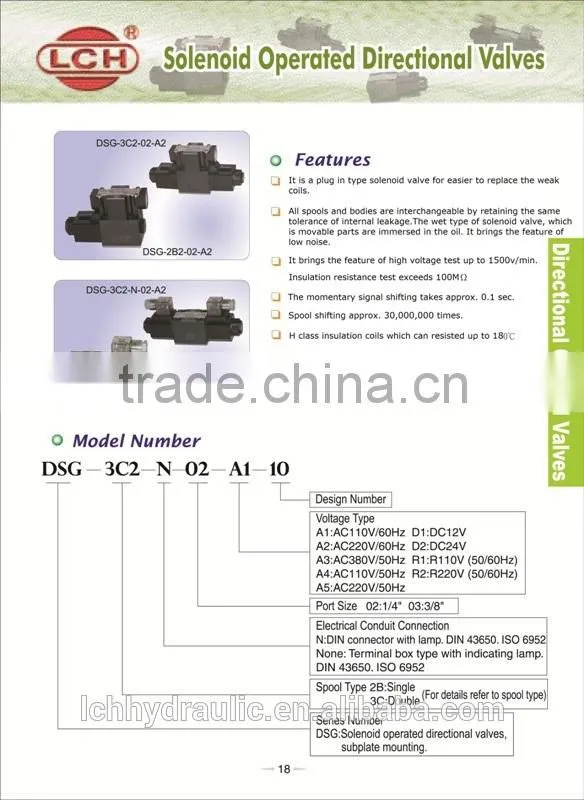

Features:
Solenoid Operated Directional Valve is a plug in type solenoid valve for easier to replace the weak coils.
All spools and bodies are interchangeable by retaining the same tolerance of internal leakage.
The wet type of solenoid valve, which is movable parts are immersed in the oil. It brings the feature of low noise.
It brings the feature of high voltage test up to 1500v/min.
Insulation resistance test exceeds 100MΩ
The momentary signal shifting takes approx. 0.1 sec.
Spool shifting approx. 30,000,000 times
H class insulation coils which can resisted up to 180°C
Model Number:
DSG |
3C2 |
N |
02 |
A1 |
Series Number |

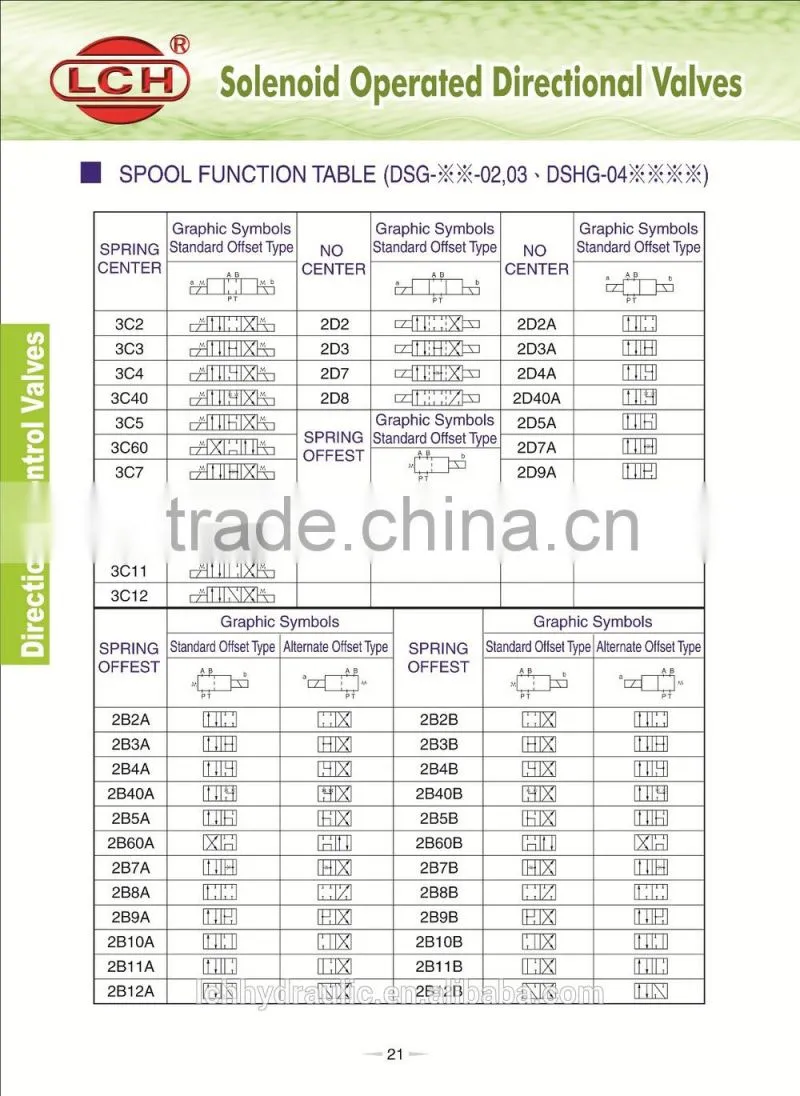

Spool Type |
Electrical Conduit Connection |
Port Size |
Voltage Type |
DSG: Solenoid operated directional control valves, sub plate mounting. |
2B: Single 3C: Double (For details refer to spool type) |
N: DIN connector with lamp. DIN 4350. ISO 6952 None: Terminal box type with indicating lamp. DIN 43650. ISO 6952 |
02:1/4” 03:3/8” |
A1: AC110V/60Hz A2:AC220V/60Hz A3:AC380V/50Hz A4:AC110V/50Hz A5:AC220V/50Hz D1:DC12V D2:DC24V |
Related products:
Company History:
Product process:
Q.How to request a manufacturing quote from LCH?
A.Give us a call or send us an E-mail (lch at .tw) with your purchase request.
Q.What are your quality control procedures?
A.LCH is equpped with high-tech, advaned cmputerized and self-inspection machineries, manufactures thousands of different parts in house to ensure the built-in quality and dependable performance. This is the reason hy LCH is recognized as on the world class quality level.
Q.How are orders packed and shipped?
A. Depends on customers' orders. All goods are packed with a plastic bag with an outer carton and a wooden pallet( fumigatation).
Q. Could LCH offer OEM service?
A.Yes. LCH is able to offer OEM with customers' brand name and trademark onto the product.
Q.Do LCH products come with a warranty?
A.Yes.LCH offer 1-year product life guarantee without abusive usage on all purchases which begins with the bill of lading.
